144B3794
Part Number: 144B3794
Product Information
Extended Description

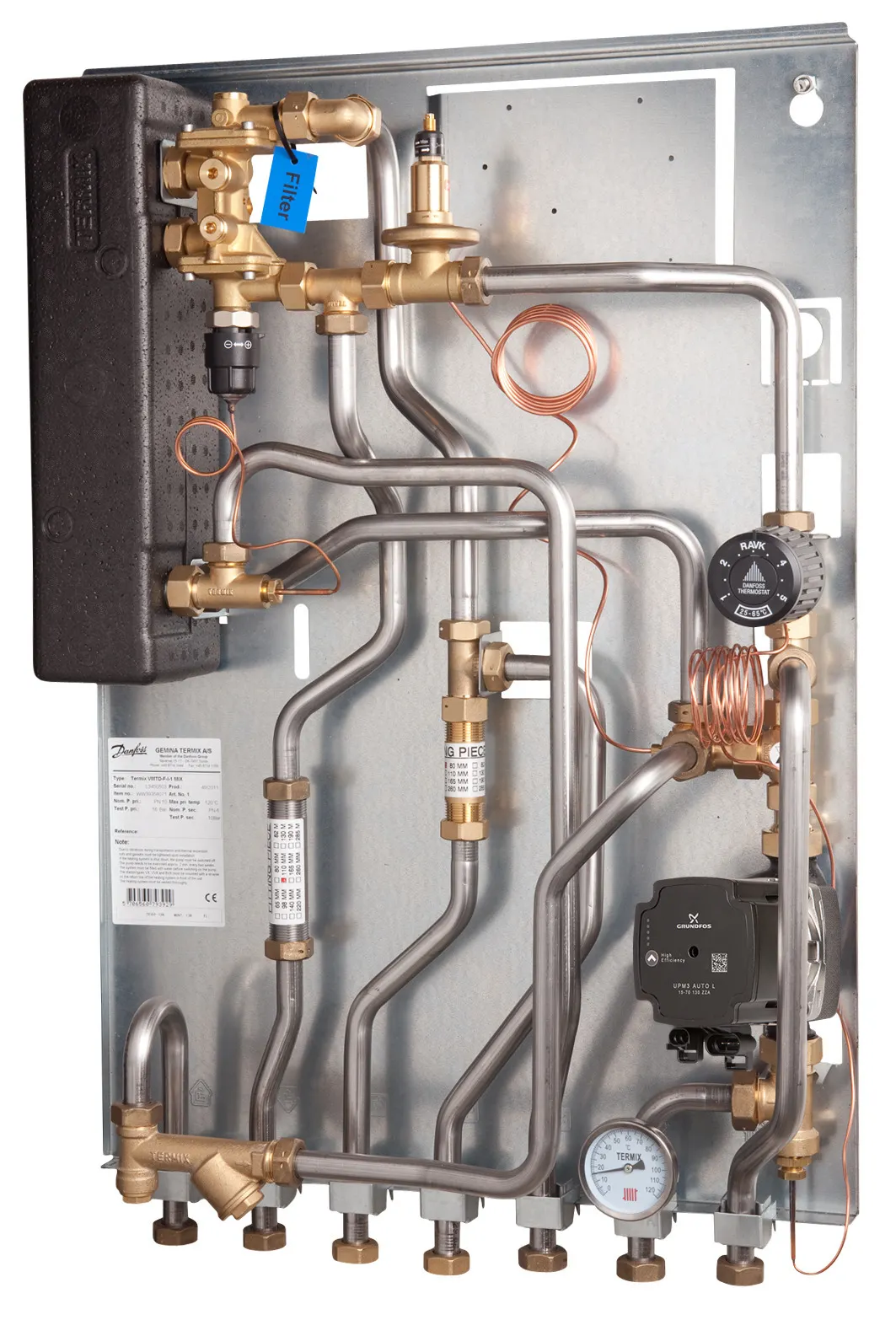

144B3794 Danfoss: Product Type: Termix VMTD-F MIX-I, Type 1, 16 bar, 120 °C, Thermostatic valve and thermoactuator, IHPT
Gross weight
19 Kilogram
Net weight
18 Kilogram
Volume
0.062 Cubic meter
EAN
5706560900648
Application type
Direct Heating with mixing & Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
G int. Thread
Circulation pipe size
Ø18
Connection direction
Bottom
Contain batteries
No
Cover material
White-lacquered steel sheet, White-lacquered In wall.
Cover option
Extra
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
242 mm
Depth without cover [mm]
150 mm
Description
Termix VMTD-F MIX-I-1 with zone valve, HEX/Pipe insulation
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
IHPT
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heating circuit - control
Thermostatic valve and thermoactuator
Heating control type
Thermostatic + delta p controller
Heating controller name
RAVK
Height with cover [mm]
800 mm
Height without cover [mm]
780 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
0377884c-499c-4074-8fc1-295ac708dd42
Station size type
Type 1
Supply temperature construction [˚C]
120 °C
Type
Termix VMTD-F MIX-I
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
540 mm
Width without cover [mm]
535 mm
144B3804
Steel cover
144B3839
Connection set.
144B3912
Manometers
144B3913
Thermometer 0-120´
144B3840
Ball valve int./ext. thread 8 pieces
144B3857
Connection set.
144B3858
connection set
144B3859
Ball valve int./ext. thread 7 pieces
144B3996
Pressure equalizer
144B3997
Safety valve
