144B3955

Part Number: 144B3955
144B3955
Manufacturer
Danfoss
Part number
144B3955
Category

Product Information

Extended Description

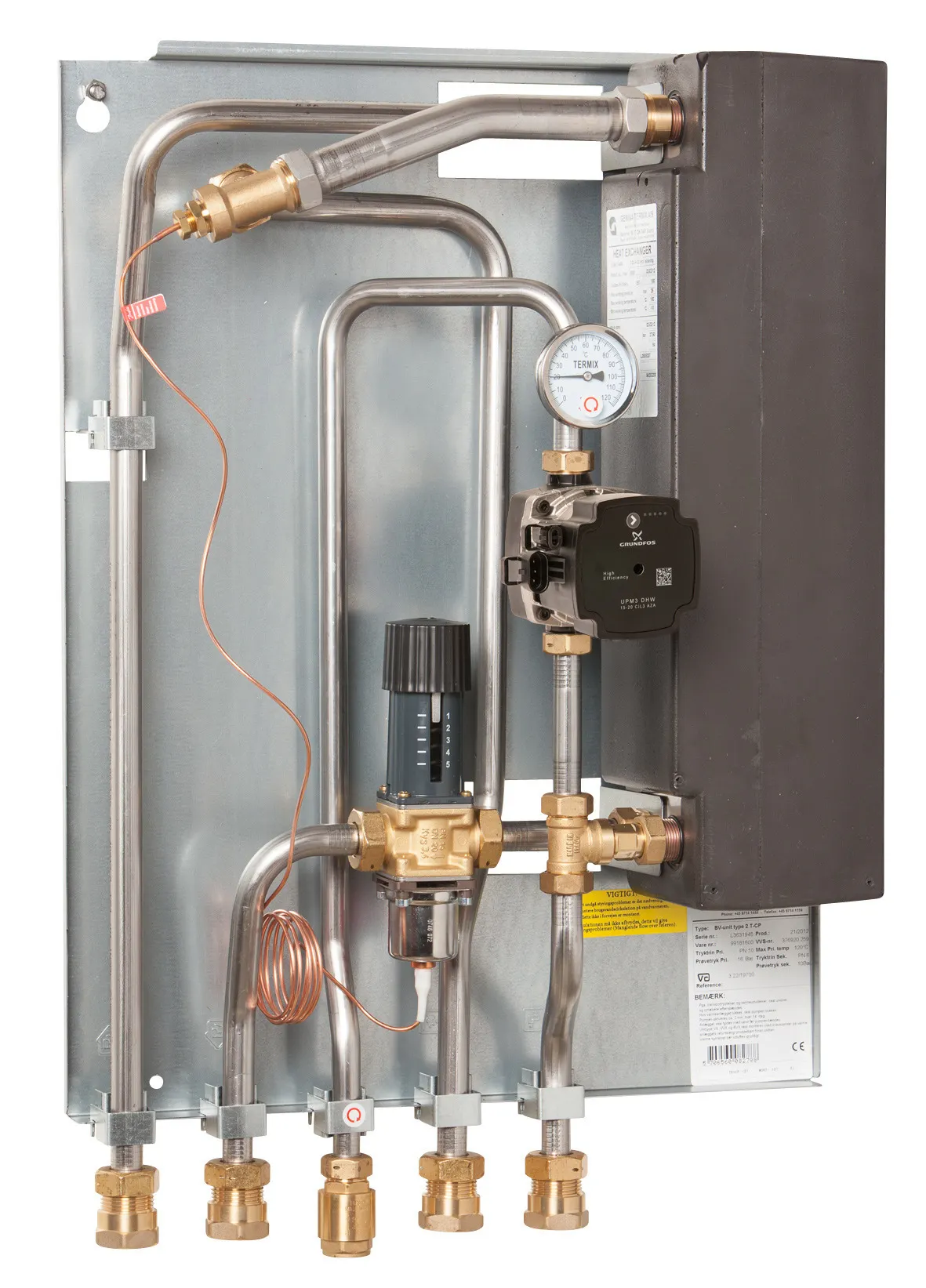

144B3955 Danfoss: Product Type: Termix BV T, Type 6 T-CP, 16 bar, 110 °C, AVTB 20 + AVTB 20
Gross weight
60 Kilogram
Net weight
59 Kilogram
Volume
0.081 Cubic meter
EAN
5706560672903
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
G int. Thread
Circulation pipe size
Ø18
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Extra
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
525 mm
Depth without cover [mm]
340 mm
Description
Termix BV, type 6, T-CP
DH connection size
1"
DH connection type
G int. Thread
DH pipe size
Ø28
DHW circulation
Included
DHW connection size
1"
DHW connection type
G int. Thread
DHW Control type
Thermostatic
DHW controller name
AVTB 20 + AVTB 20
DHW pipe size
Ø28
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
1000 mm
Height without cover [mm]
1000 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
49d3c747-ac00-4946-91d4-61317f56805d
Station size type
Type 6 T-CP
Supply temperature construction [˚C]
110 °C
Type
Termix BV T
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
950 mm
Width without cover [mm]
800 mm
144B3371
Circulation set
144B3941
Cover BL 7-8
144B3951
Cover for Termix BV/BL, Type 6
144B3952
Cover for Termix BV/BL, Type 2-5
144B3370
Safety valve
144B3950
Thermostatic circulation set
