144B3968
Part Number: 144B3968
Product Information
Extended Description

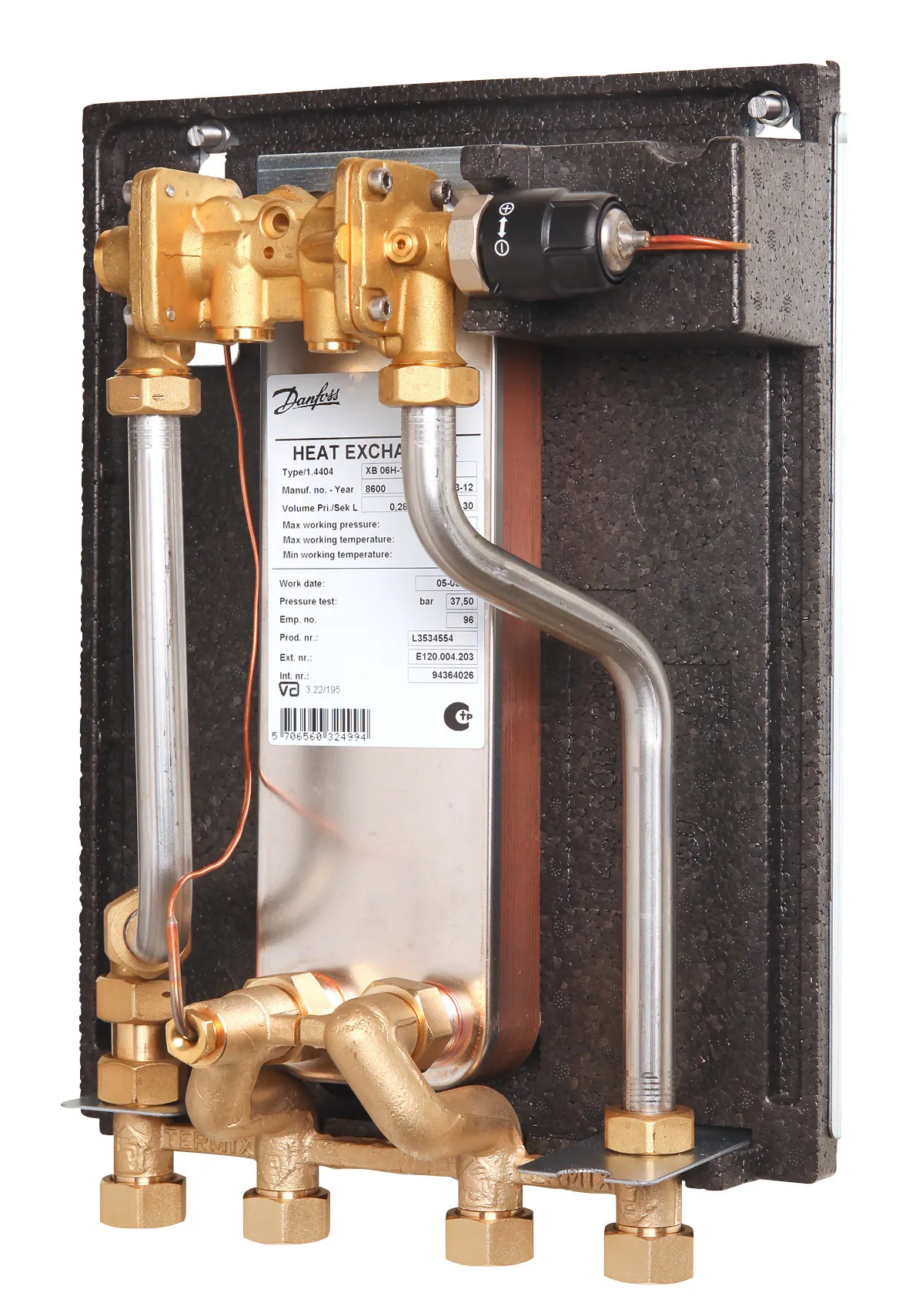

144B3968 Danfoss: Product Type: Termix Novi, Type 2, 16 bar, 120 °C, IHPT
Gross weight
11 Kilogram
Net weight
10 Kilogram
Volume
0.022 Cubic meter
EAN
5706560672620
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover material
Gray-lacquered steel sheet
Cover option
Included
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
165 mm
Depth without cover [mm]
155 mm
Description
Termix Novi Type 2 w/cover IHPT/Insu
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW circulation
Extra
DHW connection size
3/4"
DHW connection type
G ext. thread
DHW Control type
Flow/thermostatic
DHW controller name
IHPT
DHW HEX type
XB06H-1 40
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
432 mm
Height without cover [mm]
432 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
213f314e-948d-4742-b437-27d078294d2d
Station size type
Type 2
Supply temperature construction [˚C]
120 °C
Type
Termix Novi
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
315 mm
Width without cover [mm]
300 mm
144B3993
Ball valves
144B3787
Circulation set
144B3994
Ball valve int./ext. thread 4 pieces
