144B3969
Part Number: 144B3969
Product Information
Extended Description

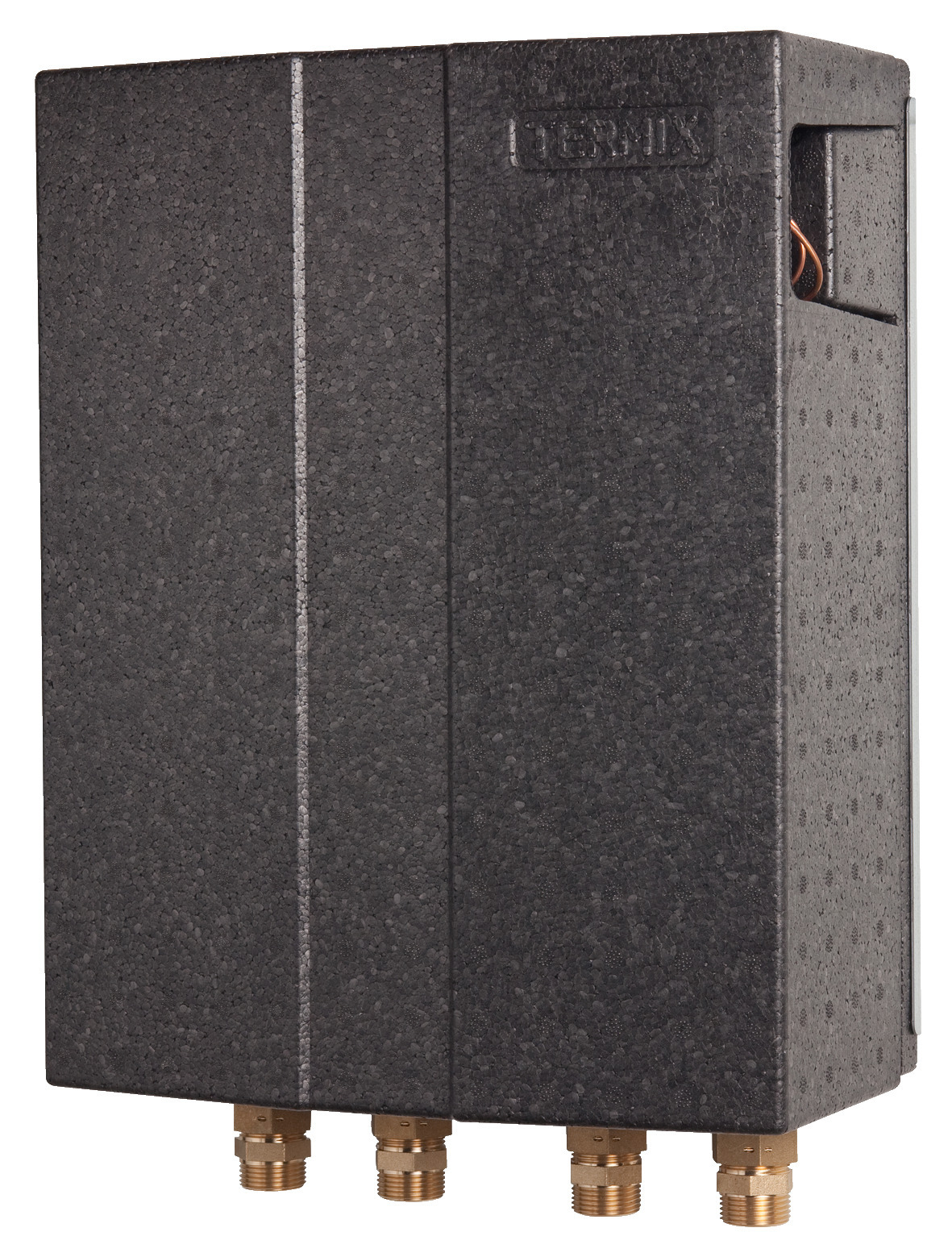

144B3969 Danfoss: Product Type: Termix Novi, Type 1, 16 bar, 120 °C, IHPT
Gross weight
10 Kilogram
Net weight
9 Kilogram
Volume
0.022 Cubic meter
EAN
5706560672675
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover material
Gray-lacquered steel sheet
Cover option
Without
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
165 mm
Depth without cover [mm]
155 mm
Description
Termix Novi Type 1 IHPT/safety valve/Insu
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW circulation
Extra
DHW connection size
3/4"
DHW connection type
G ext. thread
DHW Control type
Flow/thermostatic
DHW controller name
IHPT
DHW HEX type
XB06H-1 26
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
432 mm
Height without cover [mm]
432 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
f6f0f890-74c7-4be7-8f7a-e87c30272101
Station size type
Type 1
Supply temperature construction [˚C]
120 °C
Type
Termix Novi
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
315 mm
Width without cover [mm]
300 mm
144B3993
Ball valves
144B3787
Circulation set
144B3994
Ball valve int./ext. thread 4 pieces
