144B3977
Part Number: 144B3977
Product Information
Extended Description

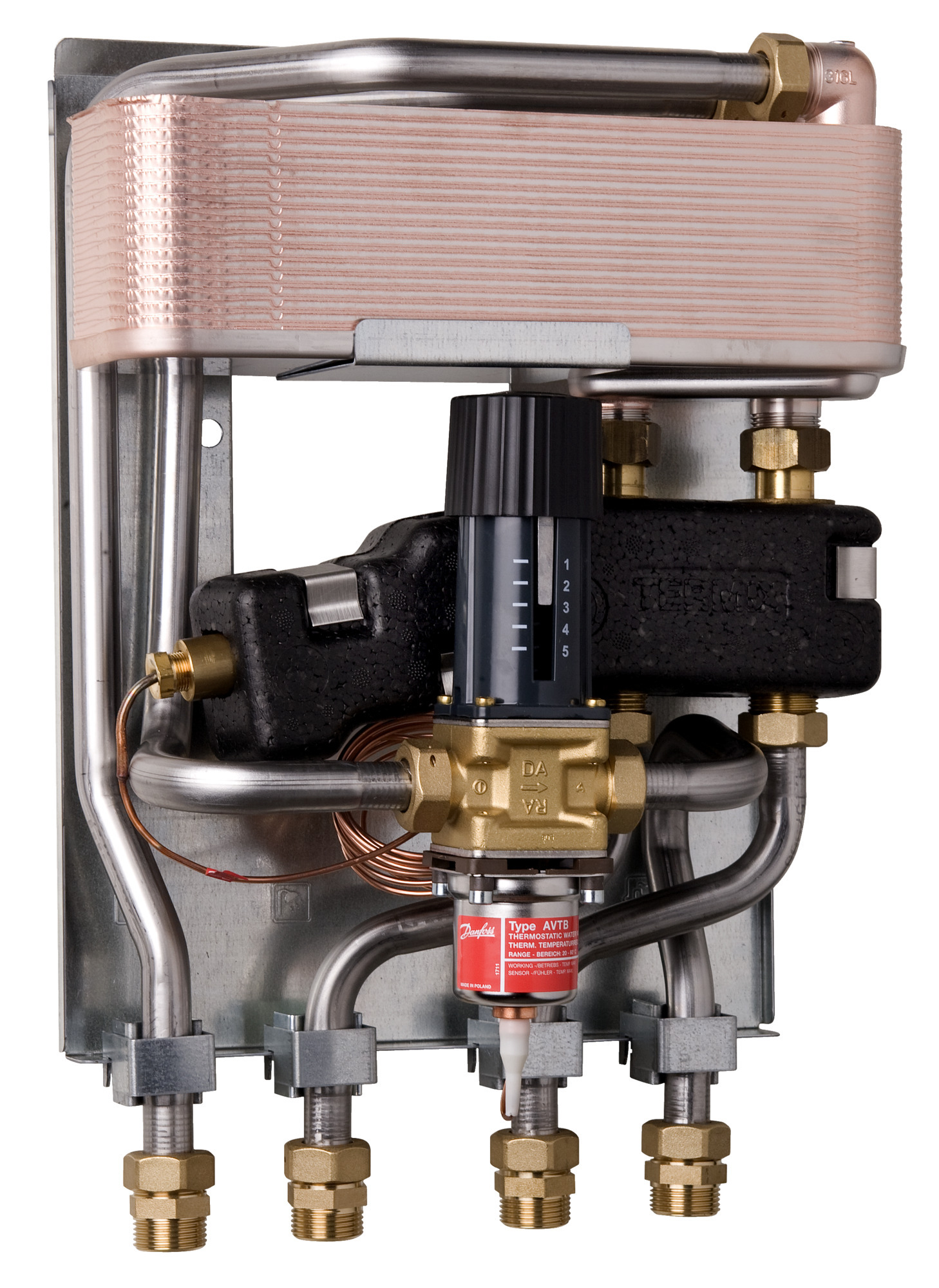

144B3977 Danfoss: Product Type: Termix One-B, Type 1, 16 bar, 120 °C, AVTB
Gross weight
10 Kilogram
Net weight
9 Kilogram
Volume
0.021 Cubic meter
EAN
5706560897856
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover material
Gray-lacquered steel sheet
Cover option
Included
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
165 mm
Depth without cover [mm]
165 mm
Description
Termix One Type 1 AVTB
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G ext. thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
430 mm
Height without cover [mm]
430 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
1b8a1347-ccfb-477d-b363-b8e0700ad8d3
Station size type
Type 1
Supply temperature construction [˚C]
120 °C
Type
Termix One-B
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
315 mm
Width without cover [mm]
315 mm
144B3993
Ball valves
144B3994
Ball valve int./ext. thread 4 pieces
144B3995
Thermostatic circulation set
