144B3979
Part Number: 144B3979
Product Information
Extended Description

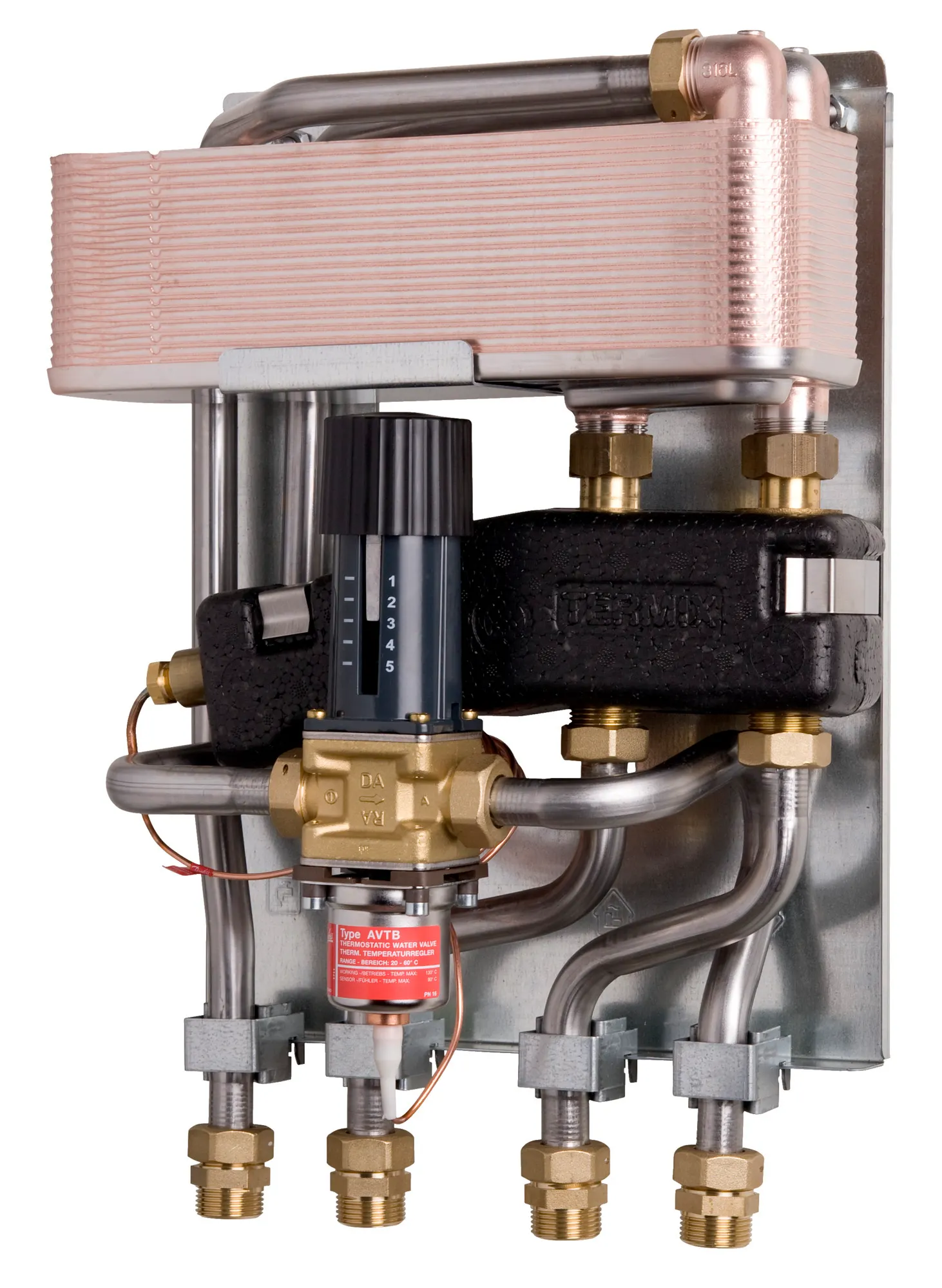

144B3979 Danfoss: Product Type: Termix One-B, Type 3, 16 bar, 120 °C, AVTB
Gross weight
10 Kilogram
Net weight
9 Kilogram
Volume
0.021 Cubic meter
EAN
5706560905186
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover material
Gray-lacquered steel sheet
Cover option
Without
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
165 mm
Depth without cover [mm]
165 mm
Description
Termix One Type 3 AVTB
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G ext. thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
470 mm
Height without cover [mm]
470 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
a365e8b5-e537-4f5a-a616-ea9b966d4847
Station size type
Type 3
Supply temperature construction [˚C]
120 °C
Type
Termix One-B
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
315 mm
Width without cover [mm]
315 mm
144B3993
Ball valves
144B3994
Ball valve int./ext. thread 4 pieces
144B3995
Thermostatic circulation set
Termix One-B
Specifying the right district heating substation makes commercial sense
First ever district heating system with substations in Turkey
Teknopark Istanbul: First-mover in district energy
Termix One-B
Termix One-B
Safety Note
Modern heating technology for housing associations
144B3979 Termix One Type 3 AVTB XB04-2-VP
2D drawing of substation type Termix One - 144B3979
