144B3982

Part Number: 144B3982
144B3982
Manufacturer
Danfoss
Part number
144B3982
Category

Product Information

Extended Description

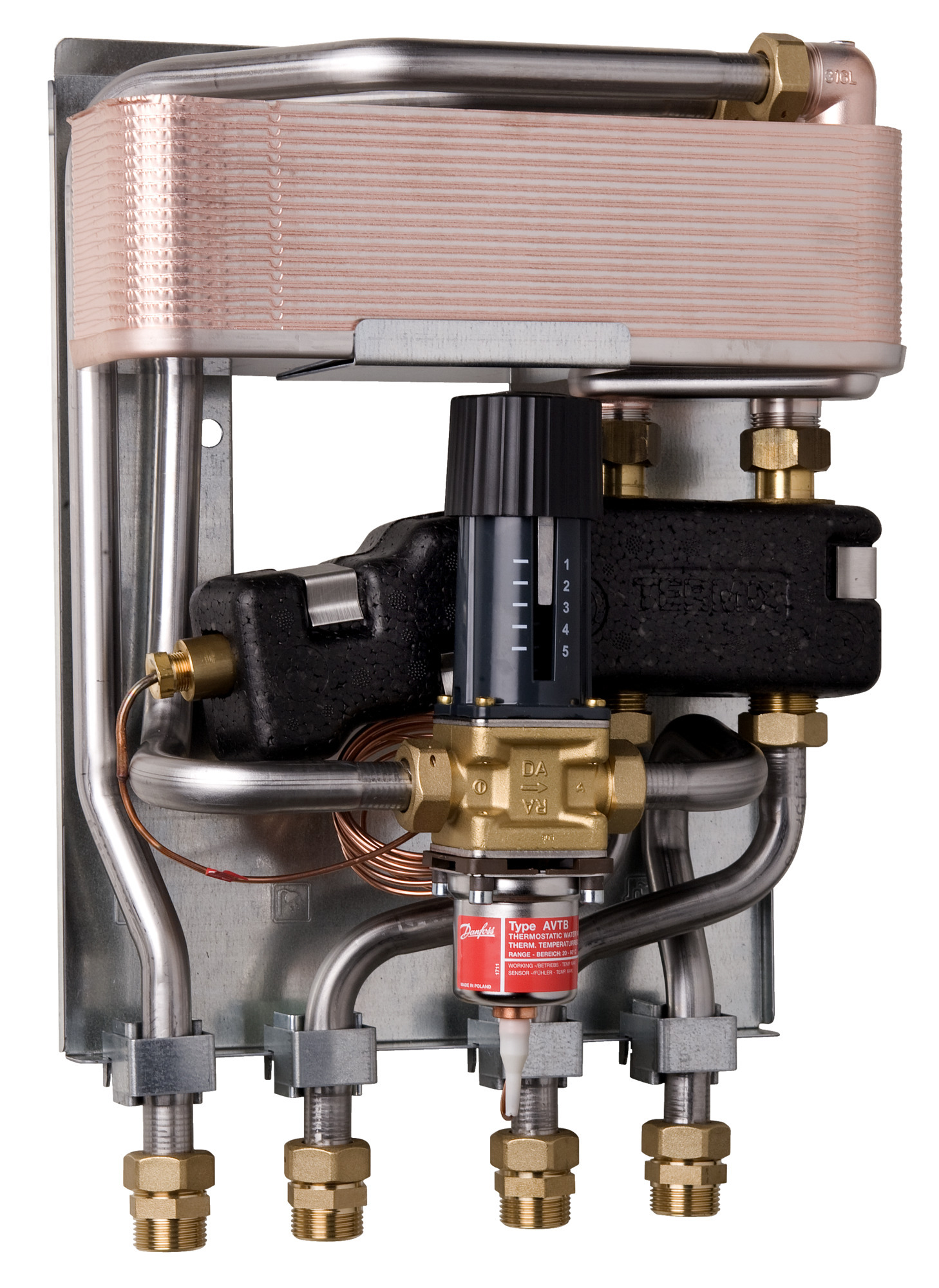

144B3982 Danfoss: Product Type: Termix One-B, Type 3, 16 bar, 120 °C, AVTB
Gross weight
13 Kilogram
Net weight
12 Kilogram
Volume
0.024 Cubic meter
EAN
5706560901997
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover material
Gray-lacquered steel sheet
Cover option
Included
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
165 mm
Depth without cover [mm]
165 mm
Description
Termix One Type 3 w/cover AVTB
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G ext. thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
470 mm
Height without cover [mm]
470 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
07d70e00-aed3-4010-b8ae-7d88aa04c6f7
Station size type
Type 3
Supply temperature construction [˚C]
120 °C
Type
Termix One-B
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
315 mm
Width without cover [mm]
315 mm
144B3993
Ball valves
144B3994
Ball valve int./ext. thread 4 pieces
144B3995
Thermostatic circulation set
Termix One-B Specifying the right district heating substation makes commercial sense First ever district heating system with substations in Turkey Teknopark Istanbul: First-mover in district energy Termix One-B Termix One-B Safety Note Modern heating technology for housing associations Water heater Termix One without insulation 2D drawing of substation type Termix One - 144B3982
