144B3999
Part Number: 144B3999
Product Information
Extended Description

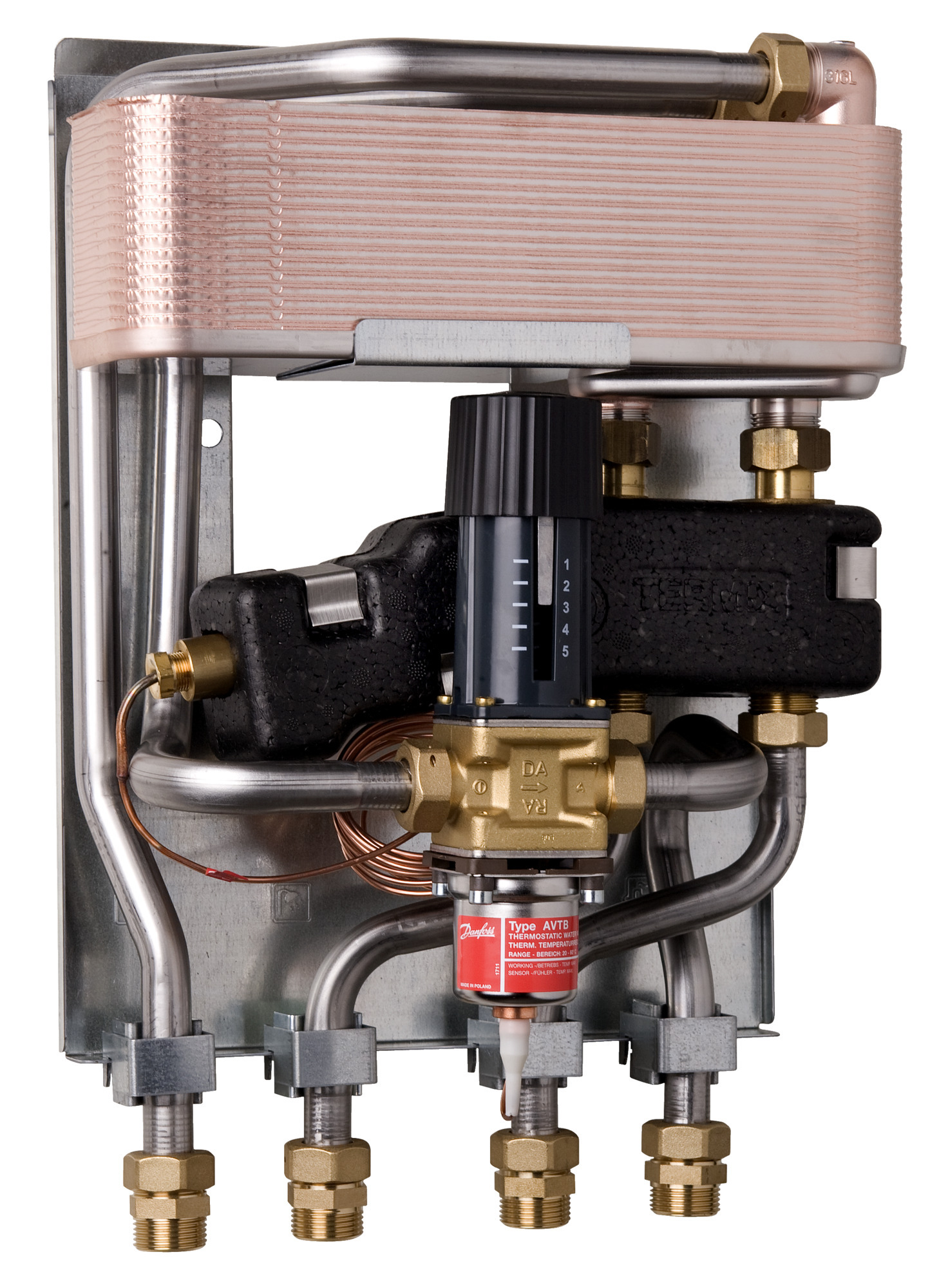

144B3999 Danfoss: Product Type: Termix One-B FI, Type 2, 16 bar, 120 °C, AVTB
Gross weight
11 Kilogram
Net weight
10 Kilogram
Volume
0.245 Hectoliter
EAN
5706560897740
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover option
Without
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
195 mm
Depth without cover [mm]
195 mm
Description
Termix One Type 2 Avtb 20/insu
DH connection size
3/4"
DH connection type
G ext. thread
DH pipe size
Ø18
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G ext. thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
435 mm
Height without cover [mm]
435 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
71eb7276-813e-4b48-88e1-6ef4b7c20714
Station size type
Type 2
Supply temperature construction [˚C]
120 °C
Type
Termix One-B FI
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
355 mm
Width without cover [mm]
355 mm
