144H1088
Part Number: 144H1088
Product Information
Extended Description

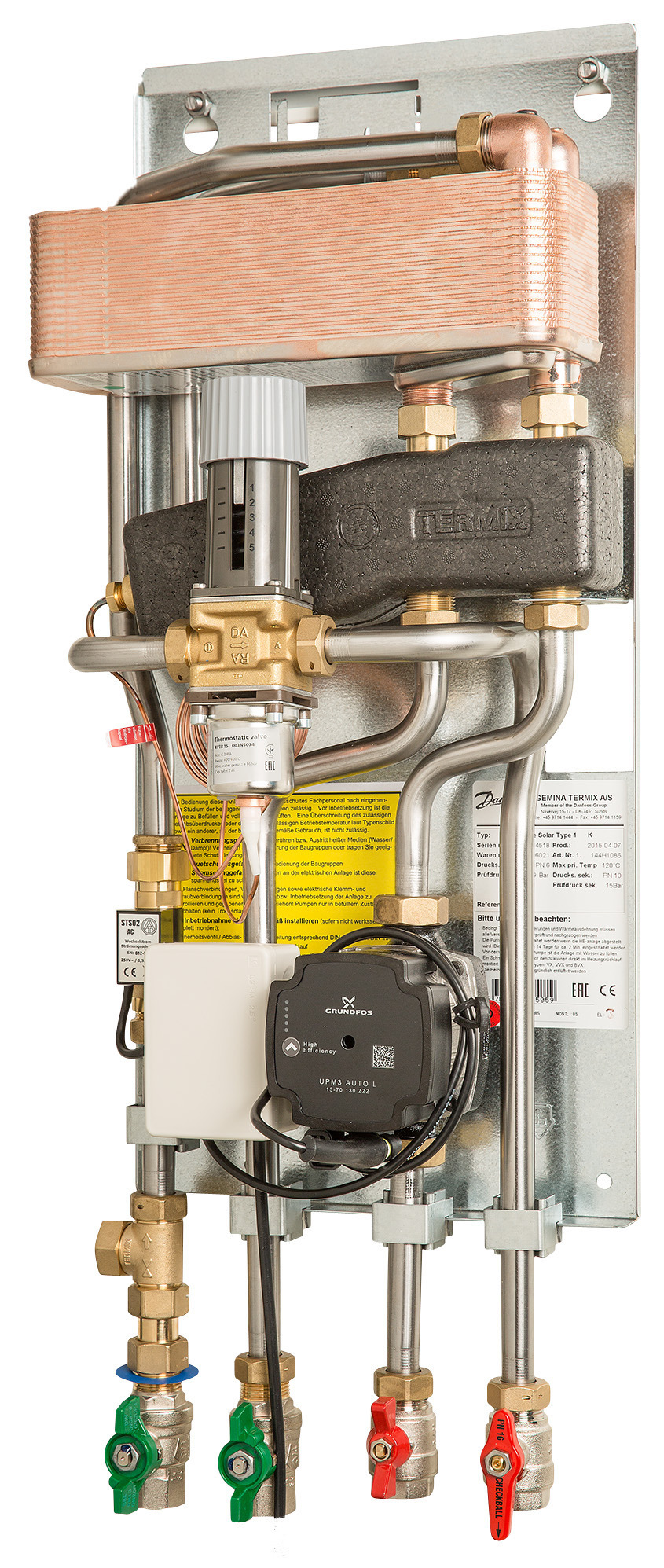

144H1088 Danfoss: Product Type: Termix One Solar, Type 3, 16 bar, 100 °C, AVTB 20
Gross weight
15 Kilogram
Net weight
14 Kilogram
Volume
0.04 Cubic meter
EAN
5706561035103
Application type
Fresh water modules
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover material
Gray-lacquered steel sheet
Cover option
Included
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
165 mm
Depth without cover [mm]
160 mm
Description
Termix One Solar, Typ 3 with Cover
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW circulation
Extra
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Thermostatic
DHW controller name
AVTB 20
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
770 mm
Height without cover [mm]
770 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
ea27943f-014b-411a-a730-70ceeed77071
Station size type
Type 3
Supply temperature construction [˚C]
100 °C
Supply voltage [V]
230 V
Type
Termix One Solar
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
315 mm
Width without cover [mm]
300 mm
004U3055
Circulation set for Termix One Solar
004U3093
Safety valve
