144H1277
Part Number: 144H1277
Product Information
Extended Description

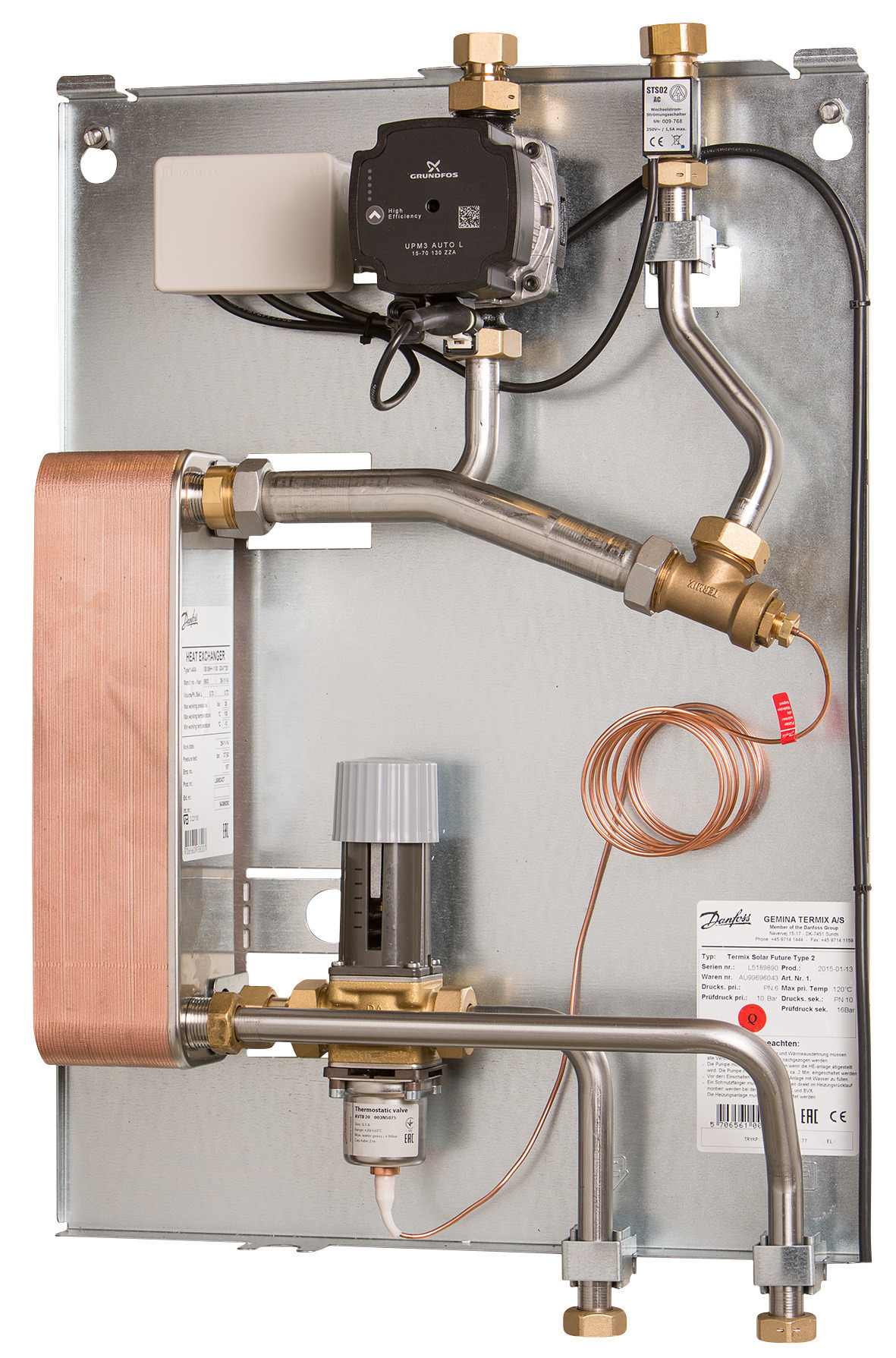

144H1277 Danfoss: Product Type: Termix Solar, Type 2, 10 bar, 110 °C, AVTB
Gross weight
15 Kilogram
Net weight
14 Kilogram
Volume
0.041 Cubic meter
EAN
5706561008718
Application type
Fresh water modules
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover option
Without
DCW static pressure [bar] [Min]
1 bar
Description
Termix Solar A+
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
791ee05b-2723-4c83-8924-17d6f6cb2e11
Station size type
Type 2
Supply temperature construction [˚C]
110 °C
Type
Termix Solar
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
144H0930
Ball valve connection set for Termix Solar
144H0932
Ball valve connection set for Termix Solar
144H0936
Circulation set for Termix Solar
