144H1750

Part Number: 144H1750
144H1750
Manufacturer
Danfoss
Part number
144H1750
Category

Product Information

Extended Description

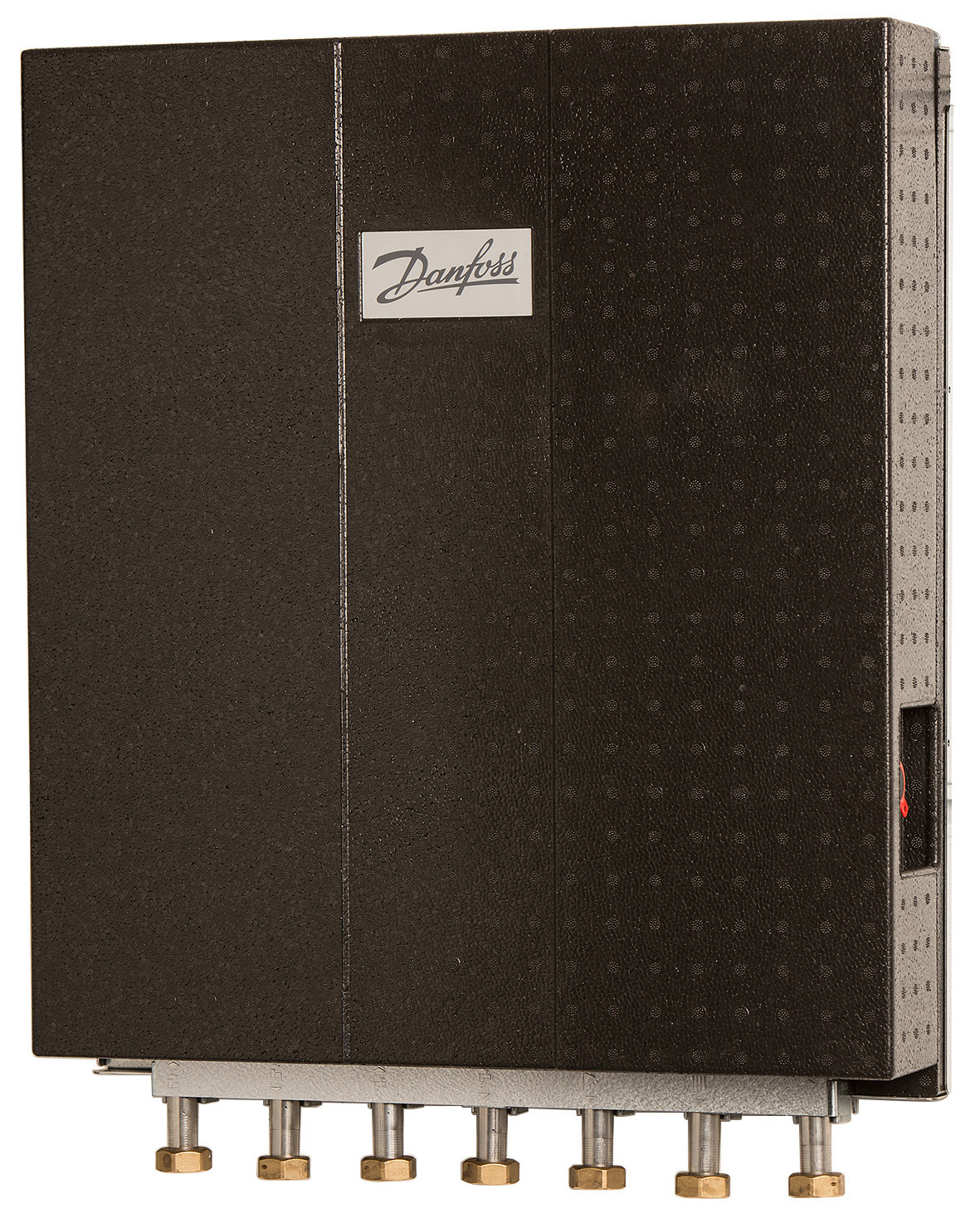

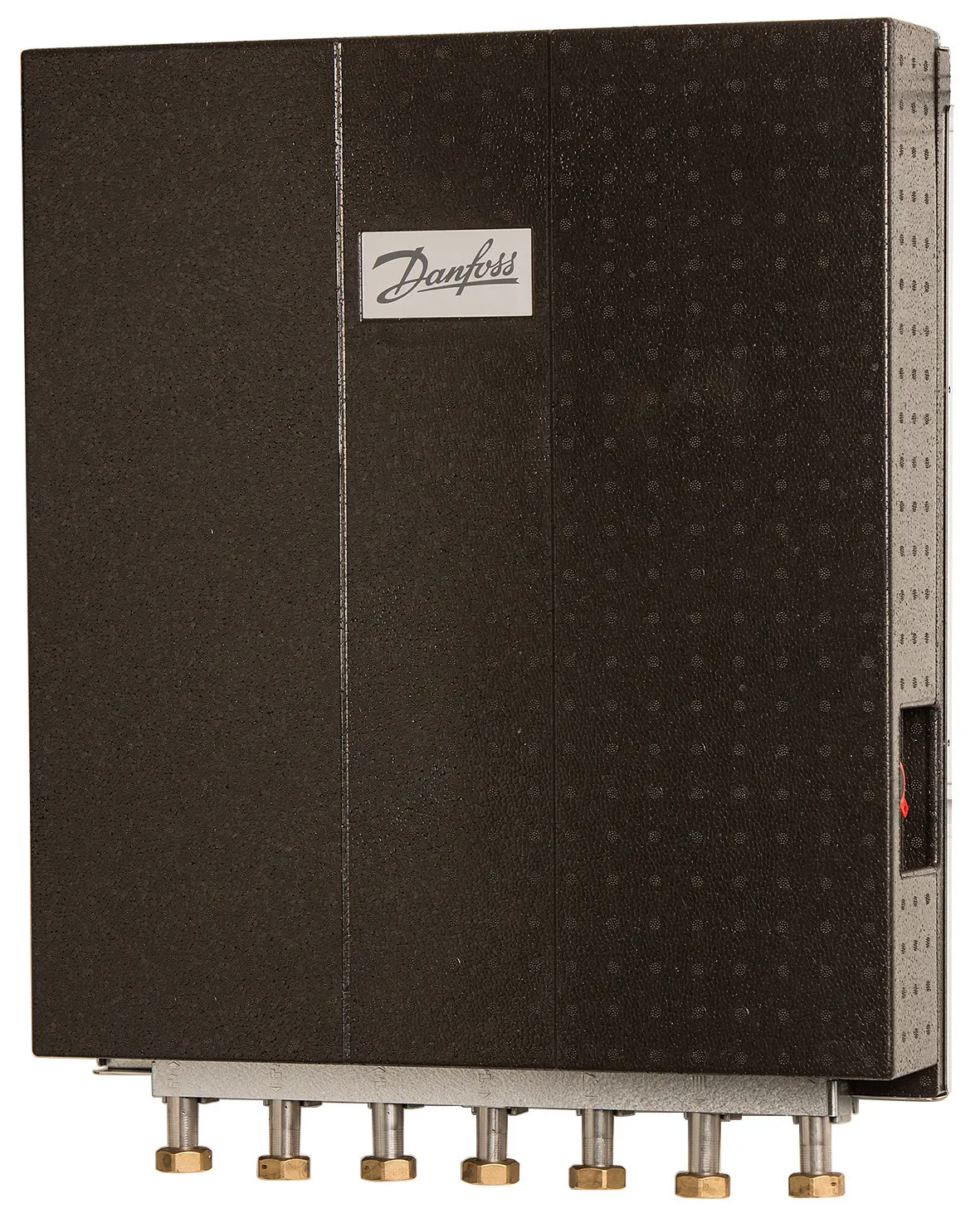

144H1750 Danfoss: Product Type: Termix VMTD-F-I FI, Type 2, 16 bar, 120 °C, dP-control, IHPT
Gross weight
18 Kilogram
Net weight
17 Kilogram
Volume
0.038 Cubic meter
EAN
5706561155283
Application type
Direct Heating & Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Included
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
242 mm
Depth without cover [mm]
110 mm
Description
Termix VMTD-F-I-1, insulation with zone valve
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW circulation
Extra
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
IHPT
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heating circuit - control
dP-control
Heating control type
Delta p controller + zone valve
Heating controller name
AVPL
Height with cover [mm]
800 mm
Height without cover [mm]
665 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
f5cac78a-dd5d-4dd0-881e-fe2b066a5654
Station size type
Type 2
Supply temperature construction [˚C]
120 °C
Type
Termix VMTD-F-I FI
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
540 mm
Width without cover [mm]
530 mm
