144H2010
Part Number: 144H2010
Product Information
Extended Description

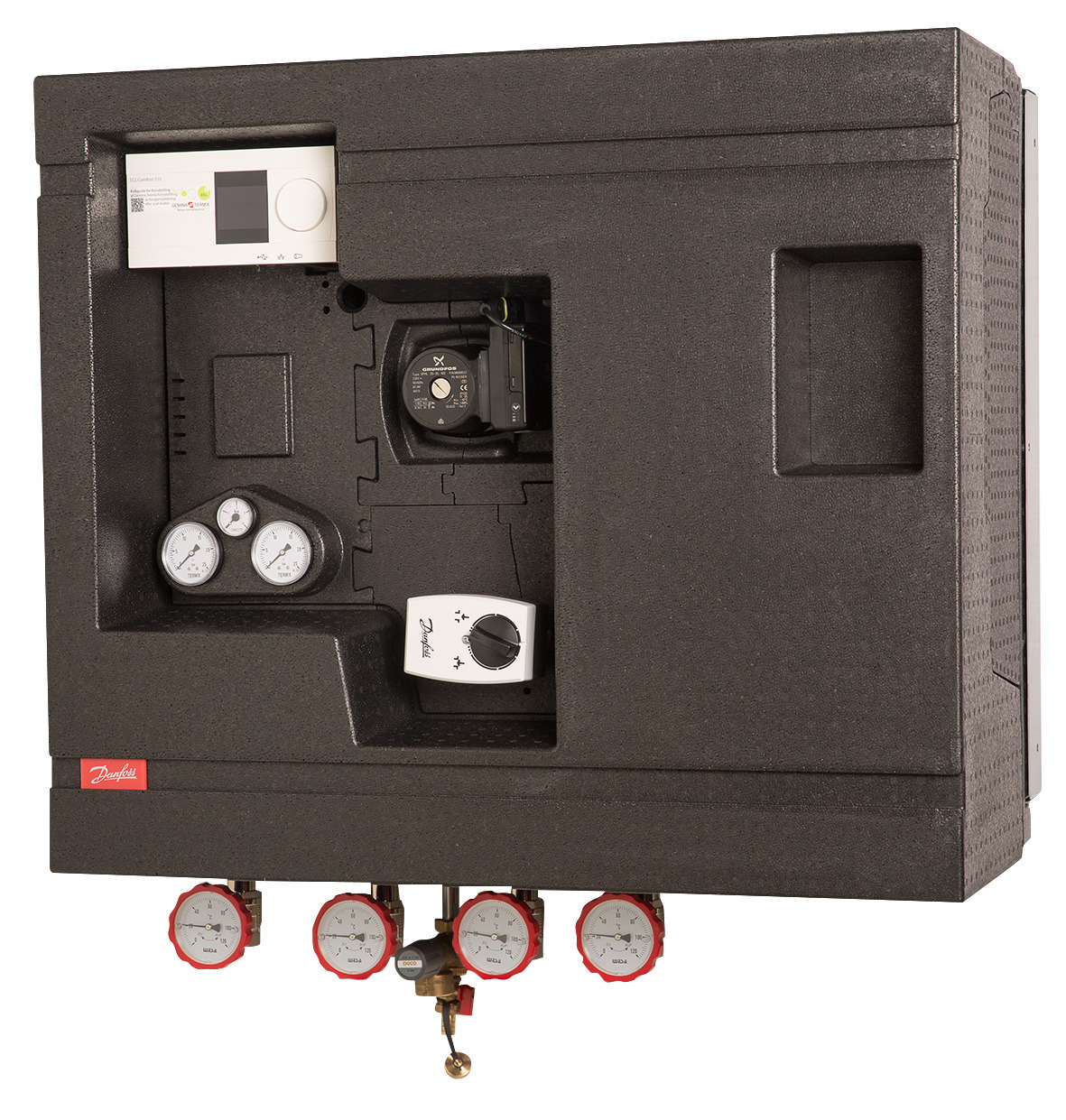

144H2010 Danfoss: Product Type: Termix Compact 28 VX-FI, Type 2, 16 bar, 110 °C, ECL310
Gross weight
60 Kilogram
Net weight
59 Kilogram
Volume
0.322 Cubic meter
EAN
5706561210500
Application type
Indirect Heating & Primary connections for DHW cylinder
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
Cover option
Without
Depth without cover [mm]
400 mm
Description
Termix Compact 28 VX-FI, Type 2, AVP-F, VM + AMV 10
DH connection size
1"
DH connection type
G int. Thread
DH pipe size
Ø28
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
1"
HE connection type
G int. Thread
HE pipe size
Ø28
Heating circuit - control
ECL310
Heating control type
Electronic
Heating controller name
ECL310
Height without cover [mm]
890 mm
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
b2e644e9-a314-4a96-a7f6-9c5c5e2835aa
Station size type
Type 2
Supply temperature construction [˚C]
110 °C
Supply voltage [V]
230 V
Type
Termix Compact 28 VX-FI
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width without cover [mm]
905 mm
