144H2021
Part Number: 144H2021
Product Information
Extended Description

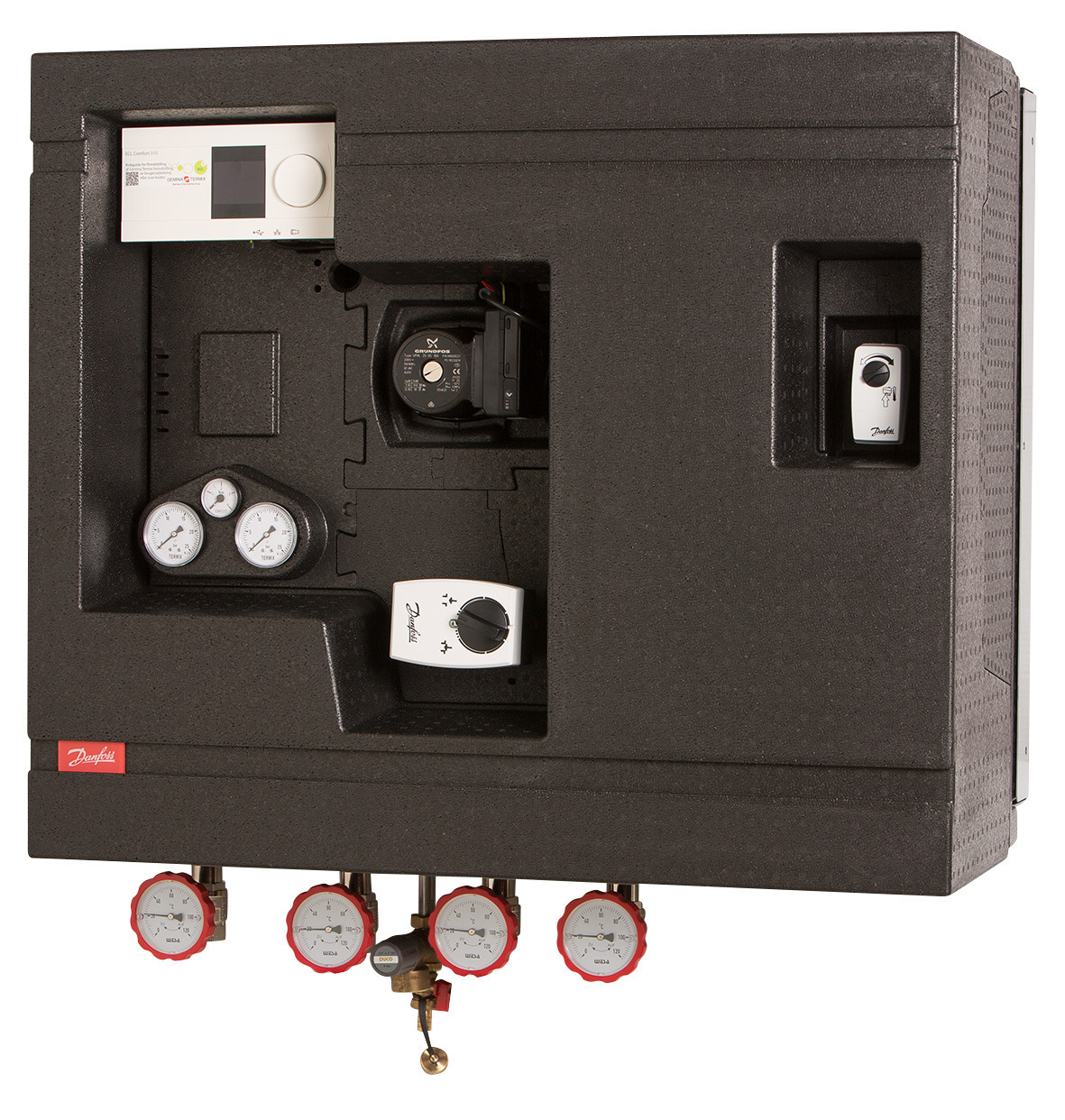

144H2021 Danfoss: Product Type: Termix Compact 28 VX-FI, Type 1, 16 bar, 110 °C, ECL310
Gross weight
56 Kilogram
Net weight
55 Kilogram
Volume
0.245 Cubic meter
EAN
5706561201881
Application type
Indirect Heating & Primary connections for DHW cylinder
CE evaluated
Yes
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
Cover option
Without
Depth without cover [mm]
400 mm
Description
Substations - Indirect Heating
DH connection size
1"
DH connection type
G int. Thread
DH pipe size
Ø28
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
1"
HE connection type
G int. Thread
HE pipe size
Ø28
Heating circuit - control
ECL310
Heating control type
Electronic
Heating controller name
ECL310
Height without cover [mm]
890 mm
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
bed1b5f1-d08f-4e9c-9487-67d27adeab10
Station size type
Type 1
Supply temperature construction [˚C]
110 °C
Supply voltage [V]
230 V
Type
Termix Compact 28 VX-FI
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width without cover [mm]
905 mm
144H2065
Fitting piece for heat meter
144H2066
Fitting piece for heat meter
144H2067
Fitting piece heat meter
144H2068
Fitting piece for heat meter
144H2069
Fitting piece for heat meter
144H2070
Fitting piece for heat meter
