144H2356
Part Number: 144H2356
Product Information
Extended Description

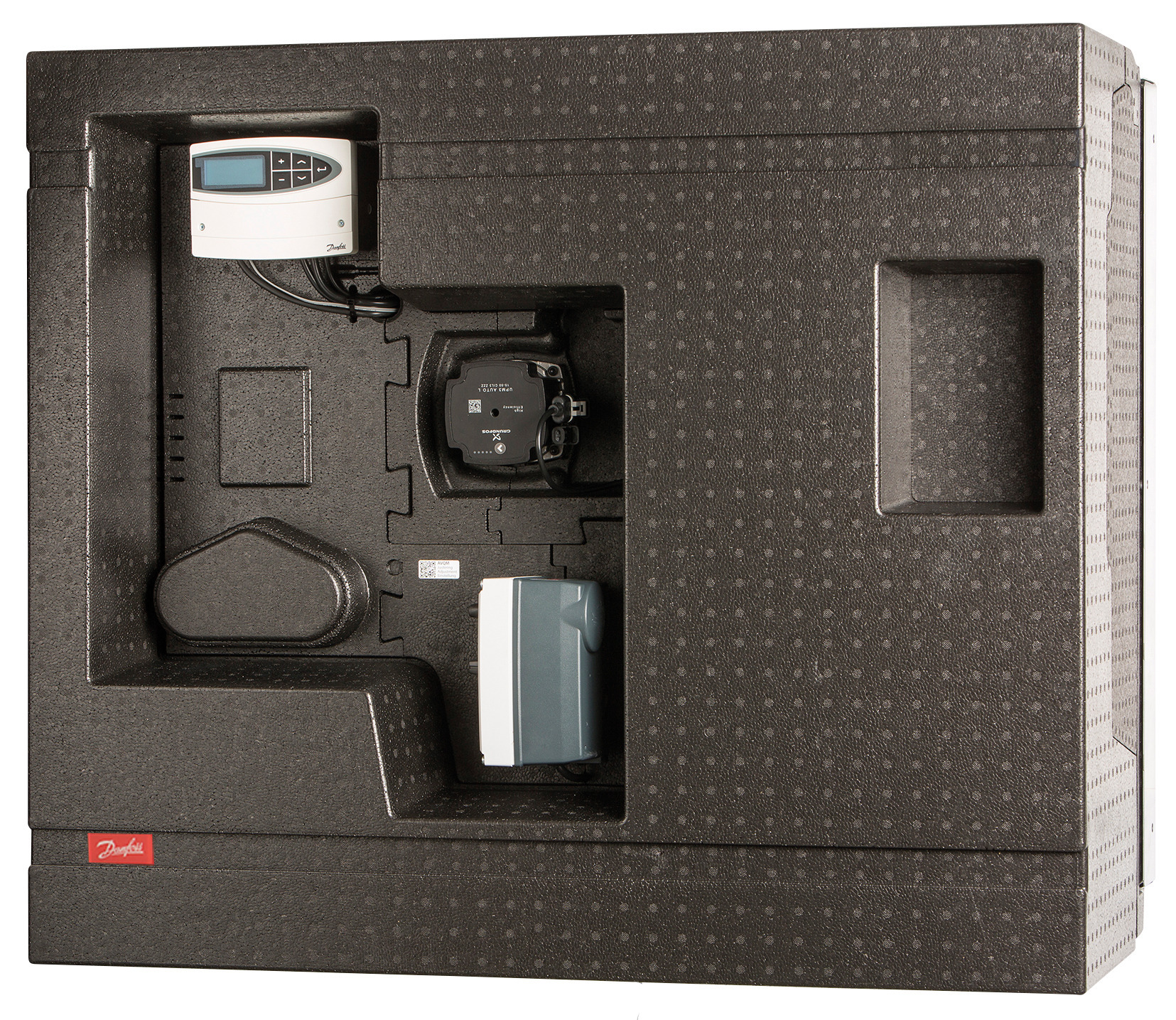

144H2356 Danfoss: Product Type: Termix BV-FI, Type 3 E-CP, 16 bar, 110 °C, ECL
Gross weight
60 Kilogram
Net weight
59 Kilogram
EAN
5706561327918
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
G3/4"
Circulation connection type
G int. Thread
Circulation pipe size
Ø18
Contain batteries
No
Cover material
Without
Cover option
No
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
400 mm
Description
Fully insulated Instantaneous water heater
DH connection size
G1"
DH connection type
G int. Thread
DH pipe size
Ø28
DHW circulation
Yes
DHW connection size
G1"
DHW connection type
G int. Thread
DHW Control type
Electronic
DHW controller name
ECL
DHW pipe size
Ø28
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
890 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
0c2c538b-7dab-491d-bf68-fb5b685c64f4
Station size type
Type 3 E-CP
Supply temperature construction [˚C]
110 °C
Supply voltage [V]
230 V
Type
Termix BV-FI
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
905 mm
144B3371
Circulation set
