144H2361
Part Number: 144H2361
Product Information
Extended Description

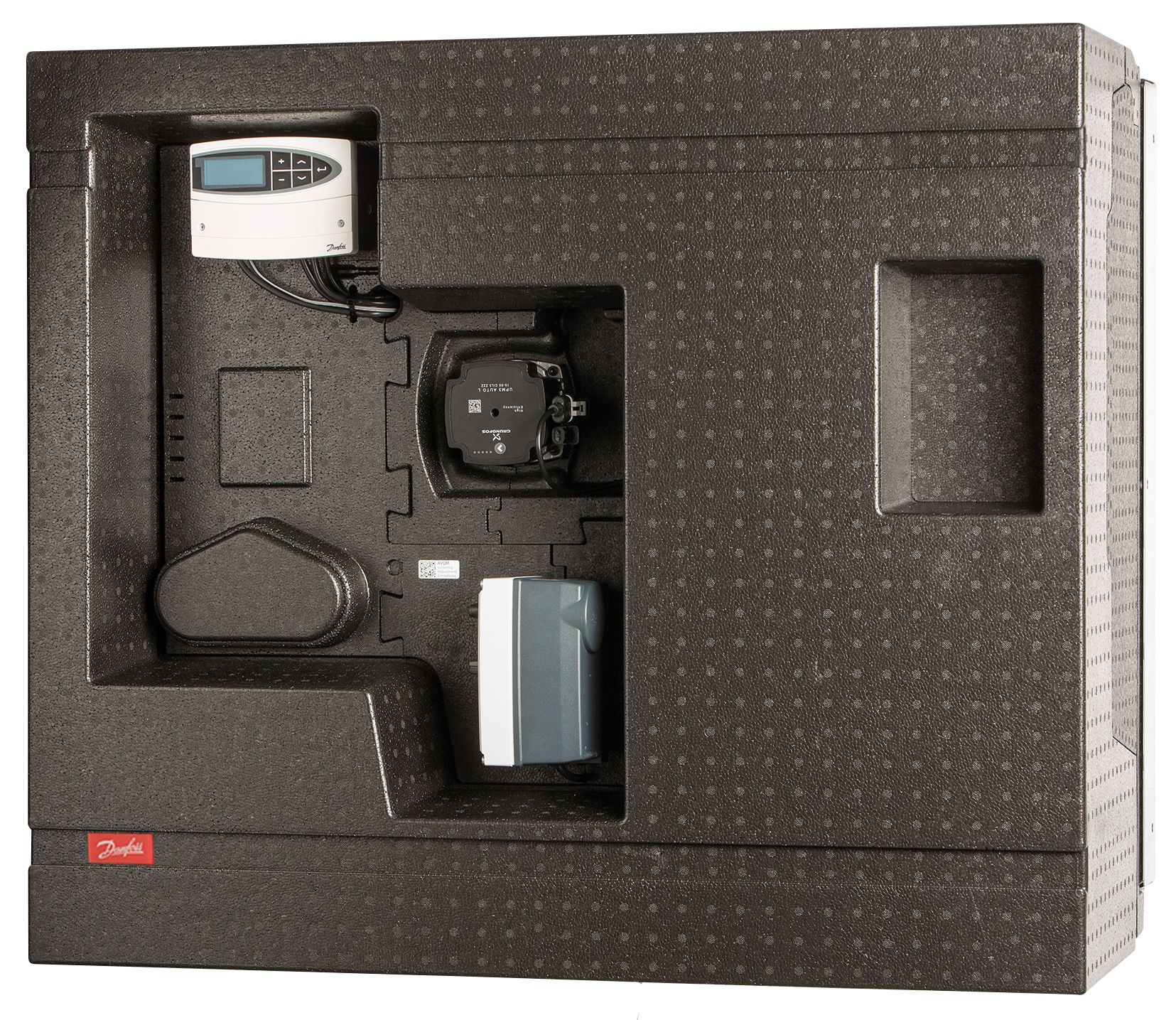

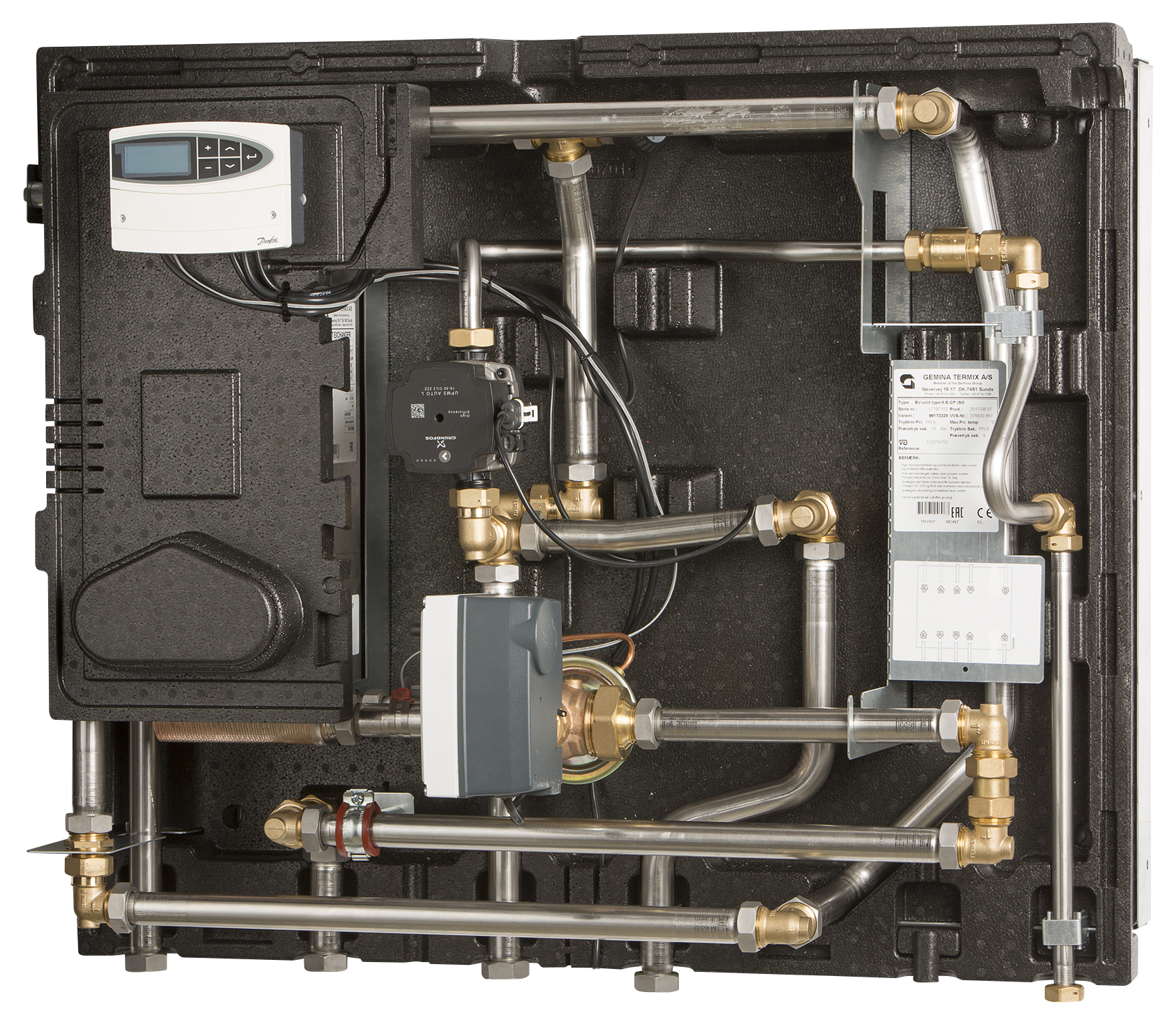

144H2361 Danfoss: Product Type: Termix BV-FI, Type 8 E-CP, 16 bar, 110 °C, ECL
Gross weight
60 Kilogram
Net weight
59 Kilogram
Volume
0.322 Cubic meter
EAN
5706561327970
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
G3/4"
Circulation connection type
G int. Thread
Circulation pipe size
Ø18
Contain batteries
No
Cover material
Without
Cover option
No
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
400 mm
Description
Fully insulated Instantaneous water heater
DH connection size
G1"
DH connection type
G int. Thread
DH pipe size
Ø28
DHW circulation
Yes
DHW connection size
G1"
DHW connection type
G int. Thread
DHW Control type
Electronic
DHW controller name
ECL
DHW pipe size
Ø28
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
890 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
cc4c84fb-bffd-4aa6-9184-b288bd822ab1
Station size type
Type 8 E-CP
Supply temperature construction [˚C]
110 °C
Supply voltage [V]
230 V
Type
Termix BV-FI
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
905 mm
144B3371
Circulation set
