144H2377
Part Number: 144H2377
Product Information
Extended Description

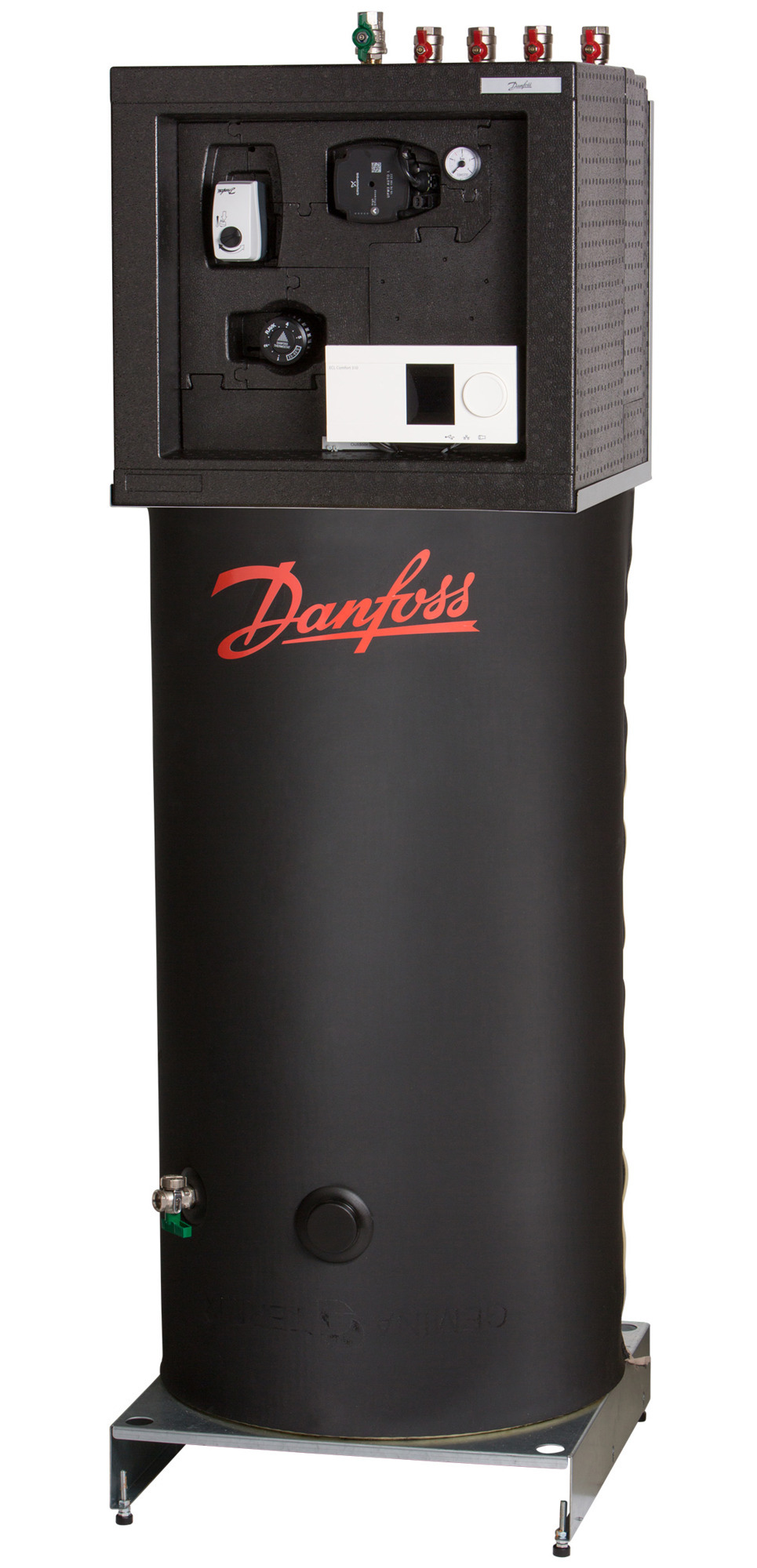

144H2377 Danfoss: Product Type: Termix BVX FI RO, Type 2-2, 16 bar, 120 °C, ECL310, RAVK
Gross weight
125 Kilogram
Net weight
125 Kilogram
Volume
0.684 Cubic meter
EAN
5706561321718
Application type
Indirect Heating & Primary connected DHW cylinder
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
internal thread
Circulation pipe size
Ø18
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Included
Depth with cover [mm]
570 mm
Description
Substation - Indirect Heating + DHW cylinder
DH connection size
3/4"
DH connection type
internal thread
DH pipe size
Ø18
DHW circulation
Optional
DHW connection size
3/4"
DHW connection type
internal thread
DHW Control type
Thermostatic
DHW controller name
RAVK
DHW pipe size
Ø18
DHW tank circuit - control
Thermostatic
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
3/4"
HE connection type
internal thread
HE pipe size
Ø18
Heating circuit - control
ECL310
Heating control type
Electronic
Heating controller name
ECL310
Height with cover [mm]
1910 mm
HEX heating brazed/gasketed material
Brazed copper
Hot water tank volume [l]
105 L
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
d457aeb9-ee89-4efe-84f2-52db46c8e7f5
Station size type
Type 2-2
Supply temperature construction [˚C]
120 °C
Supply voltage [V]
230 V
Tank material
Enamelled steel
Type
Termix BVX FI RO
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
560 mm
