144H2554
Part Number: 144H2554
Product Information
Extended Description

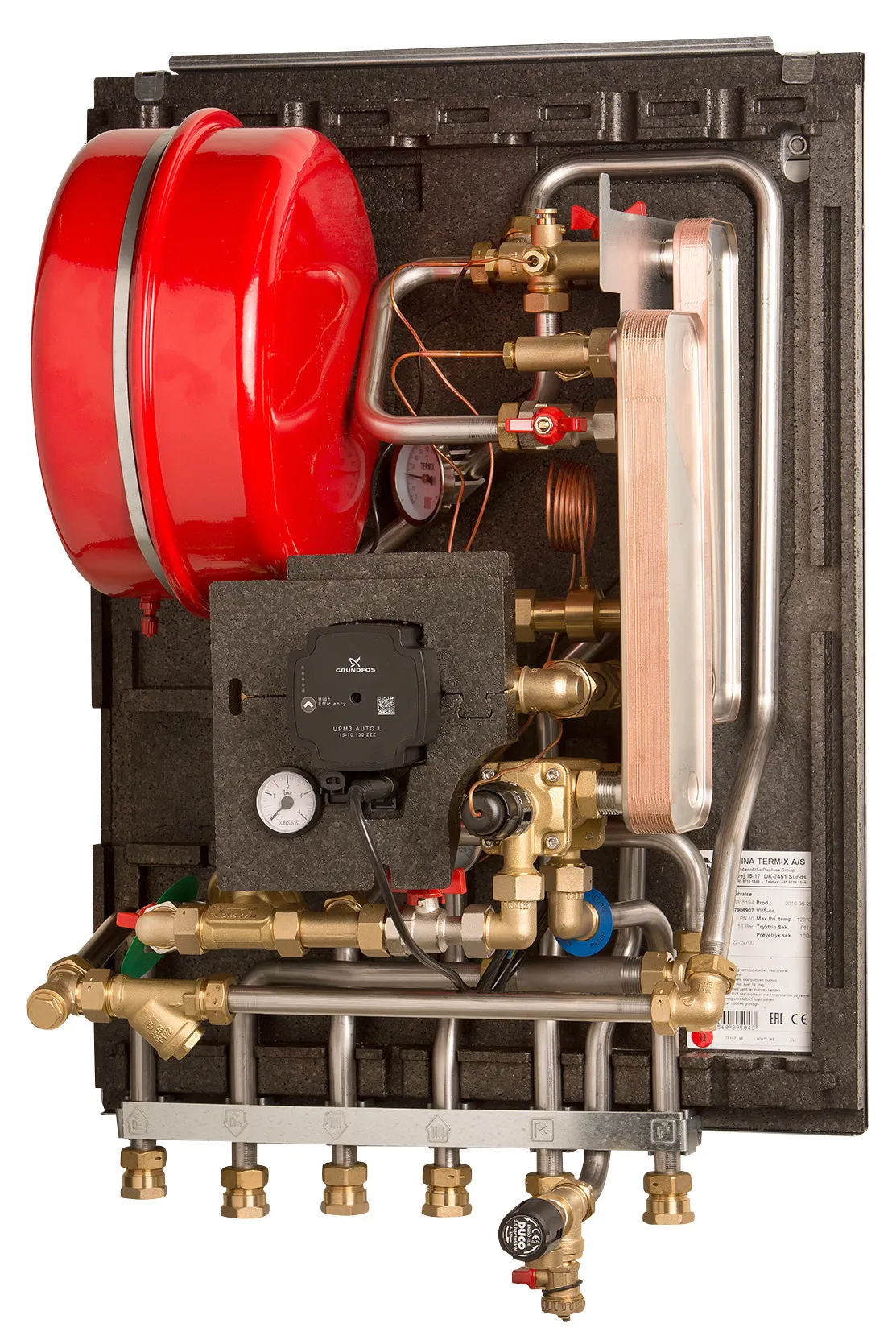

144H2554 Danfoss: Product Type: Termix VVX-I FI, Type 2-2, 16 bar, 120 °C, Thermostatic valve, IHPT
Gross weight
35 Kilogram
Net weight
34 Kilogram
Volume
0.152 Cubic meter
EAN
5706561479860
Application type
Indirect heating & Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Extra
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
430 mm
Depth without cover [mm]
375 mm
Description
Indirect Heating & Instantaneous DHW
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW circulation
Extra
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
IHPT
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heating circuit - control
Thermostatic valve
Heating control type
Thermostatic + delta p controller
Heating controller name
RAVK
Height with cover [mm]
800 mm
Height without cover [mm]
800 mm
HEX DHW brazed/gasketed material
Brazed copper
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
2cf2d6d1-a4da-4873-8c49-543af65ea4f4
Station size type
Type 2-2
Supply temperature construction [˚C]
120 °C
Supply voltage [V]
230 V
Type
Termix VVX-I FI
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
540 mm
Width without cover [mm]
530 mm
