144H2594
Part Number: 144H2594
Product Information
Extended Description

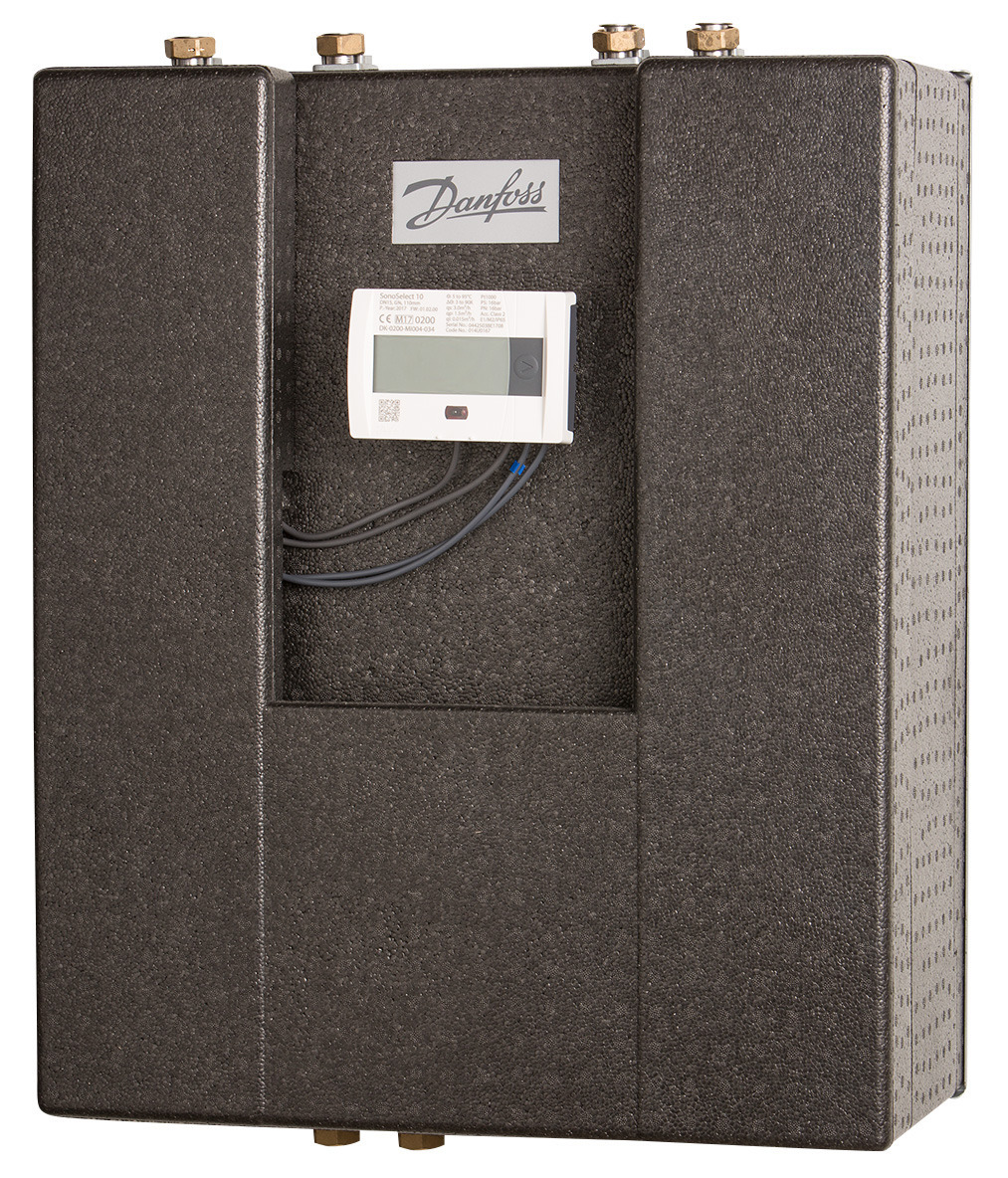

144H2594 Danfoss: Product Type: Termix VVX-I-R FI, Type 2-4, 10 bar, 99 °C, Thermostatic valve, IHPT
Gross weight
30 Kilogram
Net weight
29 Kilogram
Volume
0.086 Cubic meter
EAN
5706561500991
Application type
Indirect heating & Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Contain batteries
No
Cover option
Without
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
235 mm
Depth without cover [mm]
235 mm
Description
Indirect Heating & Instantaneous DHW
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW circulation
Optional
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
IHPT
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heating circuit - control
Thermostatic valve
Heating control type
Delta p controller + zone valve
Heating controller name
RAVK
Height with cover [mm]
690 mm
Height without cover [mm]
690 mm
HEX DHW brazed/gasketed material
Brazed copper
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
f5ee83e9-d6cb-42ba-b0b9-ed4213abbc55
Station size type
Type 2-4
Supply temperature construction [˚C]
99 °C
Supply voltage [V]
230 V
Type
Termix VVX-I-R FI
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
528 mm
Width without cover [mm]
528 mm
