144H2706
Part Number: 144H2706
Product Information
Extended Description

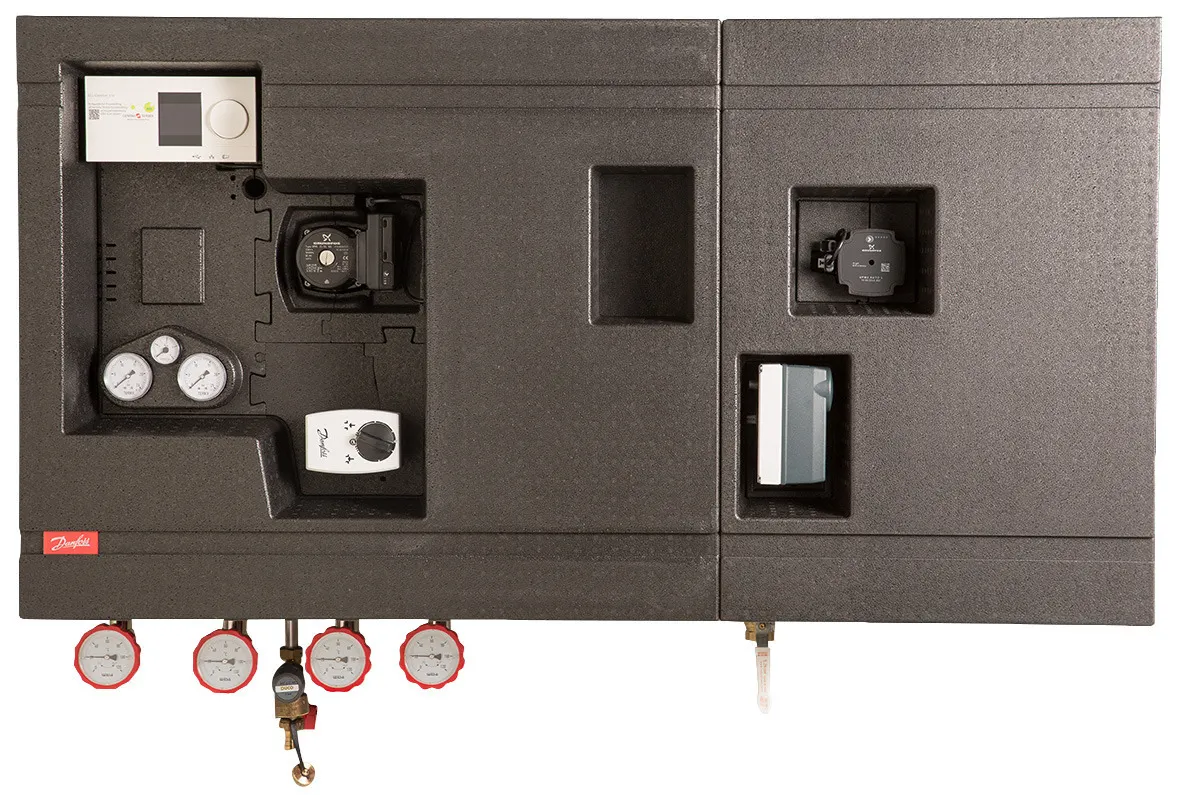

144H2706 Danfoss: Product Type: Termix Compact 28 VVX-FI, Type 1-3, 16 bar, 110 °C, ECL310, ECL310
Gross weight
95 Kilogram
Net weight
94 Kilogram
Volume
0.52 Cubic meter
EAN
5706561561459
Application type
Indirect heating & Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
internal thread
Circulation pipe size
Ø18
Contain batteries
No
Cover option
Without
Depth without cover [mm]
400 mm
Description
Substations - Indirect Heating + DHW
DH connection size
G1"
DH connection type
G int. Thread
DH pipe size
Ø28
DHW circulation
Yes
DHW connection size
1"
DHW connection type
internal thread
DHW Control type
Electronic
DHW controller name
ECL310
DHW pipe size
Ø28
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
1"
HE connection type
G int. Thread
HE pipe size
Ø28
Heating circuit - control
ECL310
Heating control type
Electronic
Heating controller name
ECL310
Height without cover [mm]
890 mm
HEX DHW brazed/gasketed material
Brazed copper
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
2abb1b92-7db8-421f-8323-30e9c2359118
Station size type
Type 1-3
Supply temperature construction [˚C]
110 °C
Supply voltage [V]
230 V
Type
Termix Compact 28 VVX-FI
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width without cover [mm]
1460 mm
