144H2882
Part Number: 144H2882
Product Information
Extended Description

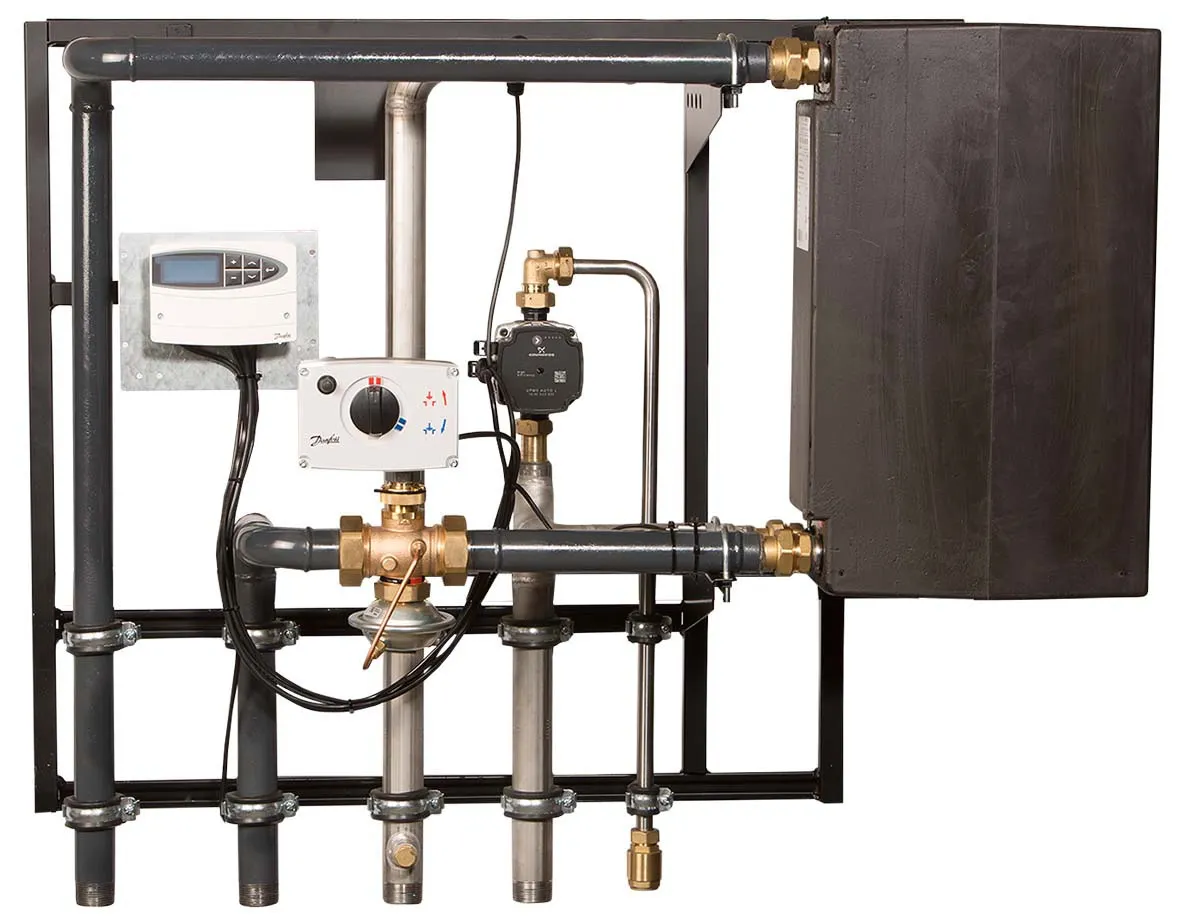

144H2882 Danfoss: Product Type: Termix BV E, Type 1, 16 bar, 110 °C, ECL110
Gross weight
80 Kilogram
Net weight
79 Kilogram
Volume
0.675 Cubic meter
EAN
5706561690371
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
internal thread
Circulation pipe size
Ø18
Contain batteries
No
Cover material
Without
Cover option
No
Depth with cover [mm]
0 mm
Depth without cover [mm]
450 mm
Description
BV.Unit 32/32E ECL110/116/Wall Model
DH connection size
1 1/4"
DH connection type
G ext. thread
DH pipe size
DN32
DHW circulation
Yes
DHW connection size
1 1/4"
DHW connection type
G ext. thread
DHW Control type
Electronic
DHW controller name
ECL110
DHW pipe size
DN32
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
0 mm
Height without cover [mm]
1000 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
ec2fe781-8c7e-4eaa-a19a-ea6a35489dde
Station size type
Type 1
Supply temperature construction [˚C]
110 °C
Supply voltage [V]
230 V
Type
Termix BV E
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
0 mm
Width without cover [mm]
1500 mm
