144H3045
Part Number: 144H3045
Product Information
Extended Description

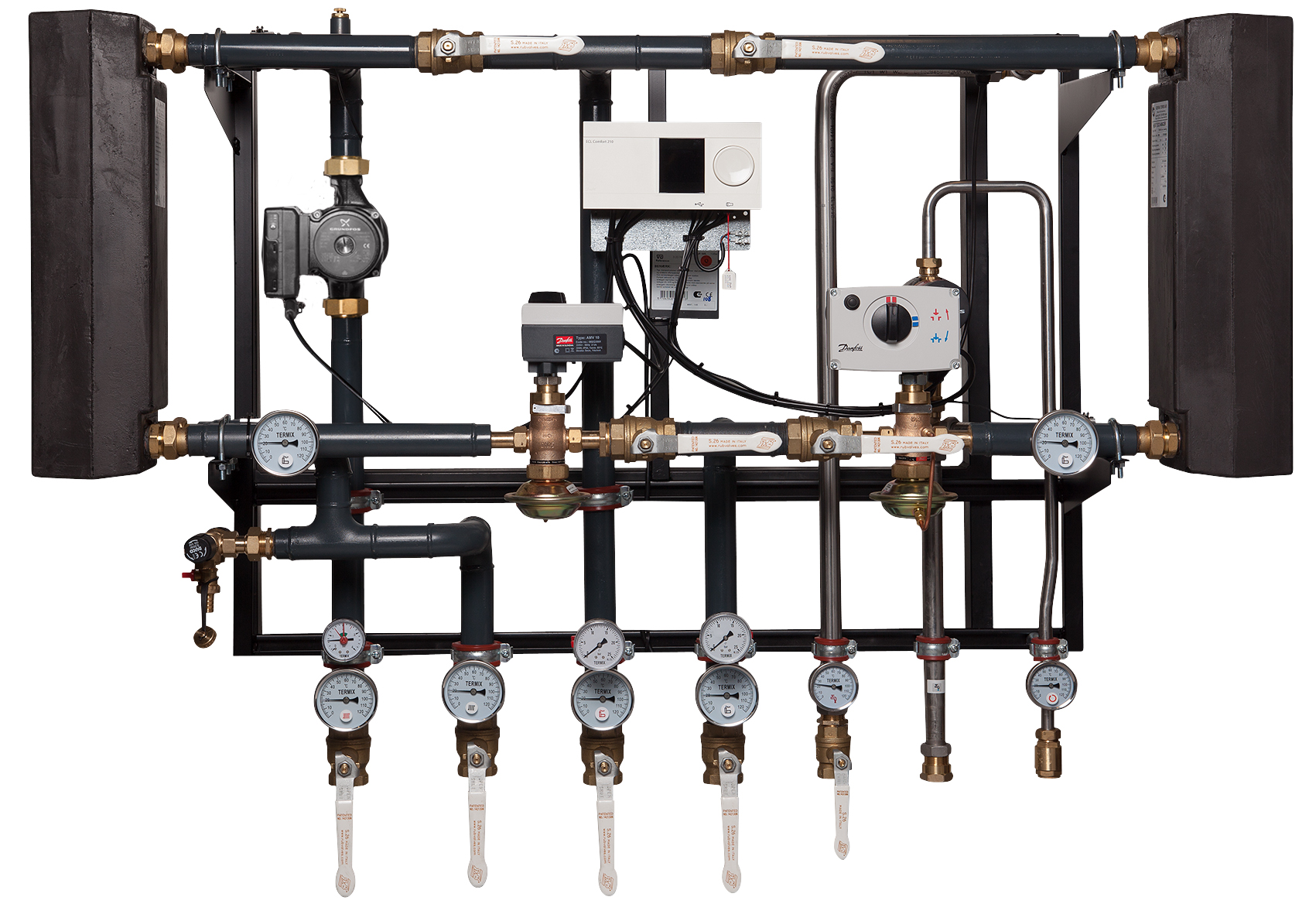

144H3045 Danfoss: Product Type: Termix Compact 32 VVX, Type 1, 16 bar, 120 °C, ECL310, ECL310
Gross weight
40 Kilogram
Net weight
39 Kilogram
Volume
0.708 Cubic meter
EAN
5706561825322
Application type
Indirect heating
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
internal thread
Circulation pipe size
Ø18
Contain batteries
No
Cover option
No
Depth without cover [mm]
400 mm
Description
Substations - Indirect Heating + DHW
DH connection size
1 1/4"
DH connection type
internal thread
DH pipe size
DN32
DHW circulation
Included
DHW connection size
1"
DHW connection type
internal thread
DHW Control type
Electronic
DHW controller name
ECL310
DHW pipe size
DN20
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
DN32
HE connection type
internal thread
Heating circuit - control
ECL310
Heating control type
Electronic
Heating controller name
ECL310
Height without cover [mm]
1000 mm
HEX DHW brazed/gasketed material
Brazed copper
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
888a7a0d-8a48-43b0-8ae4-ba9facb15d67
Station size type
Type 1
Supply temperature construction [˚C]
120 °C
Supply voltage [V]
230 V
Type
Termix Compact 32 VVX
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width without cover [mm]
1770 mm
