144H3160
Part Number: 144H3160
Product Information
Extended Description

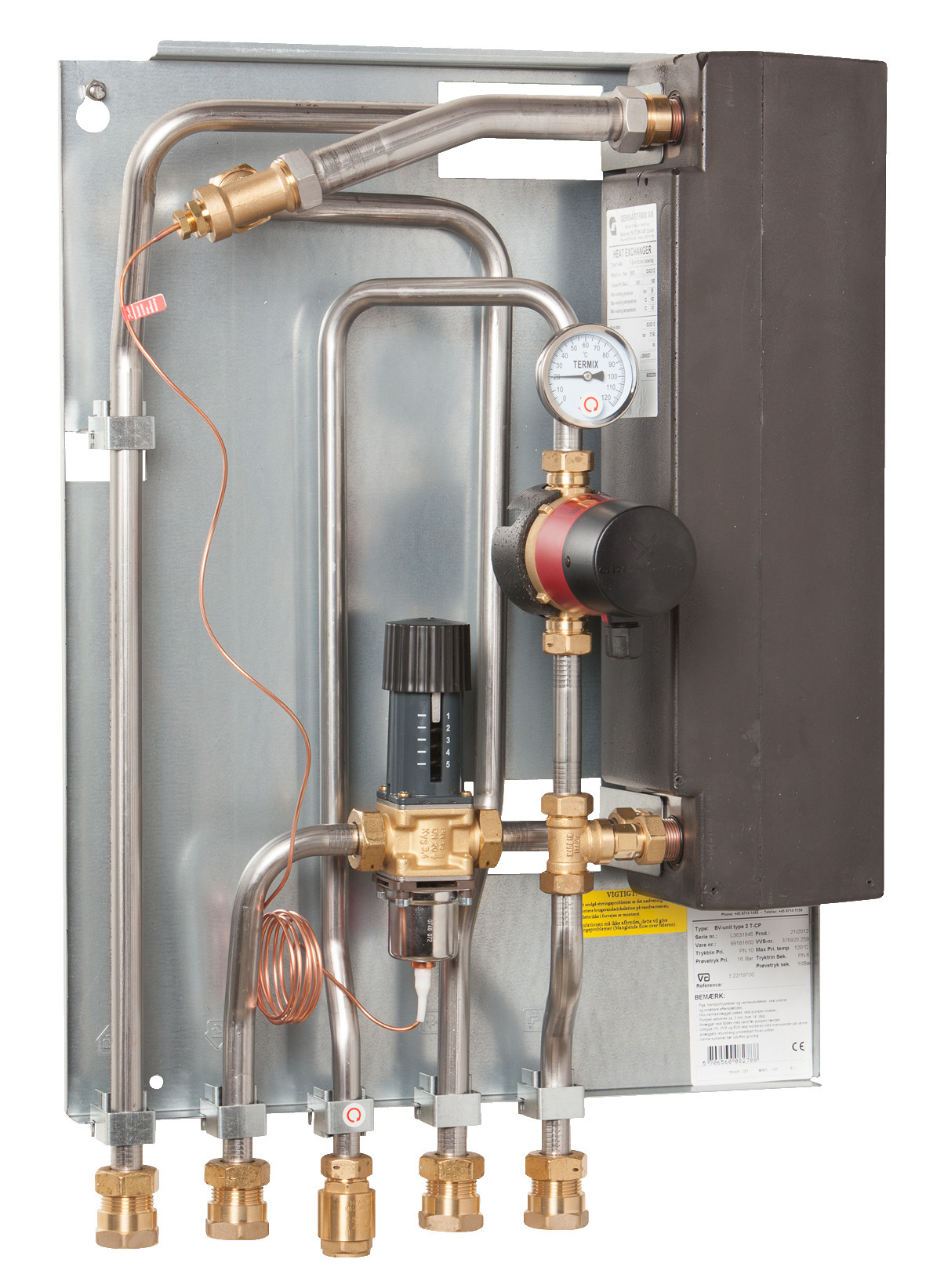

144H3160 Danfoss: Product Type: Termix BV T, Type 4 T-CP, 16 bar, 110 °C, AVTB
Gross weight
23 Kilogram
Net weight
22 Kilogram
EAN
5706561972699
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
G int. Thread
Circulation pipe size
Ø18
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Extra
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
360 mm
Depth without cover [mm]
240 mm
Description
Instantaneous water heater
DH connection size
1"
DH connection type
G int. Thread
DH pipe size
Ø20
DHW circulation
Included
DHW connection size
1"
DHW connection type
G int. Thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø20
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
800 mm
Height without cover [mm]
660 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
d1089f51-1ea2-4a08-90cb-4d70ea7d487c
Station size type
Type 4 T-CP
Supply temperature construction [˚C]
110 °C
Type
Termix BV T
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
540 mm
Width without cover [mm]
510 mm
Termix BV
Specifying the right district heating substation makes commercial sense
First ever district heating system with substations in Turkey
Teknopark Istanbul: First-mover in district energy
Termix BV
Termix BV
Safety Note
Modern heating technology for housing associations
Instantaneous Water Heater type Termix BV with thermostatic control
