144H3161
Part Number: 144H3161
Product Information
Extended Description

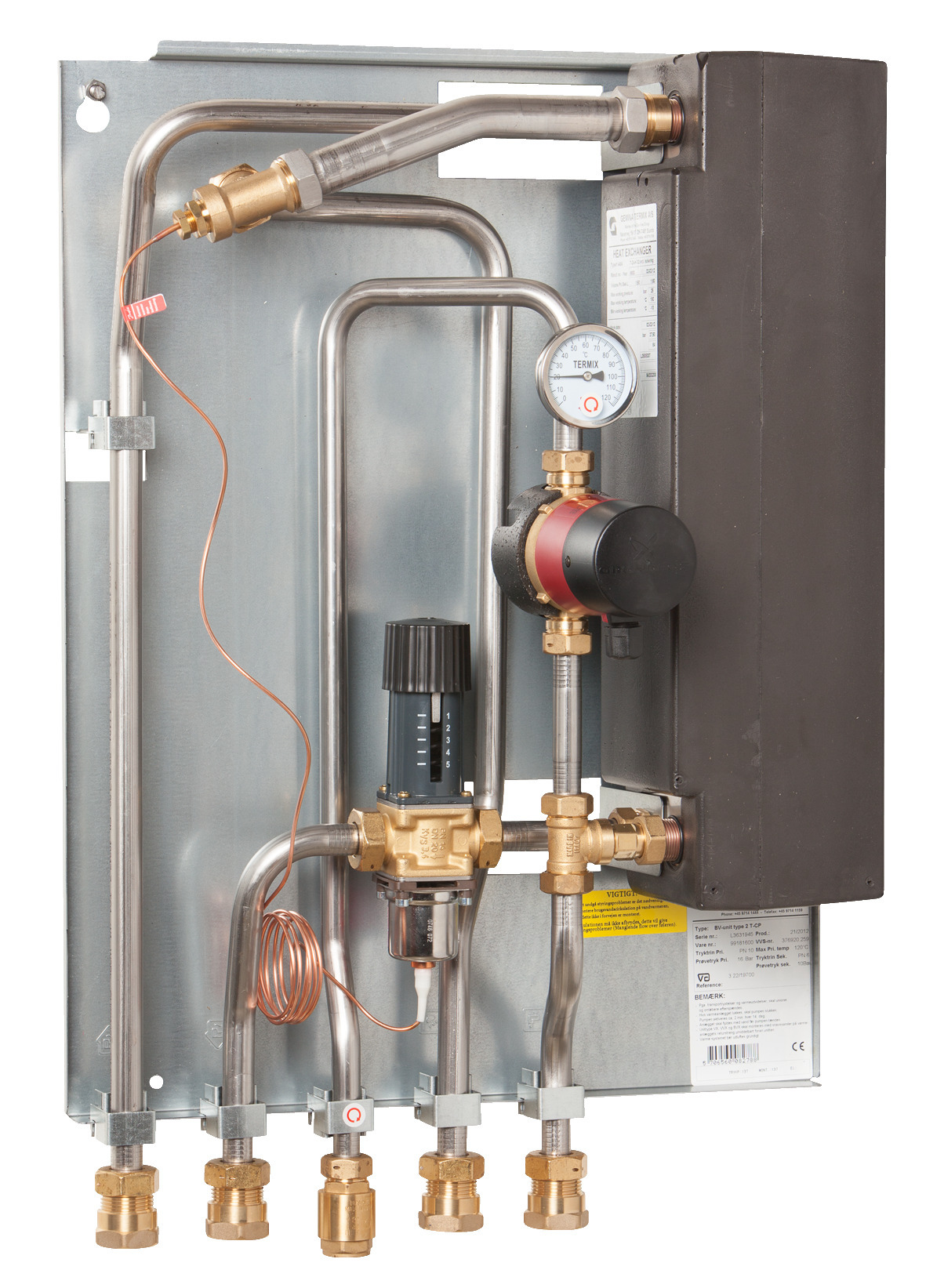

144H3161 Danfoss: Product Type: Termix BV T, Type 5 T-CP, 16 bar, 110 °C, AVTB
Gross weight
24 Kilogram
Net weight
23 Kilogram
Volume
0.098 Cubic meter
EAN
5706561972705
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
G int. Thread
Circulation pipe size
Ø18
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Extra
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
360 mm
Depth without cover [mm]
240 mm
Description
Instantaneous water heater
DH connection size
1"
DH connection type
G int. Thread
DH pipe size
Ø20
DHW circulation
Included
DHW connection size
1"
DHW connection type
G int. Thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø20
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
800 mm
Height without cover [mm]
660 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
43d27330-005a-4305-b1ea-c882384018bf
Station size type
Type 5 T-CP
Supply temperature construction [˚C]
110 °C
Type
Termix BV T
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
540 mm
Width without cover [mm]
510 mm
