144H3163
Part Number: 144H3163
Product Information
Extended Description

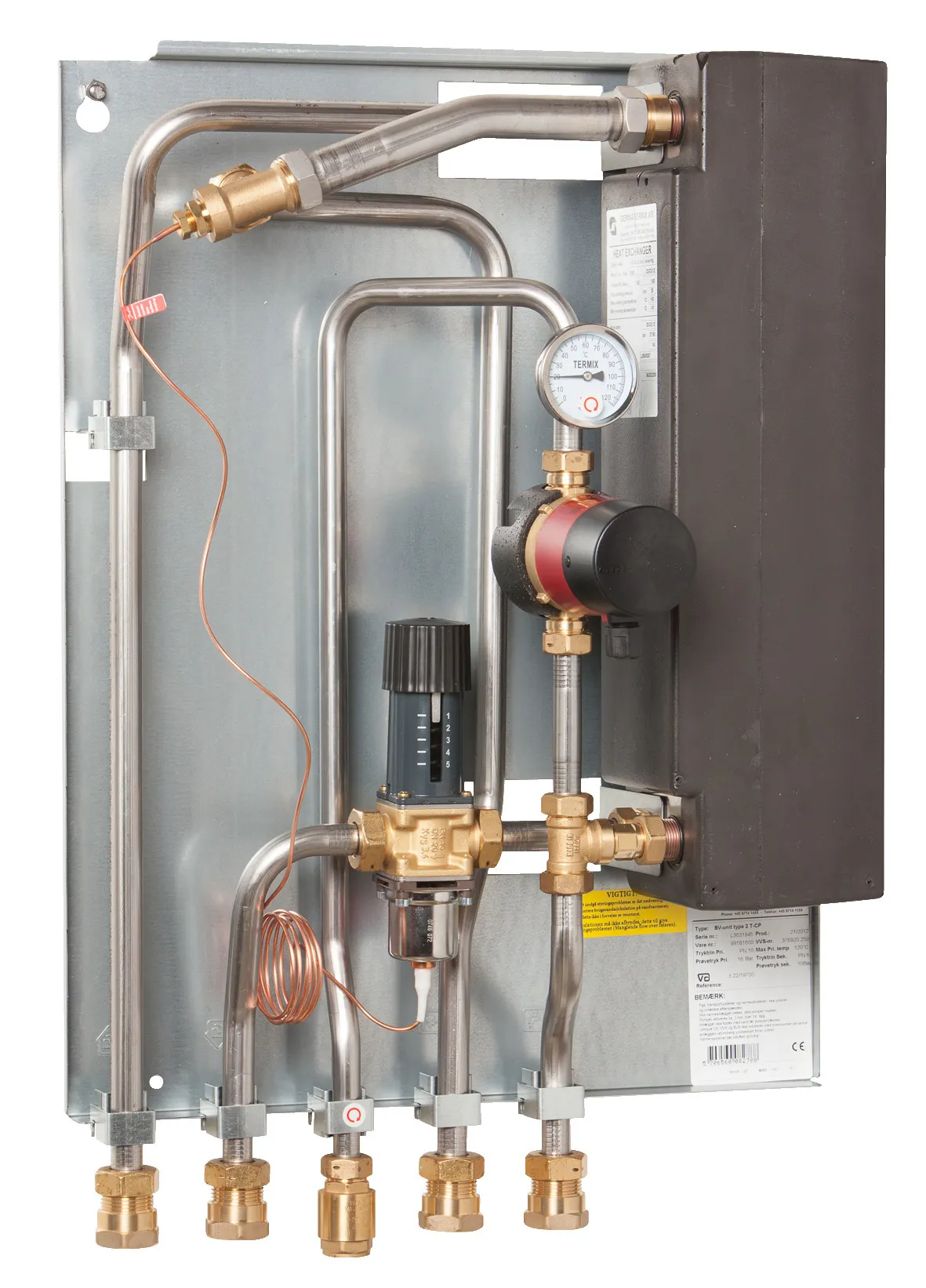

144H3163 Danfoss: Product Type: Termix BV T, Type 7 T-CP, 16 bar, 110 °C, AVTB
Gross weight
33 Kilogram
Net weight
32 Kilogram
Volume
0.255 Cubic meter
EAN
5706561972743
Application type
Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
G int. Thread
Circulation pipe size
Ø18
Contain batteries
No
Cover material
White-lacquered steel sheet
Cover option
Extra
DCW static pressure [bar] [Min]
1 bar
Depth with cover [mm]
522 mm
Depth without cover [mm]
340 mm
Description
Instantaneous water heater
DH connection size
1"
DH connection type
G int. Thread
DH pipe size
Ø28
DHW circulation
Included
DHW connection size
1"
DHW connection type
G int. Thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø28
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Height with cover [mm]
1000 mm
Height without cover [mm]
1000 mm
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
195ed745-3448-475e-808a-4e3091ccd753
Station size type
Type 7 T-CP
Supply temperature construction [˚C]
110 °C
Type
Termix BV T
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width with cover [mm]
950 mm
Width without cover [mm]
800 mm
Termix BV
Specifying the right district heating substation makes commercial sense
First ever district heating system with substations in Turkey
Teknopark Istanbul: First-mover in district energy
Termix BV
Termix BV
Safety Note
Modern heating technology for housing associations
Instantaneous Water Heater type Termix BV with thermostatic control
