144H3340
Part Number: 144H3340
Product Information
Extended Description

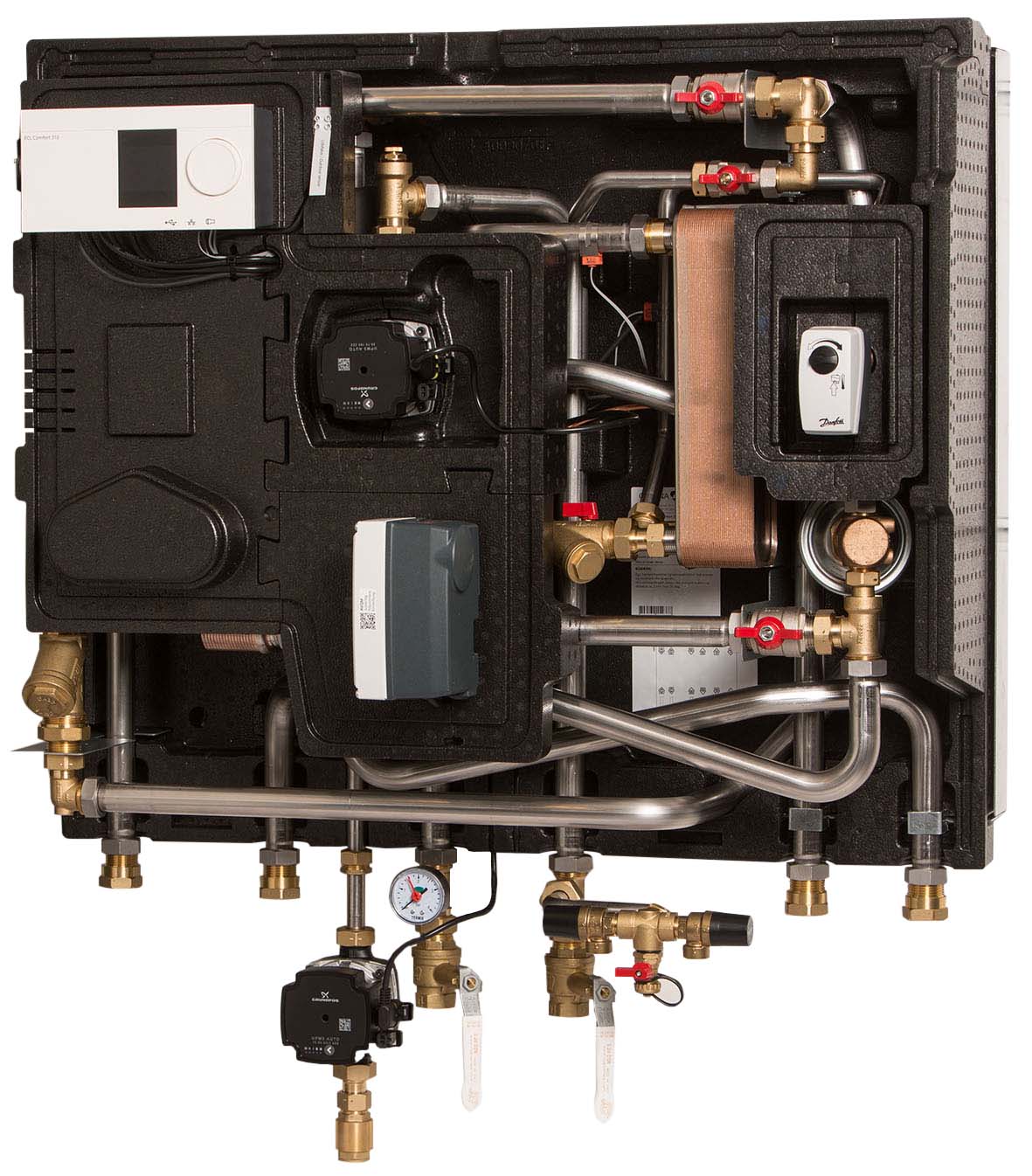

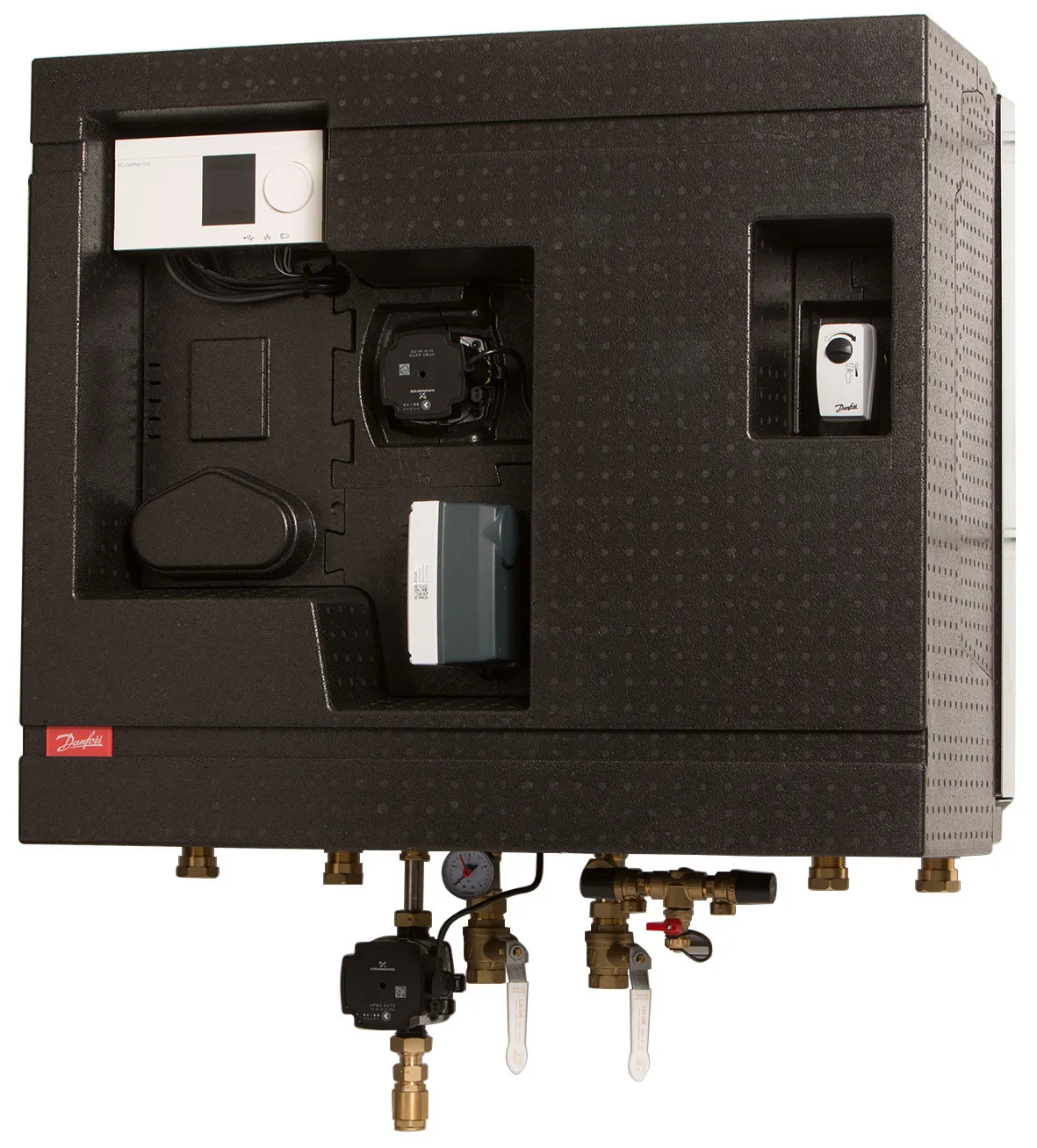

144H3340 Danfoss: Product Type: Termix Compact 28 MS VVX, Type 1-1, 16 bar, 110 °C, ECL310, ECL310
Gross weight
60 Kilogram
Net weight
58 Kilogram
Volume
0.385 Cubic meter
EAN
5706562184640
Application type
Indirect heating & Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
internal thread
Circulation pipe size
Ø18
Contain batteries
No
Cover option
No
Depth without cover [mm]
400 mm
Description
Substations - Indirect Heating + DHW
DH connection size
1"
DH connection type
internal thread
DH pipe size
Ø28
DHW circulation
Yes
DHW connection size
1"
DHW connection type
internal thread
DHW Control type
Electronic
DHW controller name
ECL310
DHW pipe size
Ø28
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
1"
HE connection type
internal thread
HE pipe size
Ø28
Heating circuit - control
ECL310
Heating control type
Electronic
Heating controller name
ECL310
Height without cover [mm]
1063 mm
HEX DHW brazed/gasketed material
Brazed copper
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
c6b27a31-3a40-427a-acd5-2ff6f6af83e0
Station size type
Type 1-1
Supply temperature construction [˚C]
110 °C
Supply voltage [V]
230 V
Type
Termix Compact 28 MS VVX
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width without cover [mm]
905 mm
