144H3446
Part Number: 144H3446
Product Information
Extended Description

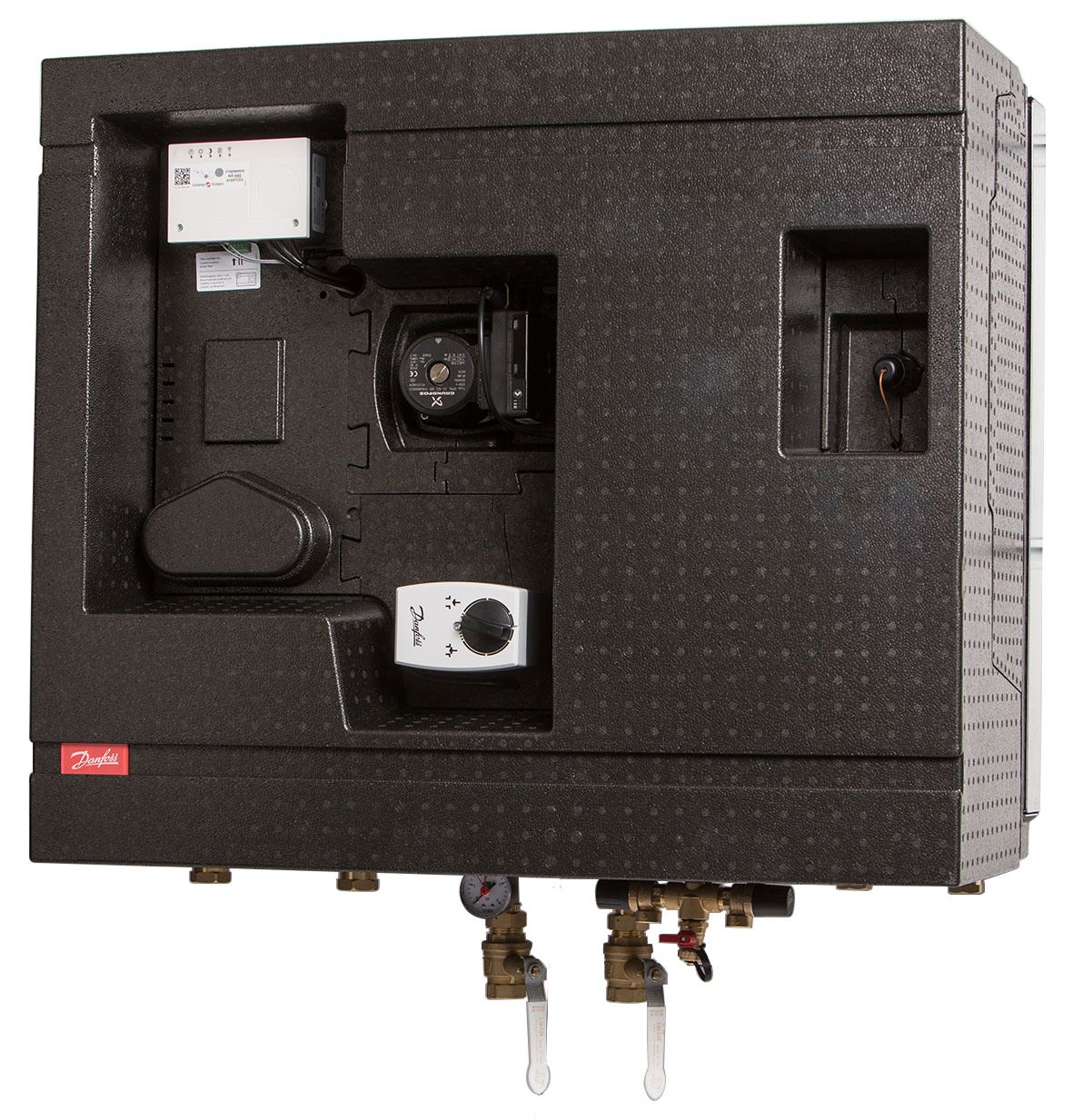

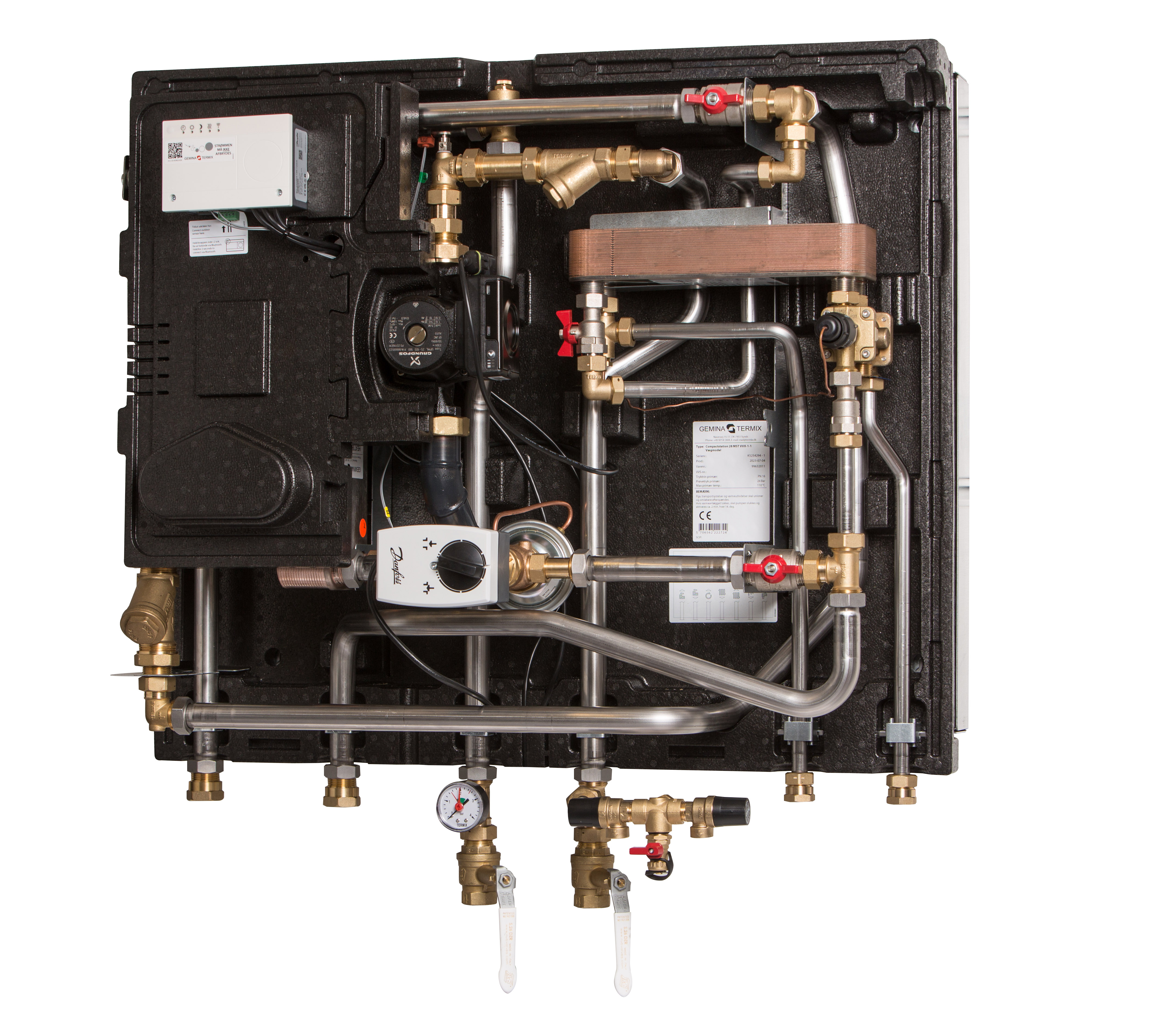

144H3446 Danfoss: Product Type: Termix Compact 28 MST VVX, Type 2-1, 16 bar, 110 °C, ECL120, IHPT
Gross weight
49 Kilogram
Net weight
47 Kilogram
Volume
0.331 Cubic meter
EAN
5706562243521
Application type
Indirect heating & Instantaneous DHW
CE evaluated
Yes
China RoHS compliance
Out of scope
Circulation connection size
3/4"
Circulation connection type
G int. Thread
Circulation pipe size
Ø18
Contain batteries
No
Cover option
No
Depth without cover [mm]
400 mm
Description
District heating substation for indirect heating and
instantaneous domestic hot water.
DH connection size
G1"
DH connection type
internal thread
DH pipe size
Ø28
DHW circulation
Optional
DHW connection size
G3/4"
DHW connection type
internal thread
DHW Control type
Flow/thermostatic
DHW controller name
IHPT
DHW pipe size
Ø18
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
1"
HE connection type
internal thread
HE pipe size
Ø28
Heating circuit - control
ECL120
Heating control type
Electronic
Heating controller name
ECL120
Height without cover [mm]
914 mm
HEX DHW brazed/gasketed material
Brazed copper
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
SCIP dossier no.
77bbfe63-c8bd-4917-927f-82cdb876e942
Station size type
Type 2-1
Supply temperature construction [˚C]
110 °C
Supply voltage [V]
230 V
Type
Termix Compact 28 MST VVX
UK RoHS compliance
Out of scope
UL evaluated
Out of scope
Width without cover [mm]
905 mm
