145B0007

Part Number: 145B0007
145B0007
Manufacturer
Danfoss
Part number
145B0007
Category

Product Information

Extended Description

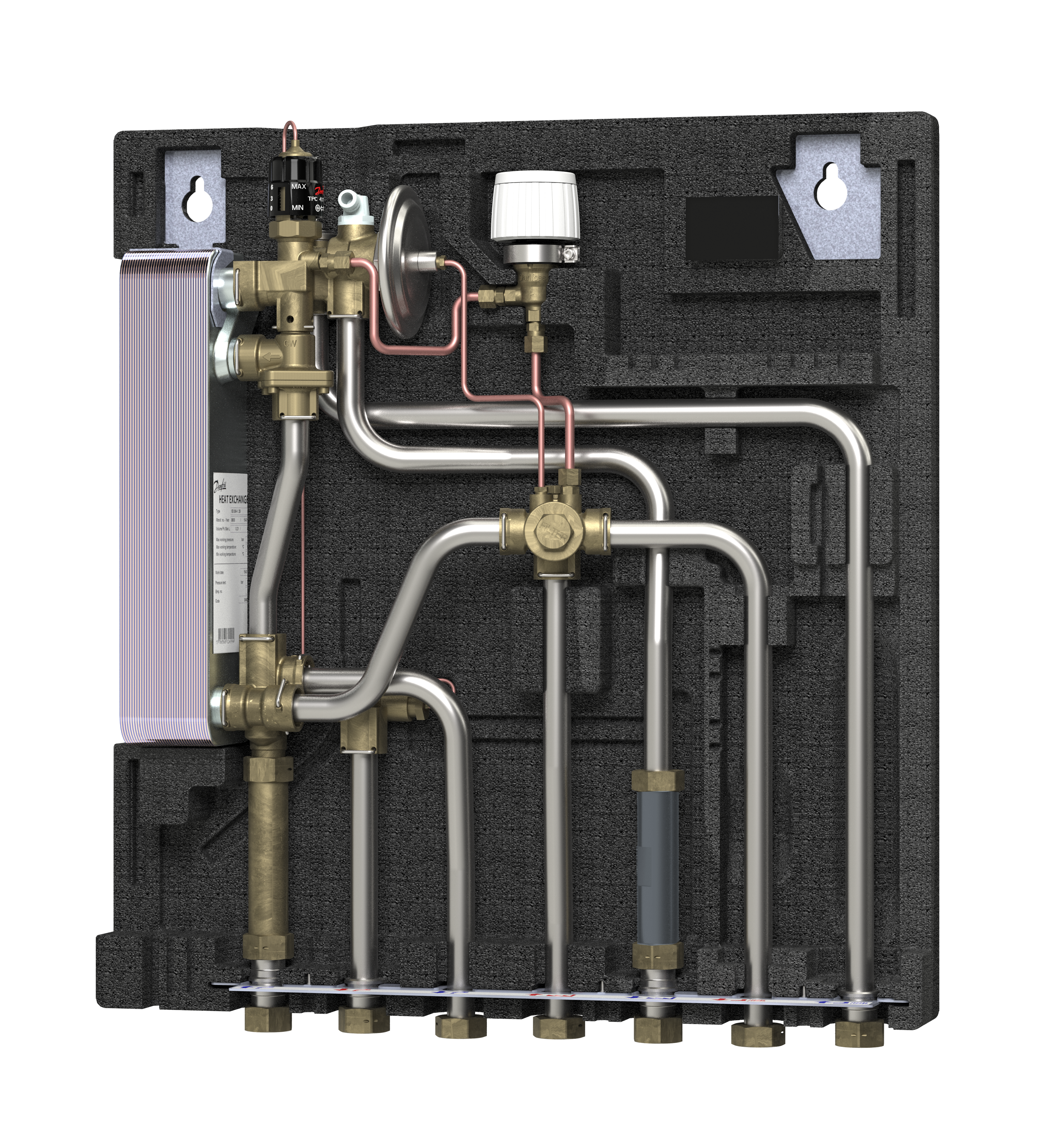

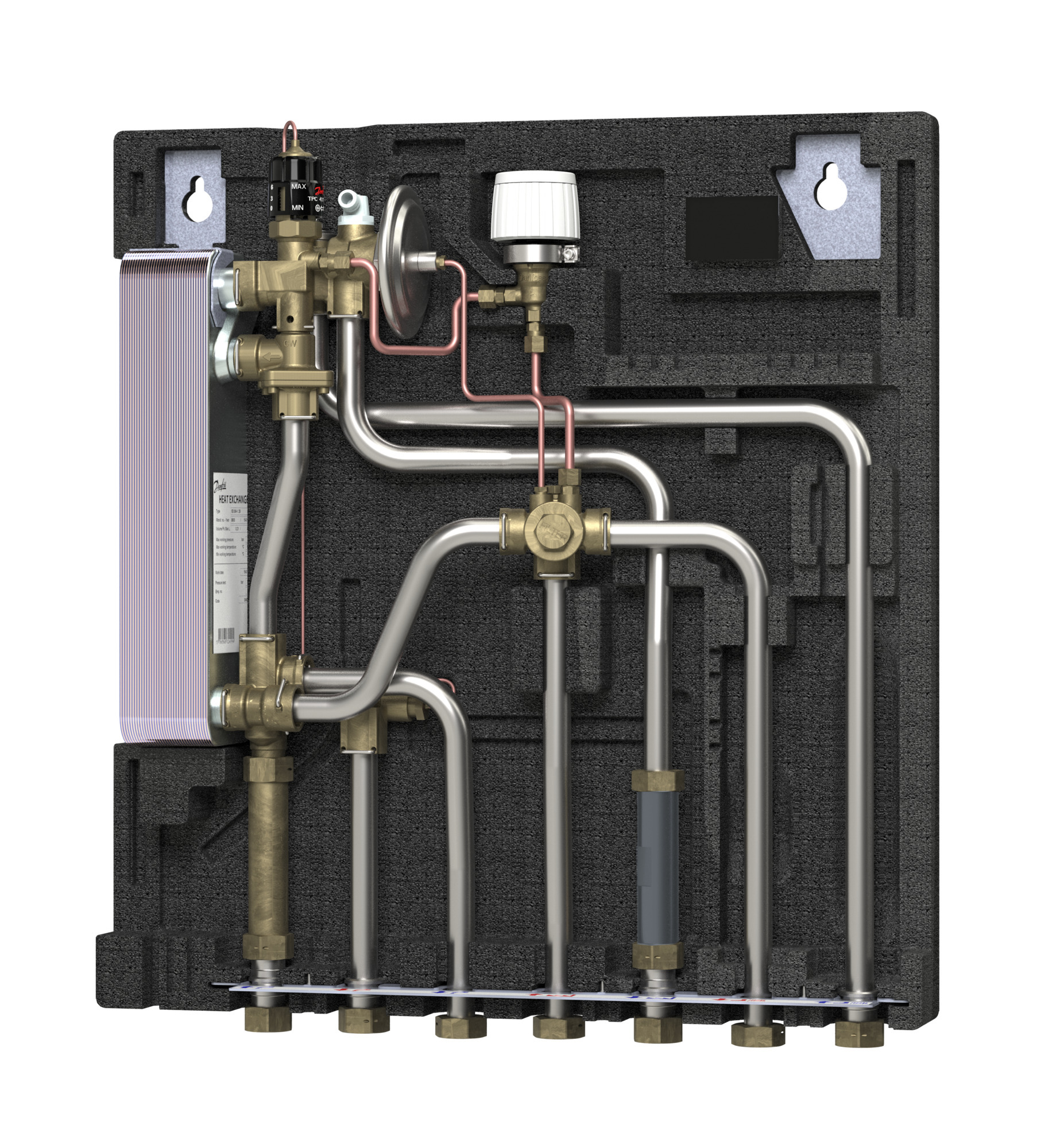

145B0007 Danfoss: EvoFlat FSS 3, Radiator heating, DHW HEX copper type 3, Summer bypass
Gross weight
12.1 Kilogram
Net weight
10.9 Kilogram
Volume
0.354 Hectoliter
EAN
5702424652845
Air vent
Yes
Application type
Direct Heating & Instantaneous DHW
CE evaluated
Yes
Connection direction
Bottom
Cover material
EPP
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
150 mm
Depth without cover [mm]
110 mm
Description
EvoFlat FSS 3, Radiator heating, DHW HEX copper type 3, Summer bypass
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
55 kW
DHW capacity [kW] [Min]
38 kW
DHW circulation
Without,No,No,No,No
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW pipe size
Ø18
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating control type
Differential pressure
Heating system type
Radiator heating
Height with cover [mm]
575 mm
Height without cover [mm]
575 mm
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Copper
In scope of WEEE
No
Metering
Prepared for water and energy meter
Package depth [mm]
600 mm
Package height [mm]
160 mm
Package width [mm]
800 mm
Piping
Stainless steel
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 3
Strainer
Primary
Summer bypass
Yes
Supply temperature construction [˚C]
95 °C
Type
EvoFlat FSS
Width with cover [mm]
545 mm
Width without cover [mm]
545 mm
