145B0093
Part Number: 145B0093
Product Information
Extended Description

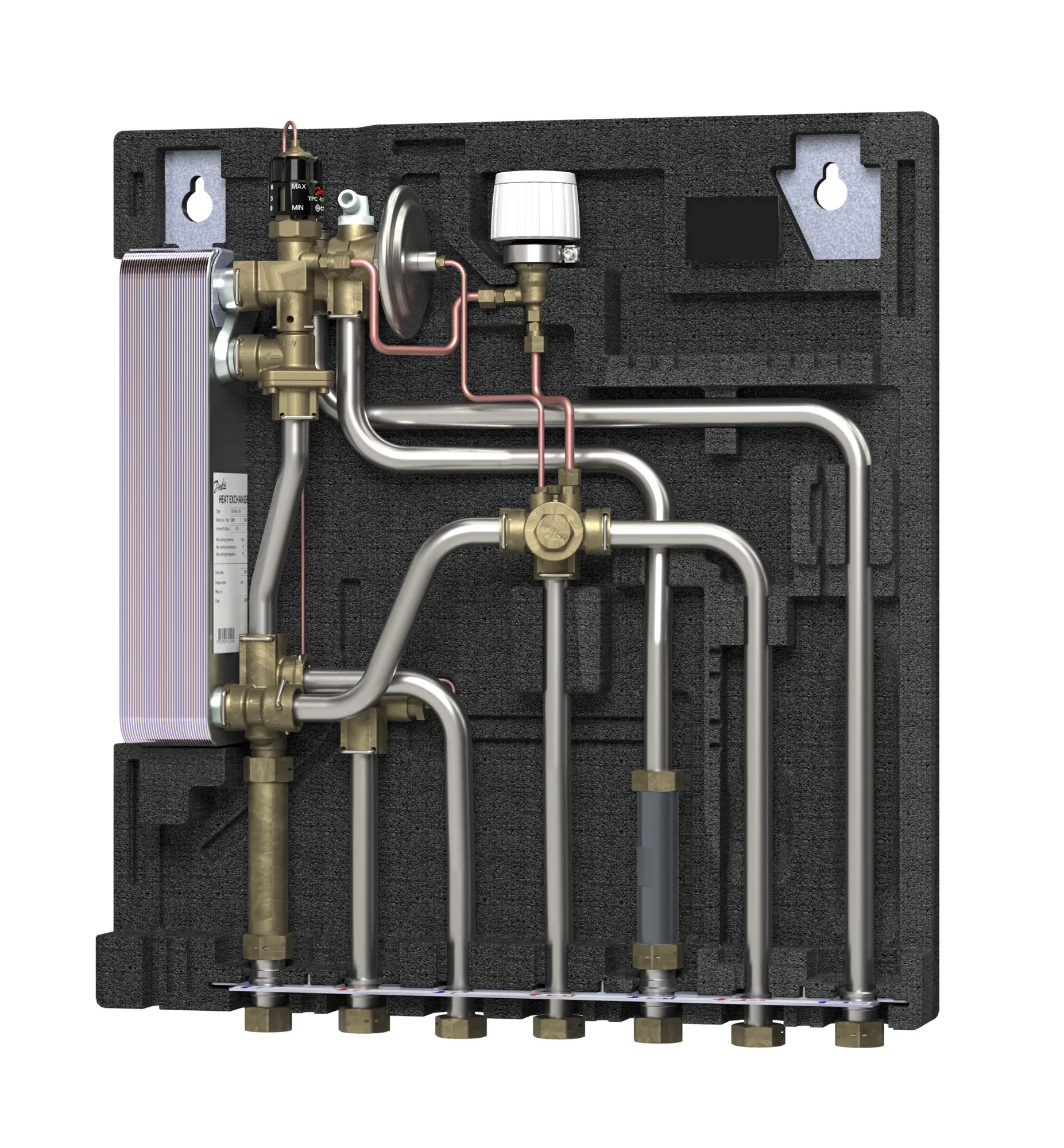

145B0093 Danfoss: EvoFlat FSS FR2, Radiator heating, DHW HEX copper type 2, Summer bypass, Zone valve, Energy and water meter
Gross weight
16.5 Kilogram
Net weight
14.396 Kilogram
Volume
76.42 Liter
EAN
5702428551144
Air vent
Yes
Application type
Direct Heating & Instantaneous DHW
Connection direction
Bottom
Contain batteries
No
Cover material
EPP
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
150 mm
Depth without cover [mm]
110 mm
Description
EvoFlat FSS FR2, Radiator heating, DHW HEX copper type 2, Summer bypass, Zone valve, Energy and water meter
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
49 kW
DHW capacity [kW] [Min]
45 kW
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW pipe size
Ø18
Differential pressure controller
Integrated
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating circuit - control
Thermostat
Heating control type
Differential pressure + zone valve
Heating controller name
TPC-M
Height with cover [mm]
575 mm
Height without cover [mm]
575 mm
HEX heating brazed/gasketed material
Copper
Metering
Energy meter installed
Package depth [mm]
600 mm
Package height [mm]
160 mm
Package width [mm]
800 mm
Piping
Stainless steel
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Strainer
Primary
Summer bypass
Yes
Supply temperature construction [˚C]
95 °C
Type
EvoFlat FSS
Width with cover [mm]
545 mm
Width without cover [mm]
545 mm
