145B0141

Part Number: 145B0141
Manufacturer
Danfoss
Part number
145B0141
Category

Product Information

Extended Description

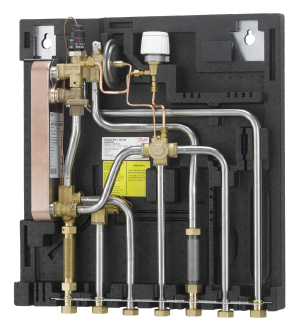

145B0141 Danfoss: EvoFlat FSS 1, Radiator heating, DHW HEX copper type 1
Gross weight
11.07 Kilogram
Net weight
9.87 Kilogram
EAN
5702424638627
Air vent
Yes
Application type
Direct Heating & Instantaneous DHW
CE evaluated
Yes
Connection direction
Bottom
Cover material
EPP
Depth with cover [mm]
150 mm
Depth without cover [mm]
110 mm
Description
EvoFlat FSS 1, Radiator heating, DHW HEX copper type 1
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
43 kW
DHW capacity [kW] [Min]
37 kW
DHW circulation
No,No,No
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Thermostatic
DHW controller name
TPC-M
DHW pipe size
Ø18
Differential pressure controller
Integrated
Electrical connection
230V 50 Hz
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating system type
Radiator heating
Height with cover [mm]
575 mm
Height without cover [mm]
575 mm
HEX heating brazed/gasketed material
Copper
In scope of WEEE
No
Metering
Prepared for water and energy meter
Package depth [mm]
600 mm
Package height [mm]
160 mm
Package width [mm]
800 mm
Piping
Stainless steel
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 1
Strainer
Primary
Summer bypass
No
Supply temperature construction [˚C]
95 °C
Type
EvoFlat FSS
Width with cover [mm]
545 mm
Width without cover [mm]
545 mm
