145B0302
Part Number: 145B0302
Product Information
Extended Description

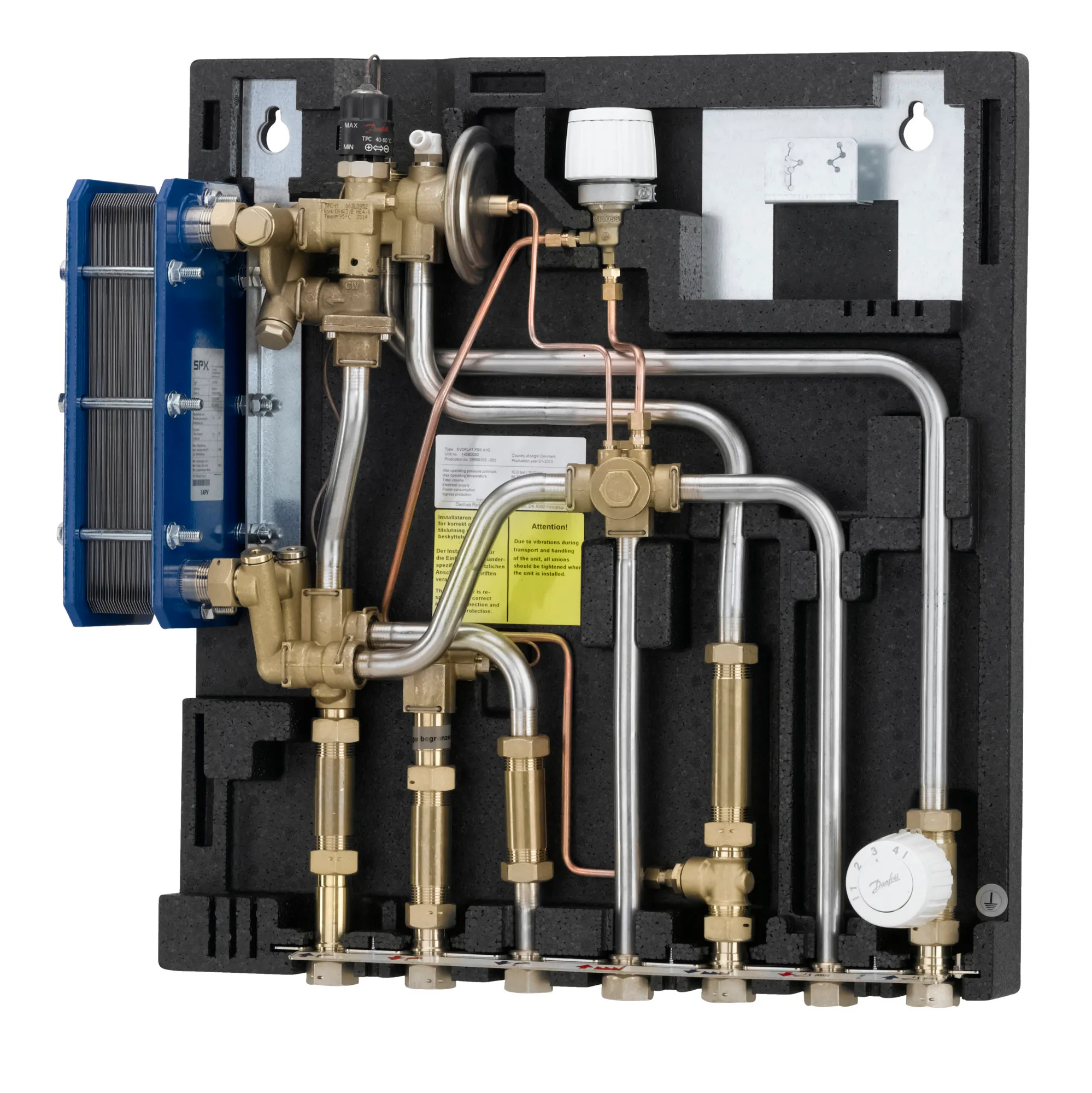

145B0302 Danfoss: EvoFlat FSSR A2 TPC-M o/front
Gross weight
13.7 Kilogram
Net weight
13 Kilogram
EAN
5702424285869
Application type
Direct Heating & Instantaneous DHW
Connection direction
Bottom
Contain batteries
No
Cover material
White-lacquered In wall
Cover option
Extra
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
153 mm
Depth without cover [mm]
110 mm
Description
EvoFlat FSSR A2 TPC-M o/front
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW]
37 kW
DHW circulation
Without,Without,Without,Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW HEX type
XB06H-1 26
DHW pipe size
Ø18
DHW re-circulation pump brand
Wilo
DHW re-circulation pump type
YONOS PARA Z15/7 RK
Differential pressure controller
Integrated
Fitting Piece
Energy meter return
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating circuit - control
Thermostat
Heating control type
Delta p controller
Heating controller name
TPC-M
Height with cover [mm]
590 mm
Height without cover [mm]
590 mm
HEX heating brazed/gasketed material
Copper
Insulation material
Without
Manufacturer's name
Danfoss
Number of households [Max]
2
Number of households [Min]
1
Package depth [mm]
600 mm
Package height [mm]
160 mm
Package width [mm]
800 mm
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Remarks
Insulated Flatstations
Station size type
Type 2
Supply temperature construction [˚C]
95 °C
Type
EvoFlat FSS A
Width with cover [mm]
545 mm
Width without cover [mm]
545 mm
