145B0503

Part Number: 145B0503
145B0503
Manufacturer
Danfoss
Part number
145B0503
Category

Product Information

Extended Description

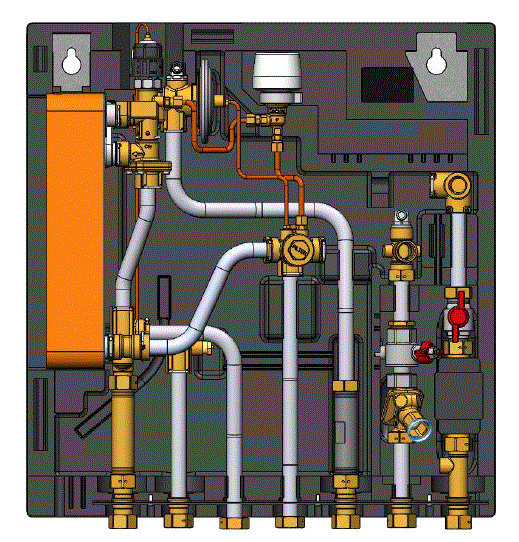

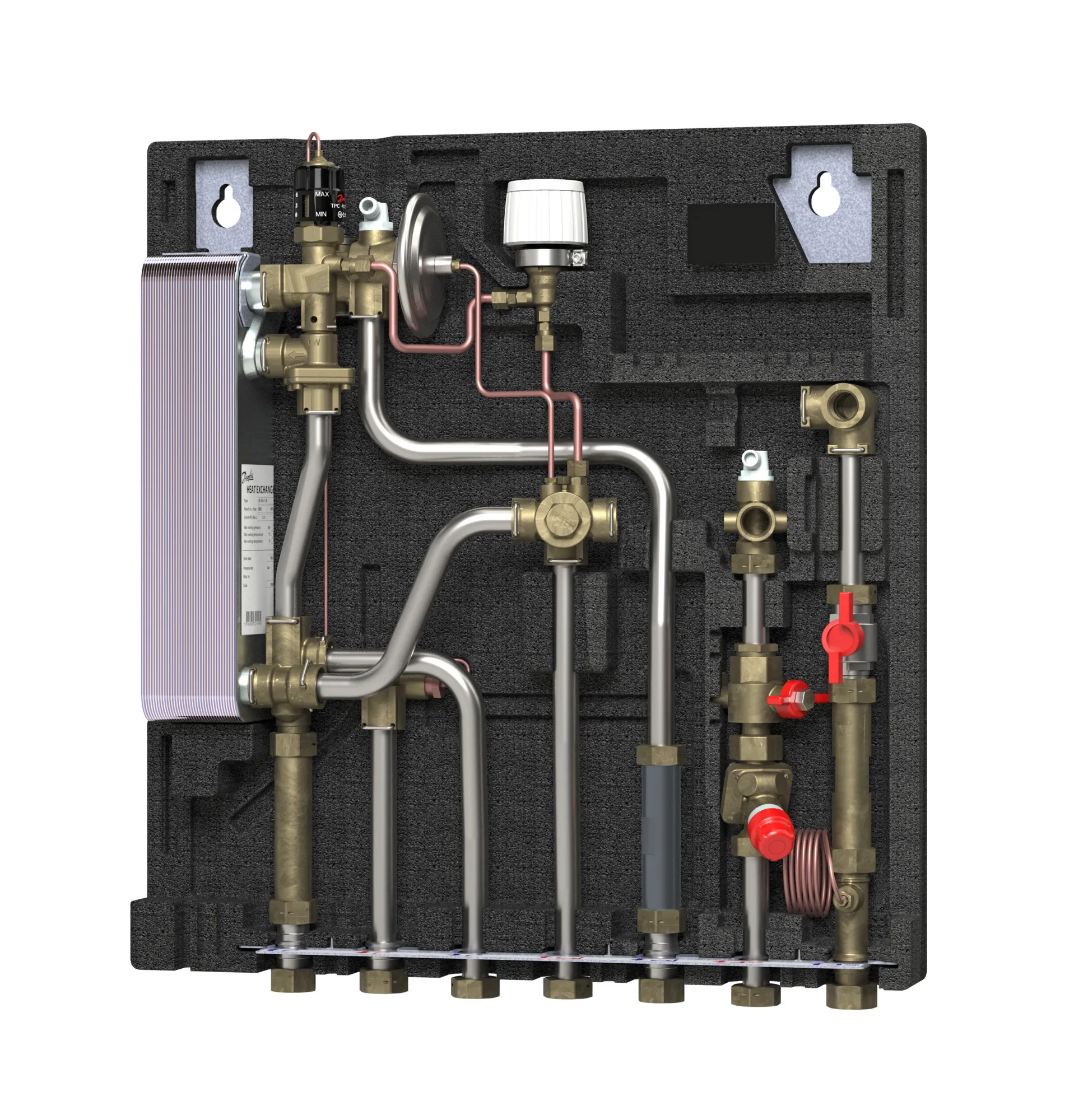

145B0503 Danfoss: EvoFlat Four Pipe 3 TPC-M W/Front
Gross weight
14.64 Kilogram
Net weight
13.44 Kilogram
Volume
82.11 Liter
EAN
5702424453718
Application type
Direct Heating & Instantaneous DHW
Contain batteries
No
Cover option
Extra
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
150 mm
Depth without cover [mm]
150 mm
Description
EvoFlat Four Pipe 3 TPC-M W/Front
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
51 kW
DHW capacity [kW] [Min]
34 kW
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW HEX type
XB06H-1 60
DHW pipe size
Ø18
Fitting Piece
Energy meter return and cold water meter X 3
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating circuit - control
Thermostat
Heating control type
Differential pressure
Heating HEX type
XB06H-1 60
Heating system type
Radiator and Floor heating
Height with cover [mm]
590 mm
Height without cover [mm]
590 mm
HEX heating brazed/gasketed material
Copper
Manufacturer's name
Danfoss
Number of households [Max]
2
Number of households [Min]
1
Package depth [mm]
200 mm
Package height [mm]
600 mm
Package width [mm]
600 mm
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 3
Supply temperature construction [˚C]
95 °C
Type
EvoFlat FSF
Width with cover [mm]
550 mm
Width without cover [mm]
550 mm
EvoFlat (Installation Guide) EvoFlat Four Pipe System for apartments, single- and multi-family houses Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 FSF 145B0503 Cover for flat station type Evoflat FSS
