145B0804

Part Number: 145B0804
145B0804
Manufacturer
Danfoss
Part number
145B0804
Category

Product Information

Extended Description

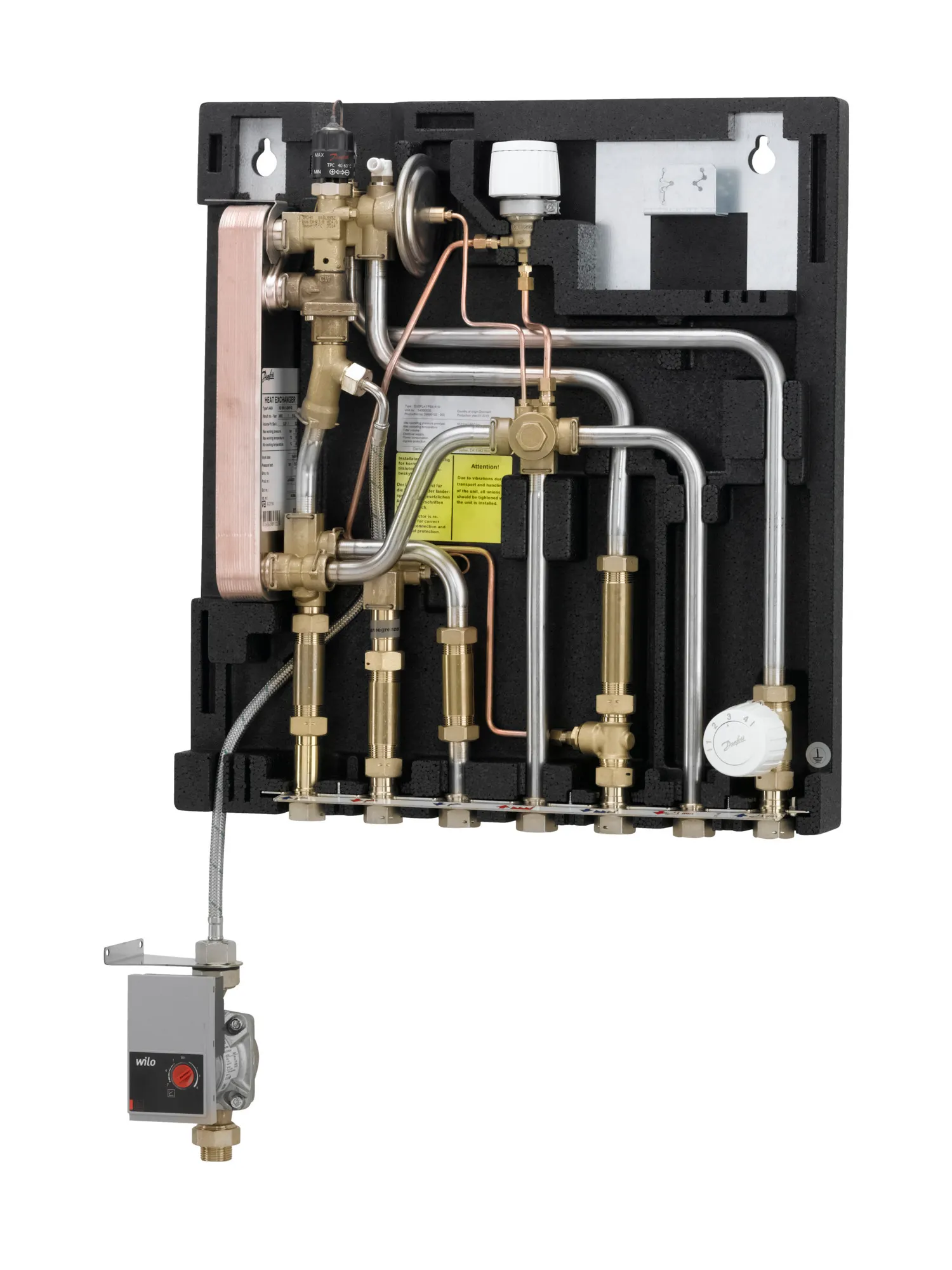

145B0804 Danfoss: EvoFlat FSA 2StS TPC-M (w/front) w/Cir
Gross weight
15.3 Kilogram
Net weight
14.1 Kilogram
Volume
0.845 Hectoliter
EAN
5702424653057
Application type
Direct Heating & Instantaneous DHW
Approval
CE
CE evaluated
Yes
Connection direction
Bottom
Cover material
White-lacquered In wall
Cover option
Extra
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
153 mm
Depth without cover [mm]
110 mm
Description
EvoFlat FSA 2StS TPC-M (w/front) w/Cir
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
53 kW
DHW capacity [kW] [Min]
45 kW
DHW circulation
Included
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW HEX type
XB06H-1 40
DHW pipe size
Ø18
DHW re-circulation pump brand
Wilo
DHW re-circulation pump type
YONOS PARA Z15/7 RK
DHW tank circuit - control
Thermostatic
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Fitting Piece
Energy meter return
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heating capacity [kW]
10 kW
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating circuit - control
Thermostat
Heating control type
Differential pressure
Heating controller name
TPC-M
Heating system type
Radiator heating
Height with cover [mm]
600 mm
Height without cover [mm]
590 mm
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Stainless steel
In scope of WEEE
No
Number of households [Max]
2
Number of households [Min]
1
Package depth [mm]
160 mm
Package height [mm]
800 mm
Package width [mm]
600 mm
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
95 °C
Type
EvoFlat FSA
UL evaluated
Out of scope
Width with cover [mm]
600 mm
Width without cover [mm]
545 mm
EvoFlat (Installation Guide) Flare / solder adapter (accessories) Type FSA Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 dfb_145b0902_145B0803_145B0966_145B0804_145B0967
