145B0913
Part Number: 145B0913
Product Information
Extended Description

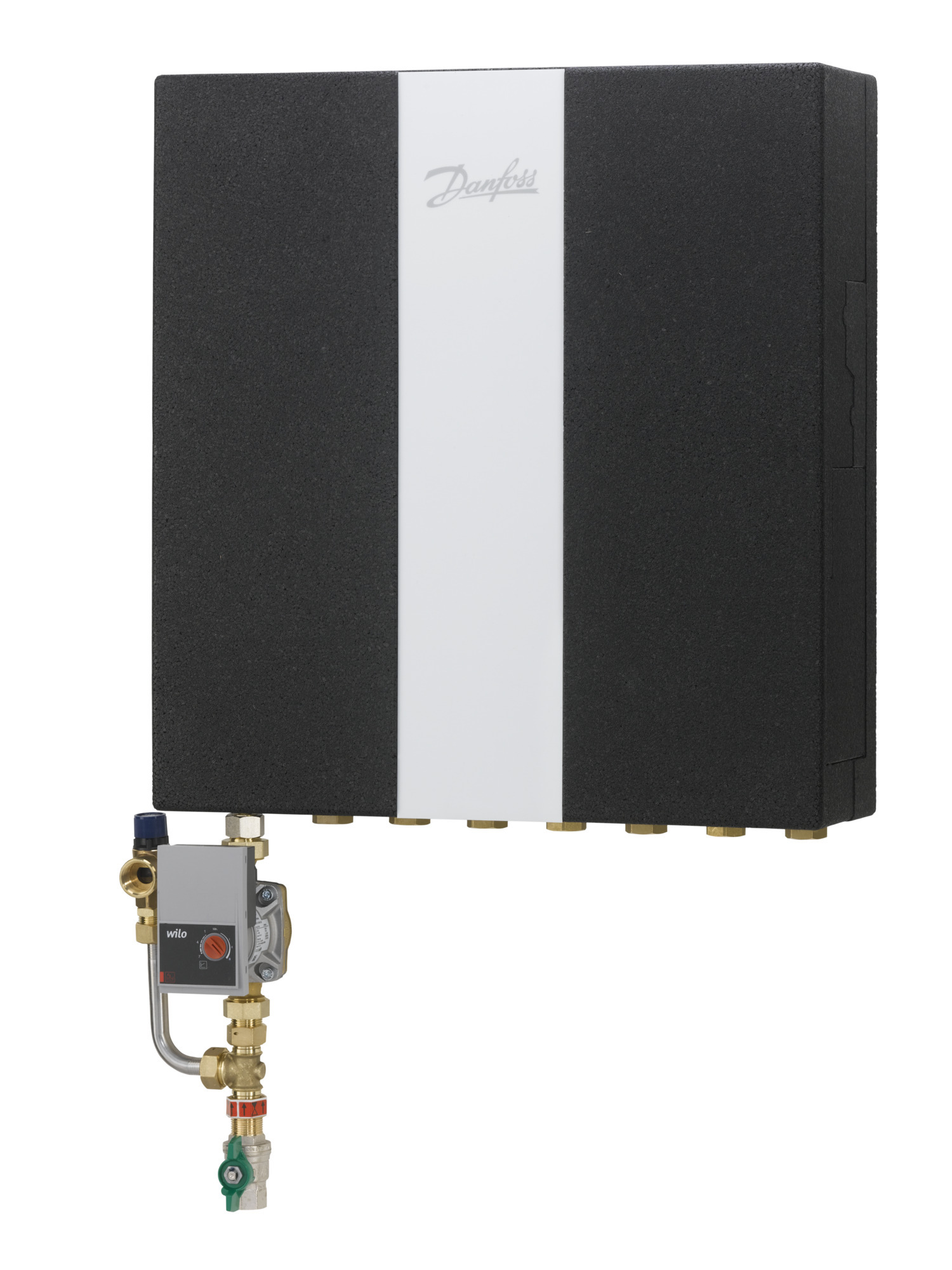

145B0913 Danfoss: EvoFlat FSS 2, with DHW circulation, Safety valve and EPP front insulation cover
Gross weight
15.2 Kilogram
Net weight
14 Kilogram
Volume
0.845 Hectoliter
EAN
5702424653088
Additional information
DHW Circulation,EPP Front insulation cover,Safety valve
Application type
Direct Heating & Instantaneous DHW
Connection direction
Bottom
Contain batteries
No
Cover material
White-lacquered In wall
Cover option
Extra
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
153 mm
Depth without cover [mm]
110 mm
Description
EvoFlat FSS 2, with DHW circulation, Safety valve and EPP front insulation cover
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
53 kW
DHW capacity [kW] [Min]
45 kW
DHW circulation
Without,Without,Without,Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW HEX type
XB06H-1 40
DHW pipe size
Ø18
DHW re-circulation pump brand
Wilo
DHW re-circulation pump type
YONOS PARA Z15/7 RK
Differential pressure controller
Integrated
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating circuit - control
Thermostat
Heating control type
Differential pressure
Heating controller name
TPC-M
Heating system type
Radiator heating
HEX heating brazed/gasketed material
Copper
Insulation material
EPP cover
Number of households [Min]
1
Package depth [mm]
600 mm
Package height [mm]
160 mm
Package width [mm]
800 mm
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
95 °C
Type
EvoFlat FSS
004U8407
White cover with door, open at the bottom H 740 x W 600 x D 200 mm
004U8578
Small stations accessories, White cover w/o door, open at the bottom H 780 x W 600 x D 200 mm
082F1602
TWA-Q, Supply voltage [V] AC: 24, 5.00 mm, Normally closed, 1.200 m
145H3016
Small stations accessories, Evoflat EPP Front insulation cover incl. Overlay
145H4900
Small stations accessories, Recess Box w/Mount. rail W610/H910/D150
145H4901
Small stations accessories, Recess Box door+frame W610/H910
