145B1124
Part Number: 145B1124
Product Information
Extended Description

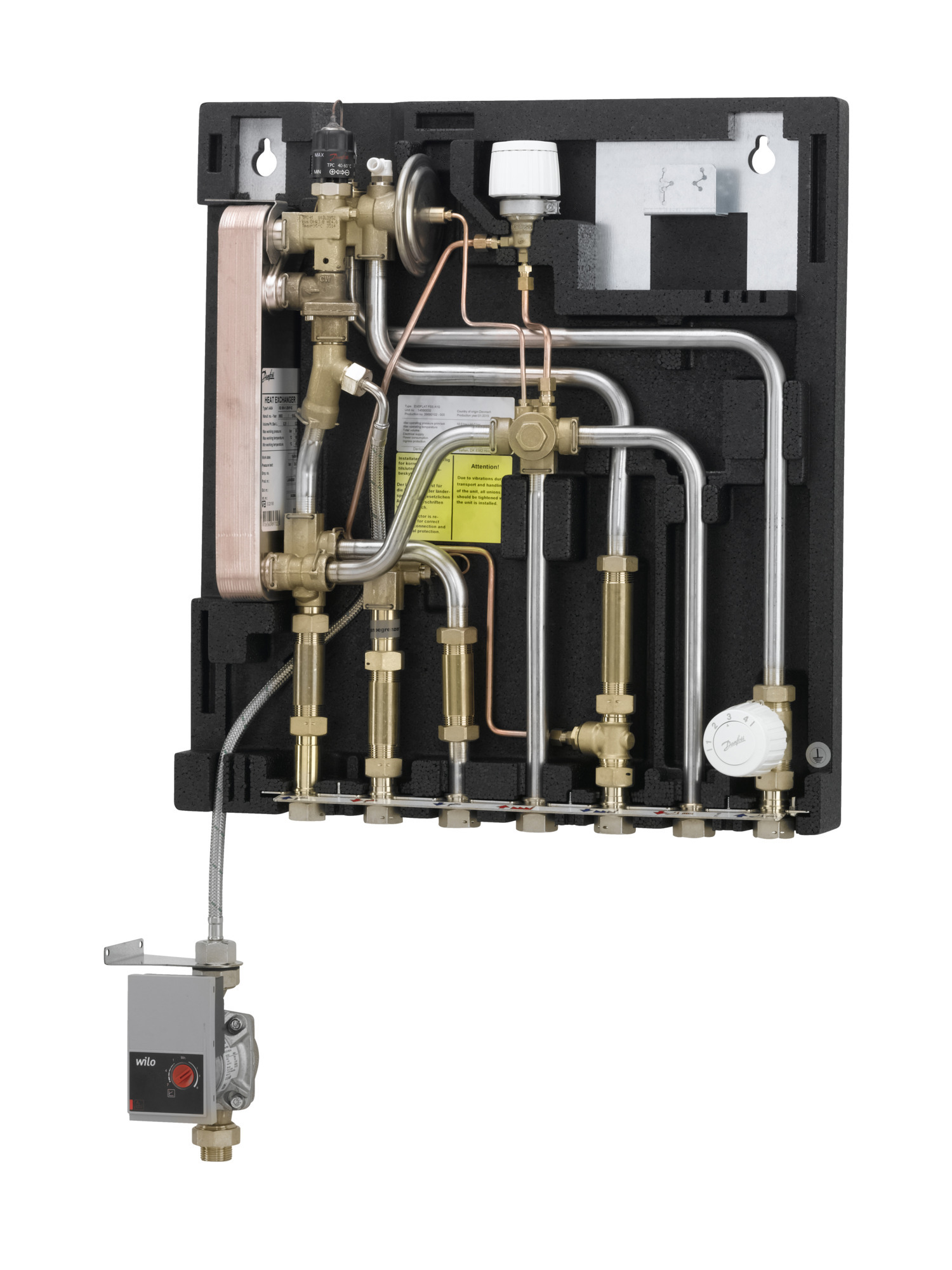

145B1124 Danfoss: EvoFlat MSS2 StS Circ. W TWA 24V ESMC
Gross weight
15 Kilogram
Net weight
14 Kilogram
EAN
5702424653323
Application type
Direct Heating with mixing & Instantaneous DHW
China RoHS compliance
Out of scope
Contain batteries
No
Description
EvoFlat MSS2 StS Circ. W TWA 24V ESMC
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
Heating circuit - control
Thermostat
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [ËšC]
95 °C
Type
EvoFlat MSS
