145B1721
Part Number: 145B1721
Product Information
Extended Description

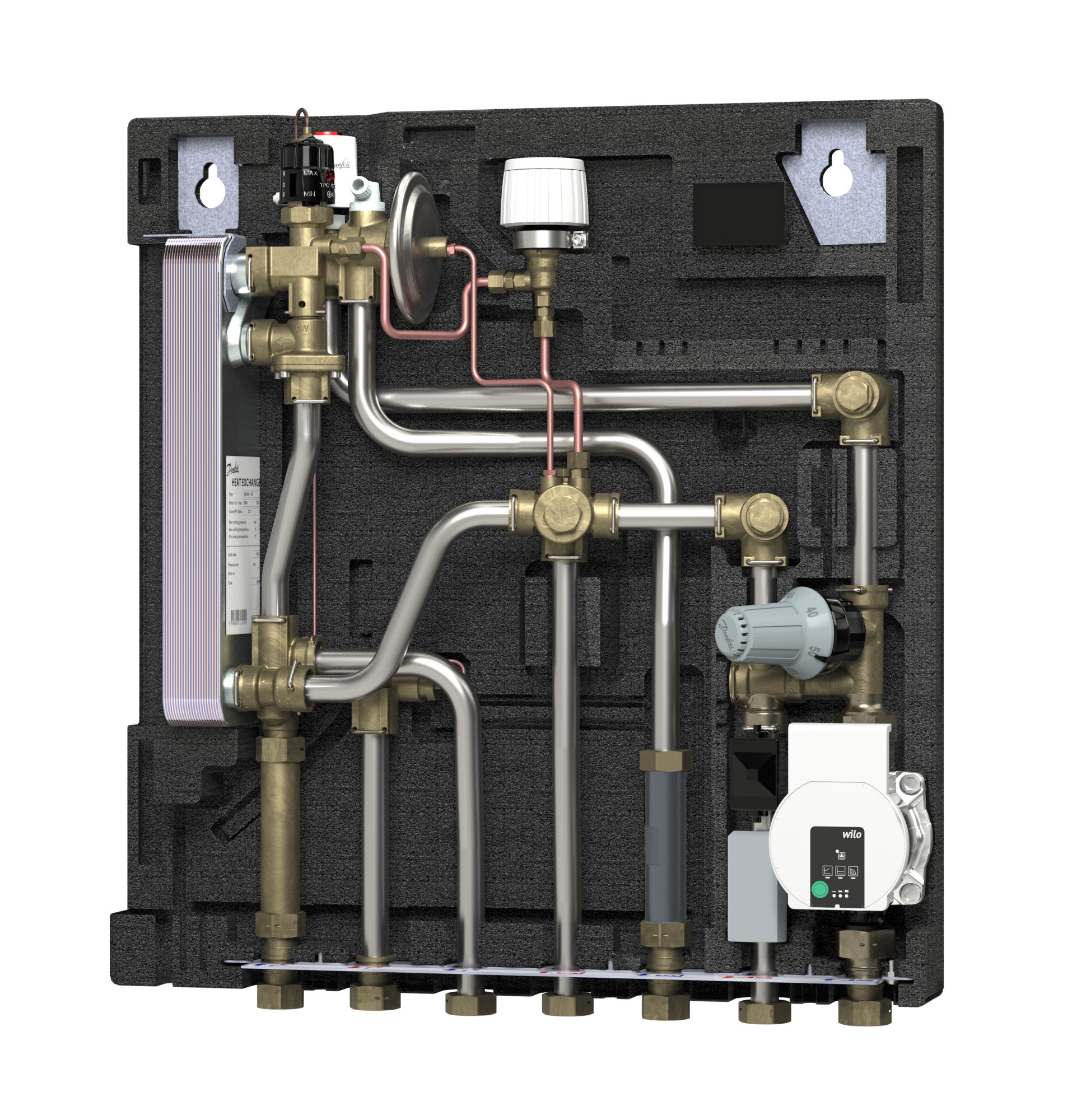

145B1721 Danfoss: EvoFlat MSS DE2, with EPP front insulation cover and STW
Gross weight
14.815 Kilogram
Net weight
13.615 Kilogram
Volume
79.237 Liter
EAN
5702424653408
Additional information
EPP Insulated front cover,Safety function
Application type
Direct Heating with mixing & Instantaneous DHW
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
Cover material
White-lacquered In wall
Cover option
Extra
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
153 mm
Depth without cover [mm]
150 mm
Description
EvoFlat MSS DE2, with EPP front insulation cover and STW
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
55 kW
DHW capacity [kW] [Min]
37 kW
DHW circulation
Without,Without,Without,Without,Without,Without,Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW HEX type
XB06H-1 40
DHW pipe size
Ø18
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating circuit - pump brand
Wilo
Floor heating circuit - pump type
Wilo Yonos Para 15/6
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating circuit - control
Thermostat
Heating control type
Thermostatic + Differential pressure
Heating controller name
FTC
Heating pump brand
Wilo
Heating pump type
YONOS PARA R 15/6
HEX heating brazed/gasketed material
Copper
Insulation material
EPP cover
Number of households [Min]
1
Package depth [mm]
600 mm
Package height [mm]
160 mm
Package width [mm]
800 mm
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
95 °C
Type
EvoFlat MSS
