145B1752
Part Number: 145B1752
Product Information
Extended Description

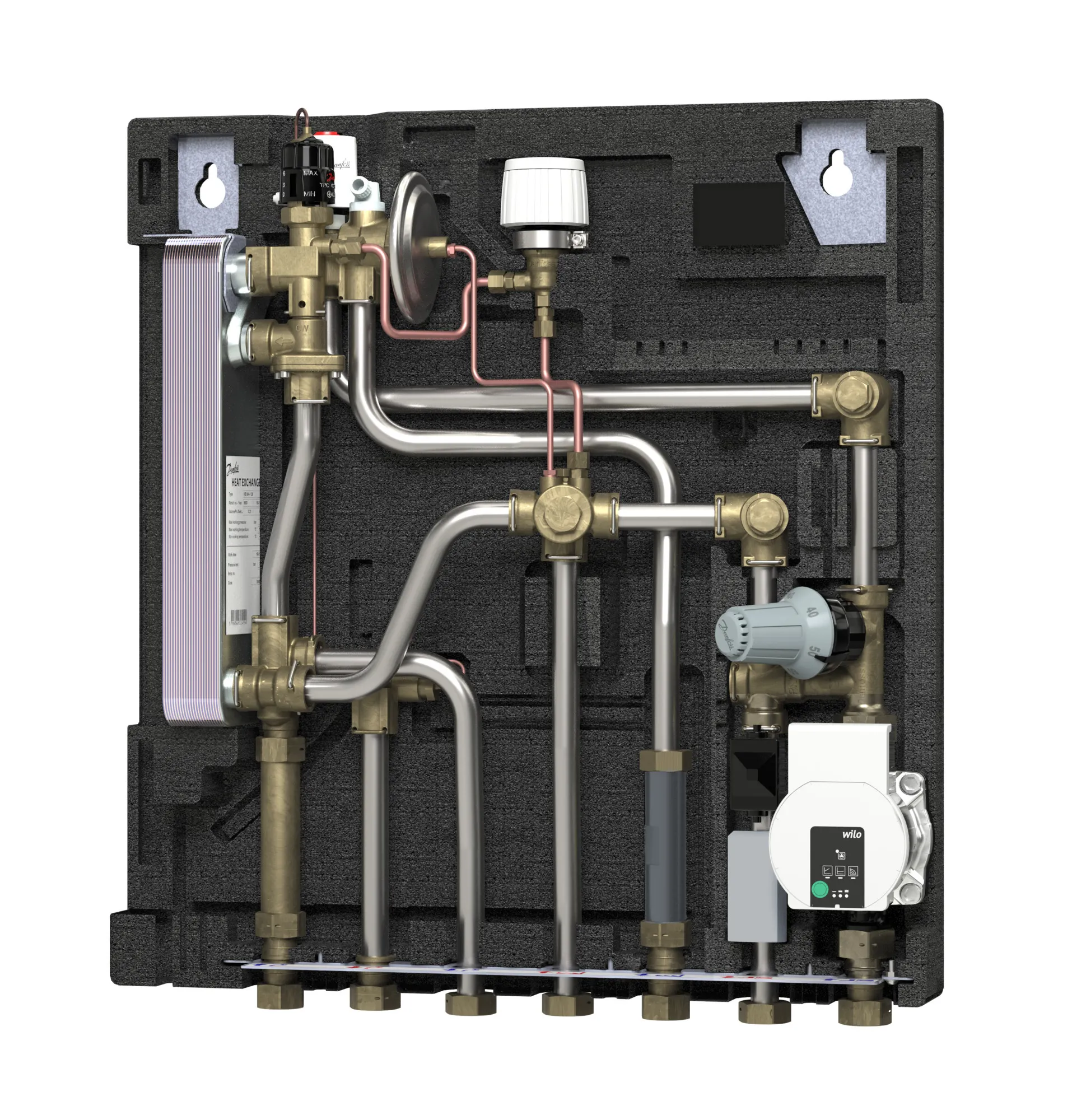

145B1752 Danfoss: EvoFlat MSS A3 (floor heating)
Gross weight
14.645 Kilogram
Net weight
13.445 Kilogram
Volume
79.909 Liter
EAN
5702428524728
Additional information
Safety function,Zone valve actuator
Application type
Direct Heating with mixing & Instantaneous DHW
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
Cover material
White-lacquered In wall
Cover option
Extra
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
153 mm
Depth without cover [mm]
150 mm
Description
EvoFlat MSS A3 (floor heating)
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
55 kW
DHW capacity [kW] [Min]
37 kW
DHW circulation
Without,Without,Without,Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW pipe size
Ø18
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Fitting Piece
Energy meter return and cold water meter X 3
Floor heating circuit - pump brand
Wilo
Floor heating circuit - pump type
Wilo Yonos Para 15/6
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating circuit - control
Thermostat
Heating control type
Thermostatic + Differential pressure
Heating controller name
FTC
Heating pump brand
Wilo
Heating pump type
YONOS PARA RS 15/6
HEX heating brazed/gasketed material
Stainless steel
Insulation material
Without
Number of households [Max]
2
Number of households [Min]
1
Package depth [mm]
600 mm
Package height [mm]
160 mm
Package width [mm]
800 mm
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
95 °C
Type
EvoFlat MSS A
