145B1917
Part Number: 145B1917
Product Information
Extended Description

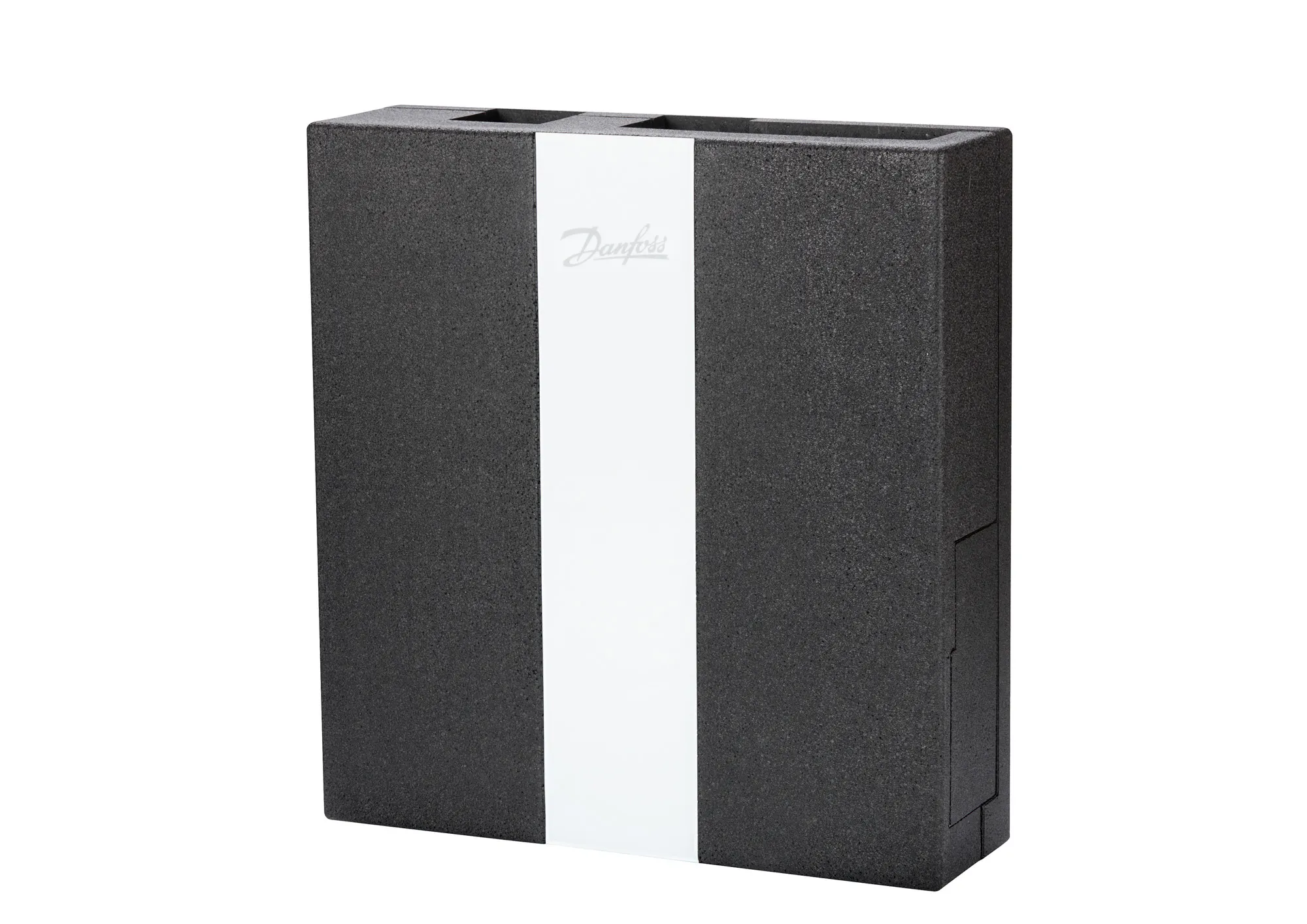

145B1917 Danfoss: EvoFlat MSS 3, w/bypass, w/1 CW meter, w/EPP front, w/HTC,
Gross weight
18.8 Kilogram
Net weight
17.6 Kilogram
EAN
5702424285906
Additional information
EPP Insulated front cover,Zone valve
Application type
Direct Heating with mixing & Instantaneous DHW
China RoHS compliance
Out of scope
Connection direction
Bottom
Contain batteries
No
Cover material
White-lacquered In wall
Cover option
Extra
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
155 mm
Depth without cover [mm]
150 mm
Description
EvoFlat MSS 3, w/bypass, w/1 CW meter, w/EPP front, w/HTC,
DH connection size
3/4"
DH connection type
external thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
54 kW
DHW capacity [kW] [Min]
35 kW
DHW circulation
Included,Included,Included,Included
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW HEX type
XB06H-1 60
DHW pipe size
Ø18
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating circuit - pump brand
Wilo
Floor heating circuit - pump type
Wilo Yonos Para 15/6
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating circuit - control
Thermostat
Heating control type
Thermostatic + Differential pressure
Heating controller name
FTC
Heating HEX type
XB06H-1 60
Heating system type
Floor heating
HEX heating brazed/gasketed material
Copper
Insulation material
EPP cover
Number of households [Max]
2
Number of households [Min]
1
Package depth [mm]
600 mm
Package height [mm]
160 mm
Package width [mm]
800 mm
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 3
Supply temperature construction [˚C]
95 °C
Type
EvoFlat MSS
004U8407
White cover with door, open at the bottom H 740 x W 600 x D 200 mm
004U8578
Small stations accessories, White cover w/o door, open at the bottom H 780 x W 600 x D 200 mm
082F1602
TWA-Q, Supply voltage [V] AC: 24, 5.00 mm, Normally closed, 1.200 m
145H3016
Small stations accessories, Evoflat EPP Front insulation cover incl. Overlay
145H4900
Small stations accessories, Recess Box w/Mount. rail W610/H910/D150
145H4901
Small stations accessories, Recess Box door+frame W610/H910
