145B4106

Part Number: 145B4106
145B4106
Manufacturer
Danfoss
Part number
145B4106
Category

Product Information

Extended Description

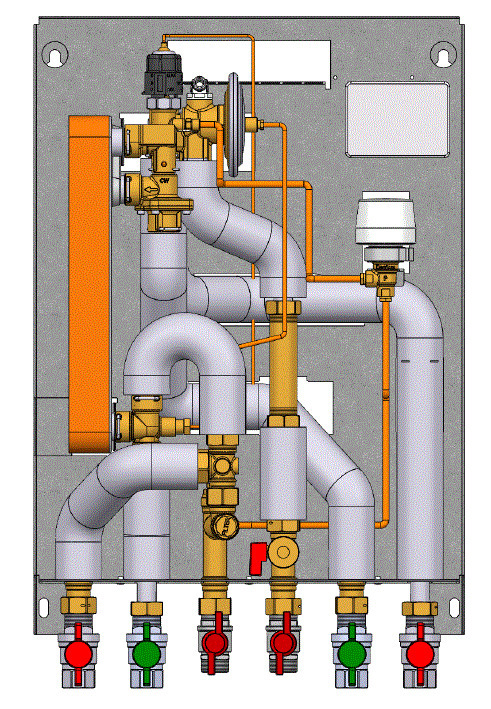

145B4106 Danfoss: EvoFlat Reno Type 1 230V, w/XB06H-1-40_2StS_16_A_G3/4 EvoF I-P 84pcs
Gross weight
15 Kilogram
Net weight
12 Kilogram
EAN
5702428681124
Application type
Direct Heating & Instantaneous DHW
Contain batteries
No
Cover material
White-lacquered In wall
Cover option
Extra
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
220 mm
Depth without cover [mm]
204 mm
Description
EvoFlat Reno Type 1 230V, w/XB06H-1-40_2StS_16_A_G3/4 EvoF I-P 84pcs
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
53 kW
DHW capacity [kW] [Min]
45 kW
DHW circulation
Without,Without,Without,Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
DHW HEX type
XB06H-1 StS 40
DHW pipe size
Ø18
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating circuit - control
Thermostat
Heating control type
Thermostatic
Heating system type
Radiator heating
Height with cover [mm]
760 mm
Height without cover [mm]
673 mm
HEX heating brazed/gasketed material
Stainless steel
Number of households [Max]
2
Number of households [Min]
1
Package depth [mm]
300 mm
Package height [mm]
800 mm
Package width [mm]
600 mm
Pressure nominal primary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
95 °C
Type
EvoFlat RENO
Width with cover [mm]
435 mm
Width without cover [mm]
410 mm
082F1600
TWA-Q, Supply voltage [V] AC: 230, 5.00 mm, Normally closed, 1.200 m
082F1602
TWA-Q, Supply voltage [V] AC: 24, 5.00 mm, Normally closed, 1.200 m
145H4920
Small stations accessories, Pipe set up f. Evoflat reno
145H4927
Small stations accessories, Cover EvoFlat Reno, white
EvoFlat RENO – The cost-effective solution for replacement gas boilers EvoFlat Reno flat station (Data sheet) EvoFlat Reno Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 145B4103_13 Evoflat Reno_RFA
