145B4171
Part Number: 145B4171
Product Information
Extended Description

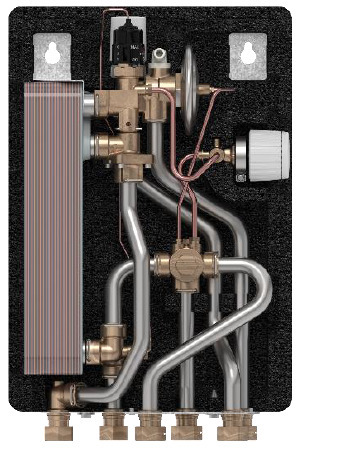

145B4171 Danfoss: EvoFlat TDV type 3 F front EPP
Gross weight
10.2 Kilogram
Net weight
9 Kilogram
EAN
5702424657024
Application type
Direct Heating & Instantaneous DHW
Connection direction
Bottom
Contain batteries
No
Cover material
EPP Foam
Depth with cover [mm]
130 mm
Description
EvoFlat TDV type 3 F front EPP
DH connection size
3/4"
DH connection type
Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
55 kW
DHW capacity [kW] [Min]
38 kW
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
Differential pressure controller
Integrated
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
0 kW
Heating control type
Thermostatic + Differential pressure
Heating controller name
TPC-M
Heating system type
Radiator heating
HEX heating brazed/gasketed material
Copper
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
Station size type
Type 3
Supply temperature construction [˚C]
95 °C
Type
EvoFlat FSS
