145B4173
Part Number: 145B4173
Product Information
Extended Description

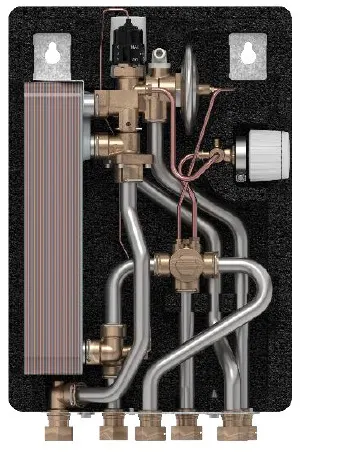

145B4173 Danfoss: EvoFlat TDV type 2 StS F front EPP
Gross weight
8.96 Kilogram
Net weight
7.76 Kilogram
EAN
5702424657048
Application type
Direct Heating & Instantaneous DHW
Connection direction
Bottom
Contain batteries
No
Cover material
EPP Foam
Depth with cover [mm]
130 mm
Description
EvoFlat TDV type 2 StS F front EPP
DH connection size
3/4"
DH connection type
Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
49 kW
DHW capacity [kW] [Min]
37 kW
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
Differential pressure controller
Integrated
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
0 kW
Heating control type
Thermostatic + Differential pressure
Heating controller name
TPC-M
Heating system type
Radiator heating
HEX heating brazed/gasketed material
Stainless steel
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
Station size type
Type 2
Supply temperature construction [˚C]
95 °C
Type
EvoFlat FSS
