145B4215

Part Number: 145B4215
Manufacturer
Danfoss
Part number
145B4215
Category

Product Information

Extended Description

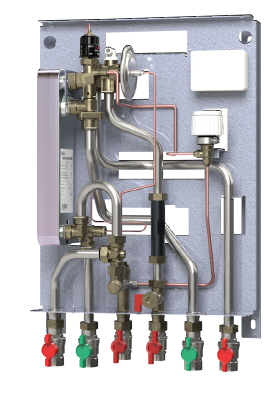

145B4215 Danfoss: EvoFlat RENO 2.0 type 3 TWA 230V FR
Gross weight
15.9 Kilogram
Net weight
14.7 Kilogram
EAN
5715162696132
Application type
Direct Heating & Instantaneous DHW
Connection direction
Bottom
Depth without cover [mm]
204 mm
Description
EvoFlat RENO 2.0 type 3 TWA 230V FR
DH connection size
3/4"
DH connection type
Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
55 kW
DHW capacity [kW] [Min]
38 kW
DHW Control type
Flow/thermostatic
DHW controller name
TPC-M
Differential pressure controller
Integrated
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
0 kW
Heating control type
Thermostatic + Differential pressure
Heating controller name
TPC-M
Heating system type
Radiator heating
HEX heating brazed/gasketed material
Copper
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
Station size type
Type 3
Supply temperature construction [˚C]
95 °C
Type
EvoFlat RENO
Width without cover [mm]
410 mm
EvoFlat RENO – The cost-effective solution for replacement gas boilers EvoFlat Reno flat station (Data sheet) Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Danfoss UA 2023-01-10 substations PL33 Small Stations, EvoFlat RENO
