145B4502
Part Number: 145B4502
Product Information
Extended Description

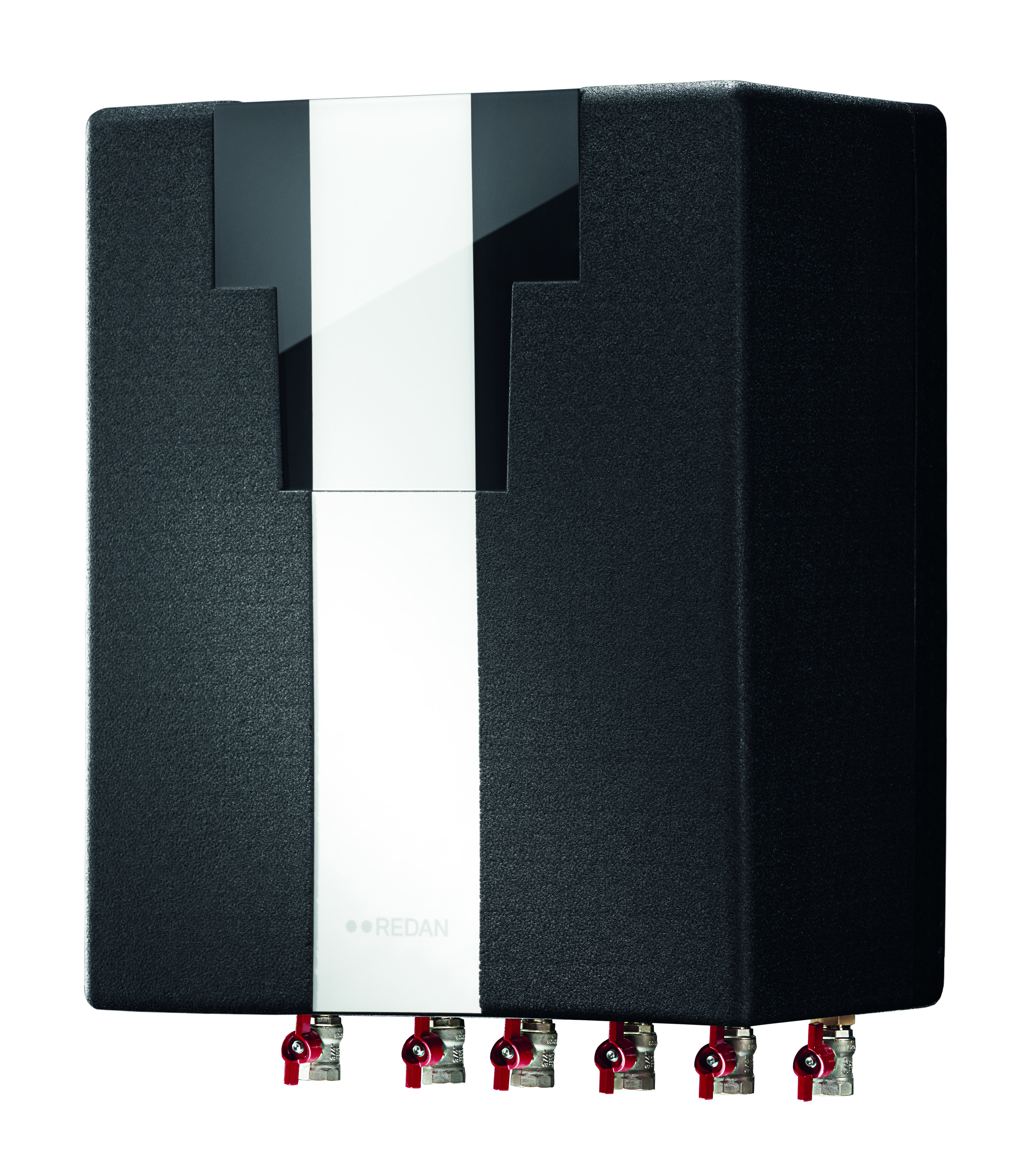

145B4502 Danfoss: Product Type: Akva Lux II TDe, Type 3, 10 bar, 110 °C, dP-control, PTC2+P
Gross weight
14 Kilogram
Net weight
13 Kilogram
EAN
5715162511190
Application type
Direct Heating & Instantaneous DHW
China RoHS compliance
Out of scope
Contain batteries
No
Description
Akva Lux II TDe XB06H+60 PTC2, ECL310/A230
DHW Control type
Flow-thermostatic
DHW controller name
PTC2+P
DHW HEX type
XB06H+-1 60
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Heating circuit - control
dP-control
Heating control type
Bottom
HEX DHW brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 3
Supply temperature construction [ËšC]
110 °C
Type
Akva Lux II TDe
UK RoHS compliance
Out of scope
003L1047
Return temperature limiters, FJVR Sensor, 10 °C - 50 °C, Sensor type: Built-in sensor
003L5030
AVPL, PN 16, DN 15, 1.00 mÂł/h, 0.05 bar - 0.25 bar, External Thread, G 3/4 A
004B6098
Redan ball valve 3/4" E/I, short 60,5mm
004U8232
Gaskets 3/4" EDPM (50pcs)
144B2238
PTC2+P-regulator, kvs 3, nut
144B2319
Ball valve 3/4" AG x 3/4" Ăśberwurfmutter
145H5064
XB06H+-1-60_2_25_A_2G3/4 PL
