145F0273
Part Number: 145F0273
Product Information
Extended Description

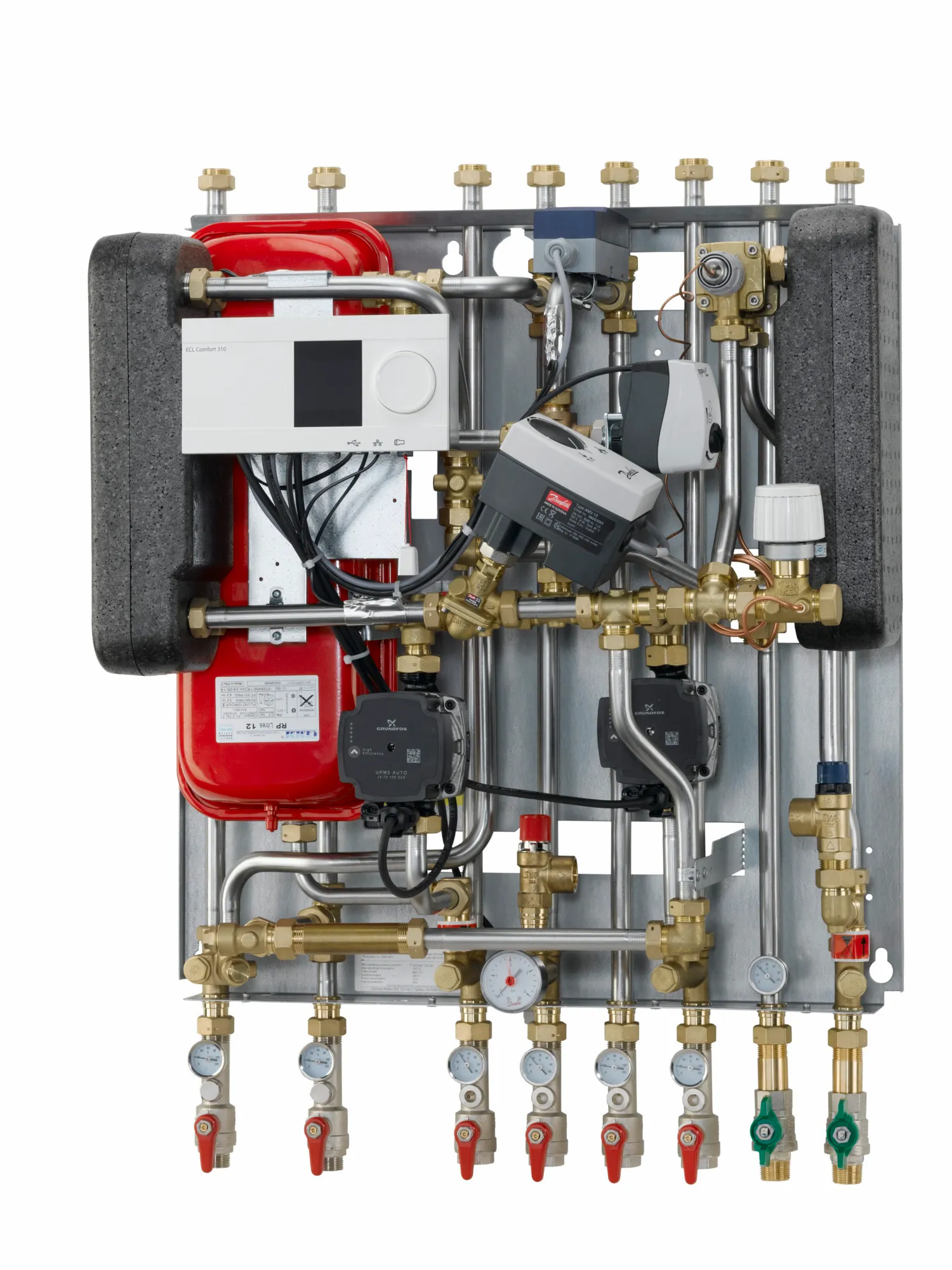

145F0273 Danfoss: Product Type: Akva Lux II VX H2WP, ECL, 2 HE circ., Type 2-1, 16 bar, 110 °C, VMV / AMV 150, PTC2 + P
Gross weight
47 Kilogram
Net weight
45 Kilogram
Volume
3.995 Hectoliter
EAN
5714279482560
Additional information
2x Safety function
Application type
Indirect heating & Instantaneous DHW
China RoHS compliance
Out of scope
Connection direction
Top and bottom
Contain batteries
No
Description
Akva Lux II VX H2WP (ECL 310/A360.1d), Type H1/W2 with double STW for radiator and floor heating circuits
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
55 kW
DHW capacity [kW] [Min]
35 kW
DHW connection size
3/4"
DHW Control type
Flow/thermostatic
DHW controller name
PTC2 + P
DHW HEX type
XB06H-1 26
DHW pipe size
Ø18
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Floor heating circuit - pump brand
Grundfos
Floor heating circuit - pump type
UPM3 15-70 130 ZZA
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW]
20 kW
Heating circuit - control
VMV / AMV 150
Heating control type
Electronic
Heating controller name
ECL 310-A360 & AHQM/AMV 13
Heating HEX type
XB06H-1 40
Heating pump brand
Grundfos
Heating pump type
UPM3 15-70 130 ZZA
Height with cover [mm]
861 mm
Height without cover [mm]
818 mm
HEX DHW brazed/gasketed material
Brazed copper
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Package depth [mm]
800 mm
Package height [mm]
420 mm
Package width [mm]
840 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
3 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2-1
Supply temperature construction [˚C]
110 °C
Supply voltage [V] AC
230 V
Type
Akva Lux II VX H2WP, ECL, 2 HE circ.
003L1047
Return temperature limiters, FJVR Sensor, 10 °C - 50 °C, Sensor type: Built-in sensor
003L3594
AHQM, PN 16, DN 15, Flow rate [m³/h]: 0.20 - 1.00, External Thread, G 3/4 A, Mounting version: Free
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8237
Expansion 12L 515x200mm
004U8604
Kappe m/Front aft. f/VX B700 D380 H780
004U8634
Gasket 1" EDPM 282 (10 pcs)
065F6015
VMV M30, PN 16, DN 15, 2.50 m³/h, G 3/4 A, M30
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
