145F0335
Part Number: 145F0335
Product Information
Extended Description

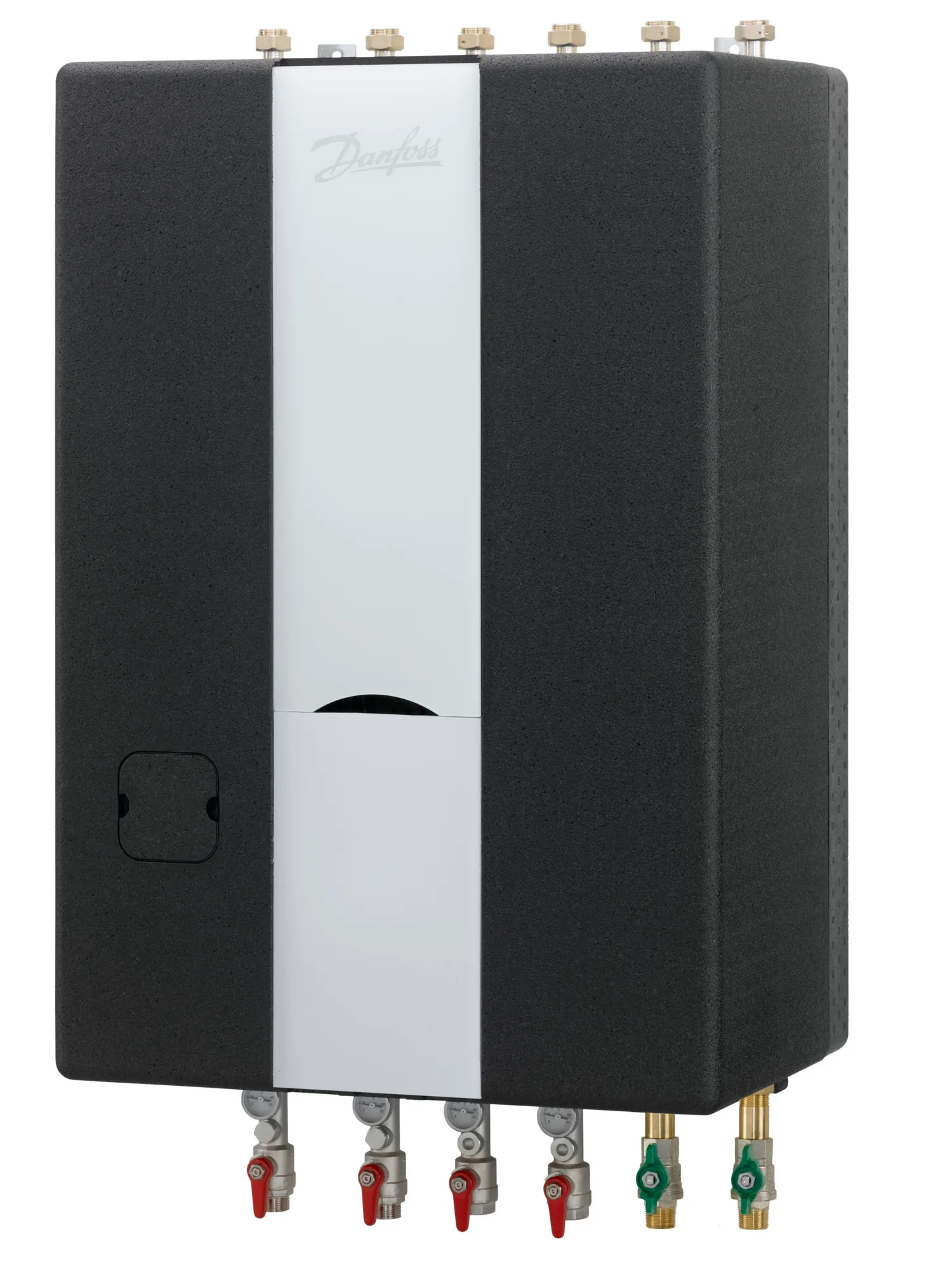

145F0335 Danfoss: Product Type: Akva Lux II VXi HWP, Type 2, 16 bar, 95 °C, ECL 310 / AVQM / AMV, PTC2+P
Gross weight
42 Kilogram
Net weight
40 Kilogram
Volume
2.175 Hectoliter
EAN
5702428524971
Additional information
2x Safety function,Cover,DHW,EPP Front insulation cover
Application type
Indirect heating & Instantaneous DHW
Connection direction
Top and bottom
Contain batteries
No
Cover material
White-lacquered In wall
Cover option
Included
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
360 mm
Depth without cover [mm]
360 mm
Description
Akva Lux II VXi HWP type 2 HE + type 2 PWH +DVGW ball valve, safety func
DH connection size
3/4"
DH connection type
G int. Thread
DHW capacity [kW] [Max]
53 kW
DHW capacity [kW] [Min]
32 kW
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
PTC2+P
DHW HEX type
XB06H-1 40
Differential pressure controller
Integrated
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Heating circuit - control
ECL 310 / AVQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV13
Heating HEX type
XB06H-1 40
Height with cover [mm]
980 mm
Height without cover [mm]
980 mm
HEX DHW brazed/gasketed material
Brazed copper
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Manufacturer's name
Danfoss
Number of households [Max]
2
Number of households [Min]
1
Package depth [mm]
360 mm
Package height [mm]
1000 mm
Package width [mm]
600 mm
Pressure nominal primary [bar]
16 bar
Pressure nominal secondary [bar]
10 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
95 °C
Type
Akva Lux II VXi HWP
Width with cover [mm]
550 mm
Width without cover [mm]
550 mm
003H6735
AVQM, PN 16, DN 15, Flow rate [m³/h]: 0.03 - 0.90, External Thread, G 3/4 A, Mounting version: Free
003L1047
Return temperature limiters, FJVR Sensor, 10 °C - 50 °C, Sensor type: Built-in sensor
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3806
ECL Application keys, A237
087N0011
ESMC, Sensors
144B2238
PTC2+P-regulator, kvs 3, nut
145H3879
Circulation set incl. pipe for mounting on site
