145F0598
Part Number: 145F0598
Product Information
Extended Description

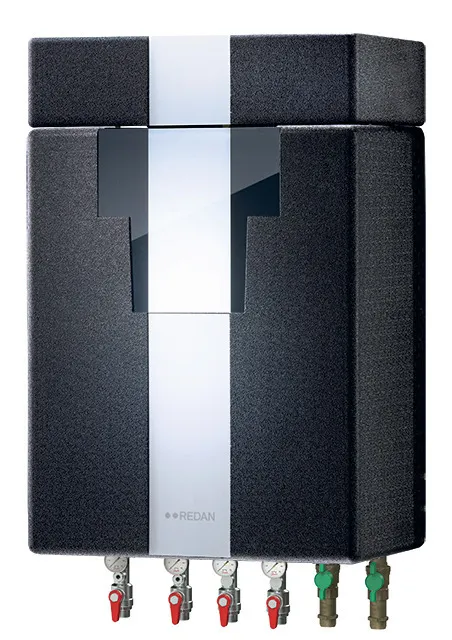

145F0598 Danfoss: Product Type: Akva Lux II VXe, Type 2-2, 16 bar, 110 °C, ECL 310 / AVQM / AMV, PTC2+P
Gross weight
42 Kilogram
Net weight
40 Kilogram
Volume
1.794 Hectoliter
EAN
5702424594046
Application type
Indirect heating & Instantaneous DHW
China RoHS compliance
Out of scope
Contain batteries
No
Description
Akva Lux II VXe, ECL310/A237, Type H2 - W2, STW
DHW Control type
Flow-thermostatic
DHW controller name
PTC2+P
DHW HEX type
XB06H-1 40
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Heating circuit - control
ECL 310 / AVQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV13
Heating HEX type
XB06H-1 40
HEX DHW brazed/gasketed material
Brazed copper
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2-2
Supply temperature construction [ËšC]
110 °C
Type
Akva Lux II VXe
145H4438
Cirkulationssæt m/slange VXe, SE
