145F0614
Part Number: 145F0614
Product Information
Extended Description

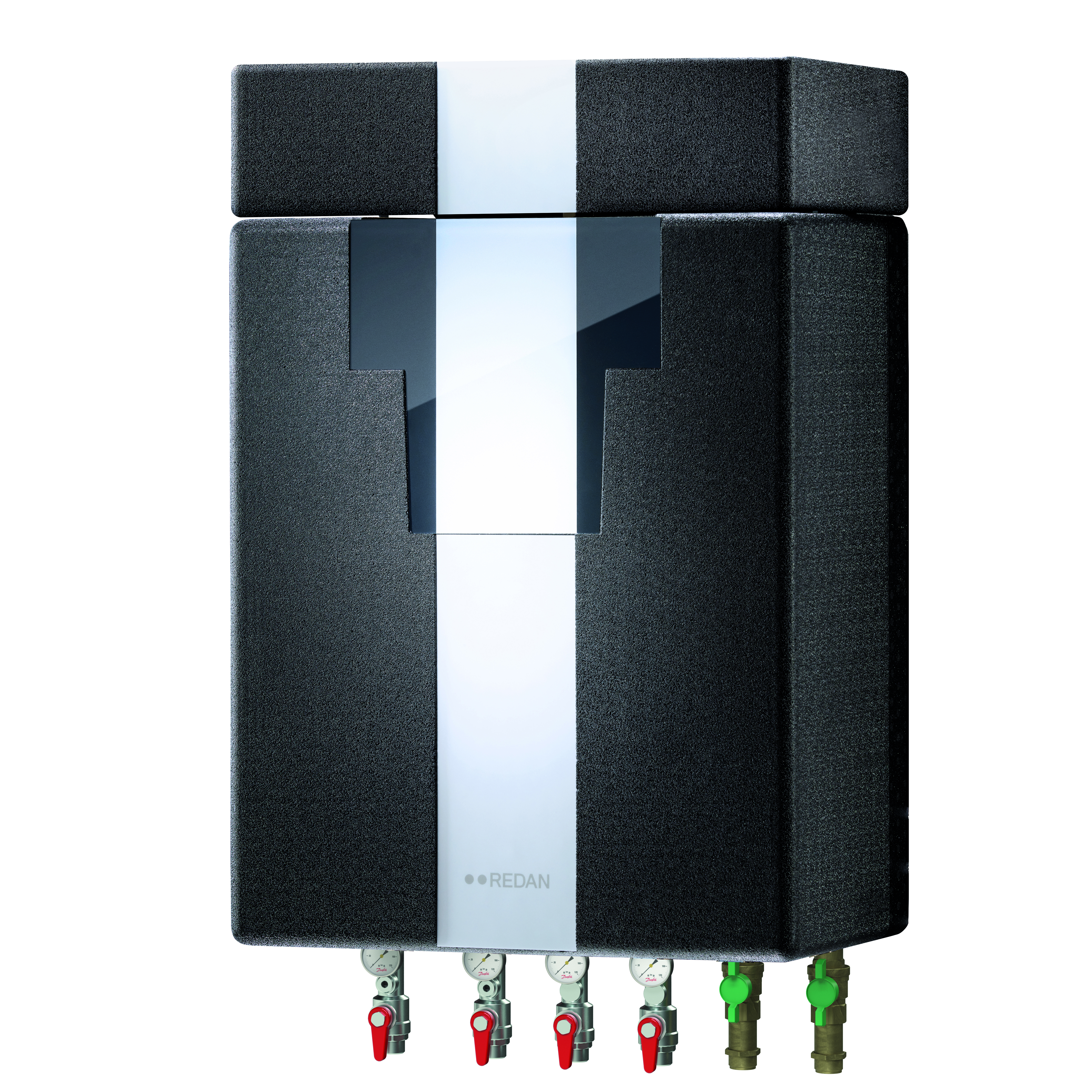

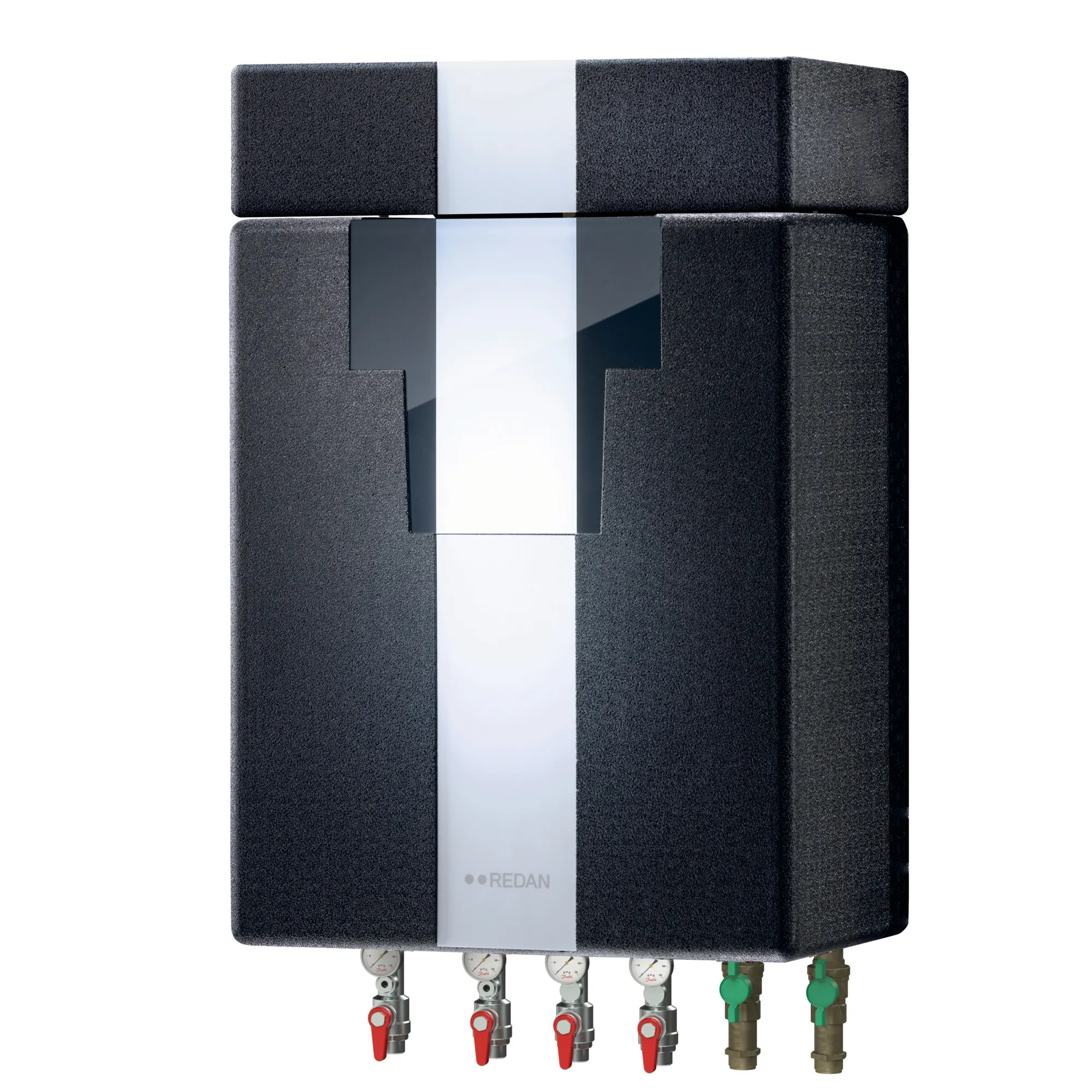

145F0614 Danfoss: Product Type: Akva Lux II VXe, Type 2-1, 16 bar, 120 °C, ECL 310/AVQM/AMV 150, PTC2+P
Gross weight
27 Kilogram
Net weight
26 Kilogram
Volume
1.794 Hectoliter
EAN
5702424619862
Application type
Indirect heating & Instantaneous DHW
Contain batteries
No
Description
Akva Lux VXe TYPE 2-1 STS ECL310/A237
DHW Control type
Flow/thermostatic
DHW controller name
PTC2+P
DHW HEX type
XB06H-1 26
Heating circuit - control
ECL 310/AVQM/AMV 150
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV 150
Heating HEX type
XB06H-1 40
HEX DHW brazed/gasketed material
Brazed stainless steel
HEX heating brazed/gasketed material
Stainless steel
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2-1
Supply temperature construction [ËšC]
120 °C
Type
Akva Lux II VXe
003H6735
AVQM, PN 16, DN 15, Flow rate [mÂł/h]: 0.03 - 0.90, External Thread, G 3/4 A, Mounting version: Free
003L1047
Return temperature limiters, FJVR Sensor, 10 °C - 50 °C, Sensor type: Built-in sensor
004H4605
Micro Plate heat exchanger, XB06H-1, Number of plates: 26
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3821
ECL Application keys, A237
087N0011
ESMC, Sensors
144B2238
PTC2+P-regulator, kvs 3, nut
145H4438
Cirkulationssæt m/slange VXe, SE
