145F0619
Part Number: 145F0619
Product Information
Extended Description

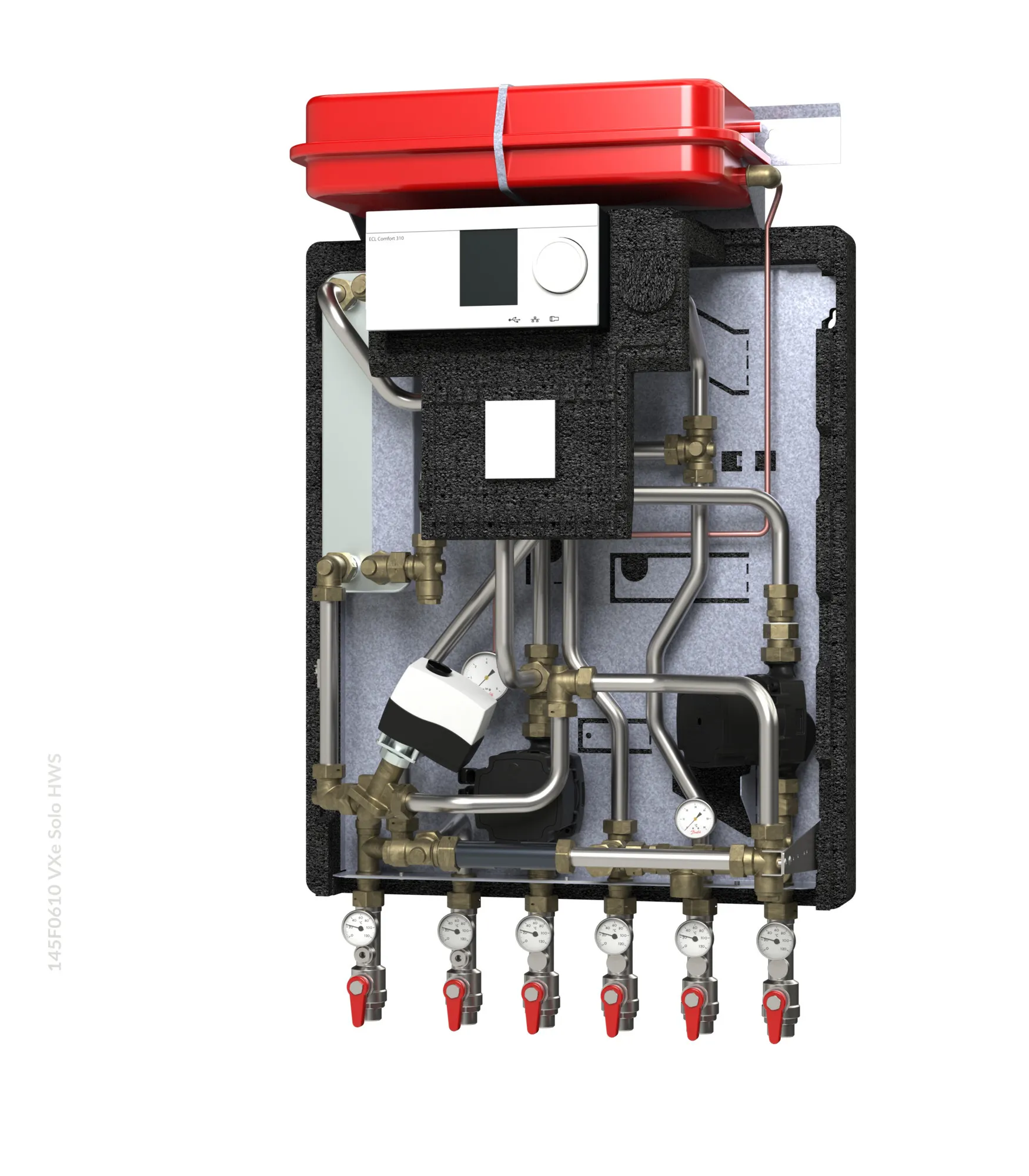

145F0619 Danfoss: Product Type: VX Solo II HWS (A237), Type 2, 16 bar, 120 °C, Pressure independent control valve, ECL 310 + pump
Gross weight
39 Kilogram
Net weight
37 Kilogram
Volume
1.794 Hectoliter
EAN
5702424623142
Application type
Indirect Heating & Secondary connections for DHW cylinder
Capacity [kW]
30 kW
Connection direction
Bottom
DHW controller name
ECL 310 + pump
EU RoHS compliance
Yes with exemptions
EU RoHS exemption clause
6(c)
Heating circuit - control
Pressure independent control valve
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV13
Heating HEX type
XB06H-1 40
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 2
Supply temperature construction [˚C]
120 °C
Type
VX Solo II HWS (A237)
003H6735
AVQM, PN 16, DN 15, Flow rate [m³/h]: 0.03 - 0.90, External Thread, G 3/4 A, Mounting version: Free
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
065F6015
VMV M30, PN 16, DN 15, 2.50 m³/h, G 3/4 A, M30
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087B1184
ESMB-12, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3806
ECL Application keys, A237
087N0011
ESMC, Sensors
