145F0661

Part Number: 145F0661
145F0661
Manufacturer
Danfoss
Part number
145F0661
Category

Product Information

Extended Description

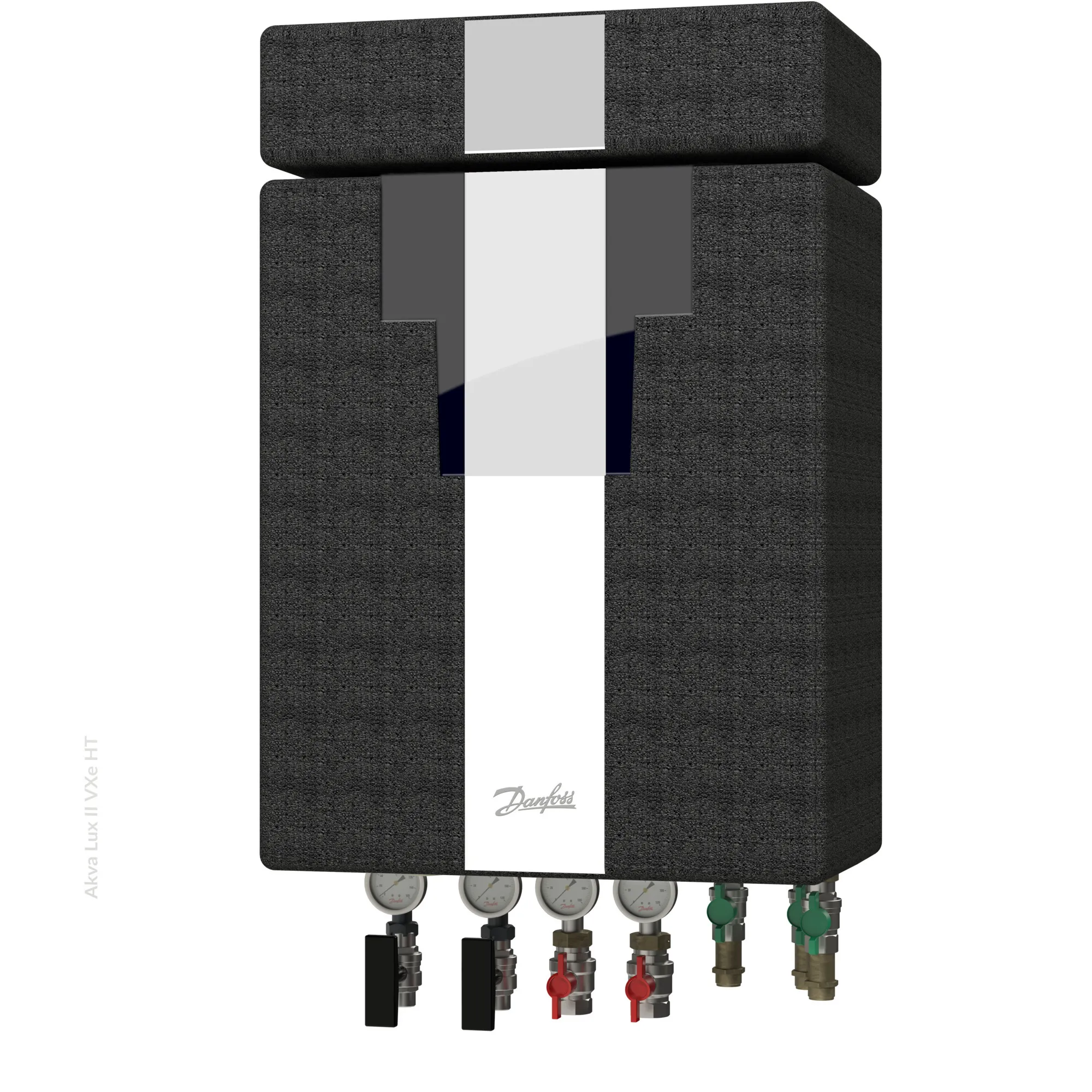

145F0661 Danfoss: Product Type: Akva Vita II VXe HT, Type 3-2, 25 bar, 120 °C, Motorized control valve, PTC2+P
Gross weight
43 Kilogram
Net weight
42 Kilogram
EAN
5702424659868
Application type
Indirect heating & Instantaneous DHW
DHW Control type
Electronic
DHW controller name
PTC2+P
DHW HEX type
XB06H-1 40
Heating circuit - control
Motorized control valve
Heating control type
Electronic
Heating controller name
ECL 310/VM2/AMV13
Heating HEX type
XB06L-1 24
HEX DHW brazed/gasketed material
Brazed copper
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
25 bar
Product group
Small Stations
Station size type
Type 3-2
Supply temperature construction [˚C]
120 °C
Type
Akva Vita II VXe HT
Akva Lux II VXe HT Danfoss EU DHEU00E002 A Akva Lux II VXe HT_ISO Small Stations , Akva Lux II VXe
