145F0674

Part Number: 145F0674
145F0674
Manufacturer
Danfoss
Part number
145F0674
Category

Product Information

Extended Description

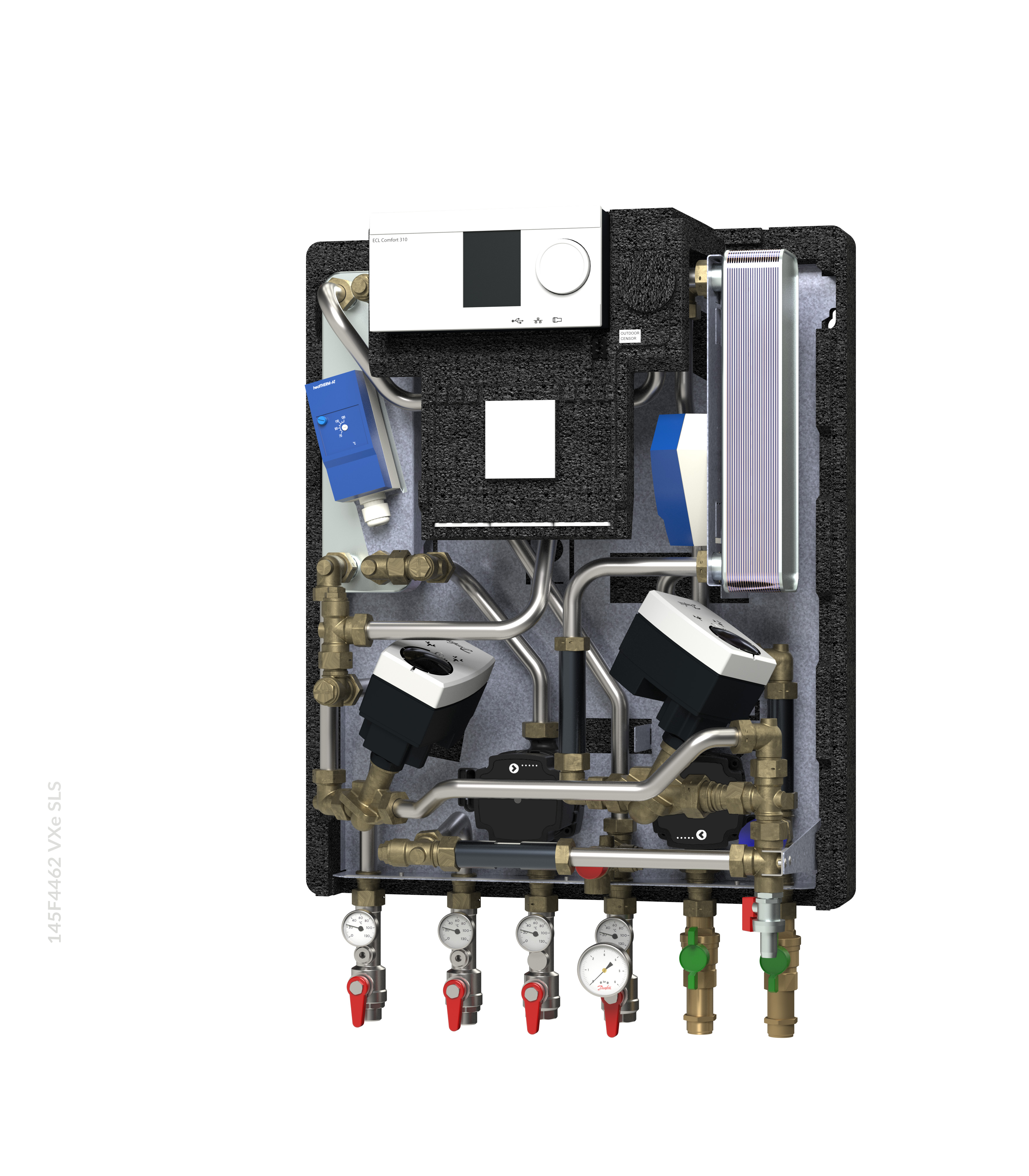

145F0674 Danfoss: Product Type: Vxe SLS, 16/16, 16 bar, 120 °C, ECL 310/AHQM/AMV 10, AHQM / AMV 10
Gross weight
40 Kilogram
Net weight
38 Kilogram
EAN
5715162867112
Application type
Indirect Heating & DHW Charging
Description
VXe-SLS ECL 310/A247
DHW Control type
Electronic
DHW controller name
AHQM / AMV 10
DHW HEX type
XB06H-1 16
Heating circuit - control
ECL 310/AHQM/AMV 10
Heating control type
Electronic
Heating controller name
ECL 310/AHQM/AMV 10
Heating HEX type
XB06H-1 16
HEX DHW brazed/gasketed material
Brazed copper
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
Station size type
16/16
Supply temperature construction [ËšC]
120 °C
Type
Vxe SLS

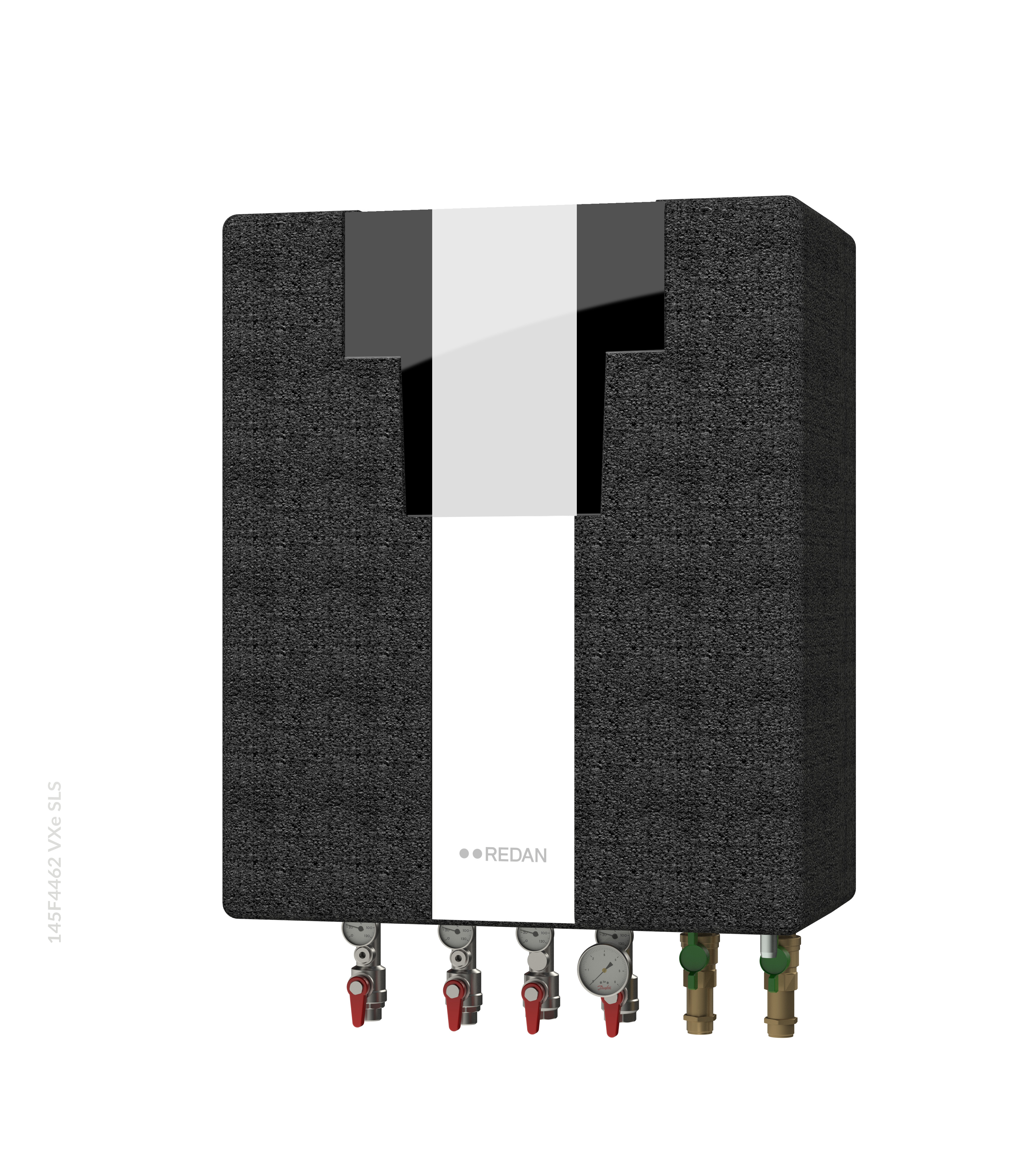

VXe SLS fully insulated substation VXe SLS komplett wärmegedämmt / VXe SLS fully insulated substation Danfoss EU DHEU00E002 A Vxe SLS 145F0674 - 145F4509 Vxe SLS 145F0674 - 145F4509
