145F0726
Part Number: 145F0726
Product Information
Extended Description

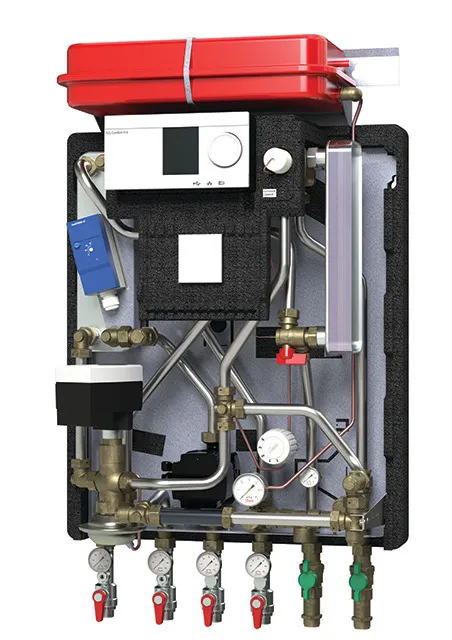

145F0726 Danfoss: Product Type: Akva Lux II VXi HWP, Type 3-2, 16 bar, 110 °C, ECL 310 / AVQM / AMV, PTC2+P
Gross weight
42 Kilogram
Net weight
40 Kilogram
Volume
2.175 Hectoliter
EAN
5702424647292
Application type
Indirect heating & Instantaneous DHW
Contain batteries
No
Description
Akva Lux VXi T3/T2 StS ECL310/A337 STW
DHW Control type
Flow-thermostatic
DHW controller name
PTC2+P
DHW HEX type
XB06H-1 40
Heating circuit - control
ECL 310 / AVQM / AMV
Heating control type
Electronic
Heating controller name
ECL 310/AVQM/AMV13
Heating HEX type
XB06L-1 24
HEX DHW brazed/gasketed material
Brazed stainless steel
HEX heating alloy
AISI 316
HEX heating brazed/gasketed material
Brazed copper
Pressure nominal primary [bar]
16 bar
Product group
Small Stations
REACH Candidate List substances
Lead (CAS no. 7439-92-1)
Station size type
Type 3-2
Supply temperature construction [ËšC]
110 °C
Type
Akva Lux II VXi HWP
003H6735
AVQM, PN 16, DN 15, Flow rate [mÂł/h]: 0.03 - 0.90, External Thread, G 3/4 A, Mounting version: Free
003L1047
Return temperature limiters, FJVR Sensor, 10 °C - 50 °C, Sensor type: Built-in sensor
004H4608
Micro Plate heat exchanger, XB06H-1, Number of plates: 40
004U8232
Gaskets 3/4" EDPM (50pcs)
004U8634
Gasket 1" EDPM 282 (10 pcs)
082G3003
Electrical actuators, AMV 13, Supply voltage [V] AC: 230
084N1012
ESMT, Sensor type: Outdoor, Pt 1000
087H3040
ECL Comfort 310, LCD dot matrix, Supply voltage [V] AC: 207 - 244
087H3821
ECL Application keys, A237
087N0011
ESMC, Sensors
145H3879
Circulation set incl. pipe for mounting on site
